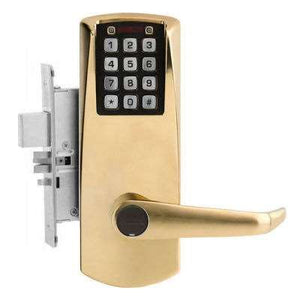

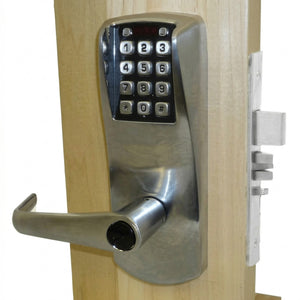

dormakaba E-Plex E206AXSLL

Keyless Mortise Lock w/ Auto Deadbolt

Reviews (2) | Customer Questions (3)

$558.77$574.15

The Kaba E-Plex E206AXSLL is a Heavy-duty electronic mortise lock with auto deadbolt to replace your current mortise lock. Able to support up to 100 codes, every one on your staff can have their own, and when someone moves on, instead of re-keying, simply delete their code in seconds. No more forgetting keys, no more propped open doors, and no more lock replacements.

SKU: E206AXSLL
Your Current Selections:
Your Current Selections:

Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

  • 100 Users Supported: Millions of possible code choices
  • 3 Operation Modes: PIN access, lockout, & passage
  • Lockout Mode:  De-activates all regular user and manager codes, excluding Master code
  • Passage Mode:  Toggle on/off, or pre-program to re-lock after a certain number of hours
  • Full-size ADA Lever:  Field reversible for left and right swing doors
  • Perfect for Wood and Metal Doors:  Installation screws for both included
  • No Electricity Necessary:  No need to run wires to door, lock runs on AA batteries.  Lock data/programming maintained if batteries fail
  • Program Via the Lock’s Keypad
  • Rugged Clutch Mechanism:  Ensures long life & durability
  • Four Authority Levels: Master, Manager, User and Service (Service users allowed only ‘one-time’ access, or access for 1-24 hours)
  • Auto-Locking Latch & Deadbolt:  Program into passage mode at any time by following command-sequence
  • Free Exiting at All Times with Inside Lever
  • Patented LectroBolt:  Ease of Installation
  • Retrofits ASM (American Standard Mortise) Lock-sets
  • Concealed Key Override:  Standard Kaba cylinder with Schlage “C” keyway & 2 back-up keys supplied.  See pick and bump proof, and I/C prep
  • Keypad Buzzer Volume:  Adjustable
  • 3-year Manufacturer Warranty;  Built-in warranty counter in lock memory
GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year. No more forgetting keys, no more propped open doors, and no more lock replacements.  Just fit this new Heavy-duty electronic mortise lock with auto deadbolt on your door in place of your current mortise lock, and start cutting virtual pass-keys, instead of metal ones.  Able to support up to 100 codes, every one on your staff can have their own, and when someone moves on, instead of re-keying, simply delete their code in seconds.  Transforming your access to keyless entry with the E-Plex 2000 mortise yields efficiencies, economic savings, and creates a stronger sense of security because this lock only knows to keep itself locked, unless someone with a valid code requests entrance, or an authorized individual sets the lock to code-free entry.  For these and many other reasons, the Kaba E-Plex 206A mortise auto lock works wonders as a first-class keyless entry system on virtually any wood or metal door machined for a mortise (86) cut-out.  All for a price anyone in this industry will tell you is unheard-of for electronic mortise solutions. Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.
Exterior Dimensions

8 15/16 (H) x 3 5/16 (W) x 2 3/16 (D) in.

Inside Dimensions

8 7/8 (H) x 3 1/4 (W) x 2 1/4 (D) in.

Door Thickness Minimum

1 3/4 in.

Door Thickness Maximum

2 1/4 in.

Door Handing

Reversible

Door Opening

Standard

Door Prep

Mortise, Through-Bolt Hole(s)

Door Stile Width

Minimum 5 in.

Handle Type

Lever Handle Door Locks

Access Type

Key, Keypad – Digits

Battery Type

AA

Battery Life

100,000 Cycles

Code Length

4 to 8 Digits

Code Capacity

100

Manufacturer

dormakaba

Brand

Kaba E-Plex

Lock Features

Audit Trail, Passage Mode

Locking Device

Mortise w/Autobolt

Construction

Solid cast exterior housing, Solid cast, ADA-compliant levers

Finish

Satin Chrome, Satin Brass

ANSI Rating

Grade 1 (Best)

BHMA Rating

Grade 1 (Best)

Authentication

Single Factor

Outside Operating Temperature Range

-31° to 151°F (-35° to 66°C)

Environmental

Indoor/Outdoor, Windstorm approved/certified

Weight

10 lbs

Warranty

3 Year Manufacturer

Share your thoughts!

4.5 out of 5 stars

2 reviews

Let us know what you think...

What others are saying

  1. Kaba E-Plex

    Douglas Whiteing (verified owner)

    So far so good. Easy installation and got all the codes setup for the employees. Saves our employees from getting locked out.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. KEYLESS MORTISE DOOR LOCK WITH AUTO DEADBOLT

    David (verified owner)

    The product is very solid and reliable. The only criticism I have is in regards to the instructions for flipping the direction of the mortise. It was not very helpful because it specified the need for a special clip to prevent a spring from falling out of place. Could not find any reference to this clip anywhere on the gokeyless website. Had to call the manufacturer’s technical support to get instructions for an alternative way by opening up the lock. They were extremely responsive and helpful. Now that it’s installed, very happy with the lock.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×

Login

Register

Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Answered by the admin

    This model can be programmed directly at the keypad without any software, or can be connected to the Kaba E-Plex software for management from a computer.

  2. Q Can this lock be used on a wrought iron door? answer now
    Asked by bill on November 7, 2017 4:56 AM
    A Installation on wrought iron doors can come with their challenges. If you have a gate style door you could install this lock with a weldable gate box to fit on the door. However, with a wrought iron door that is wood clad, we would need to ensure that the mortise prep has room for the American mortise size of 5 inches. European preps will not work with these locks. In cases like this, it is best for you to talk to our sales reps and send in pictures of the door so we can determine the best route for you. They can be reached at 937-247-9327 option 1.
  3. Q Can this lock be used with a fire pushbar answer now
    Asked by Jason Sheets on December 22, 2016 11:29 AM
    A

    This specific lock is not made for use with a pushbar.
