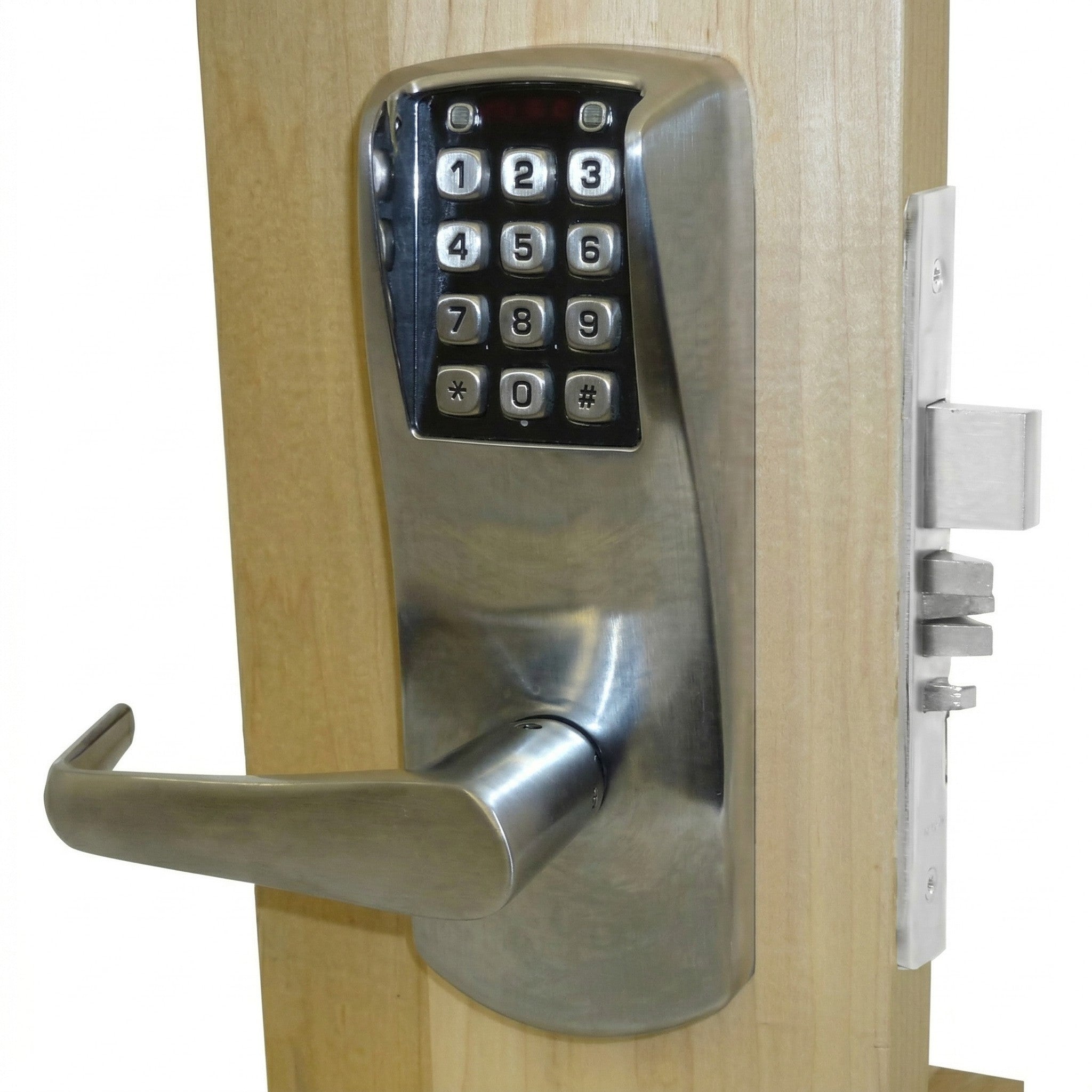

  • dormakaba E-Plex E206ALL626

    Keyless Mortise Lock w/ Auto Deadbolt

    SKU: E206ALL62641

    E-Plex



    The Kaba E-Plex E206ALL626 is a Heavy-duty electronic mortise lock with auto deadbolt to replace your current mortise lock. Able to support up to 100 codes, every one on your staff can have their own, and when someone moves on, instead of re-keying, simply delete their code in seconds. No more forgetting keys, no more propped open doors, and no more lock replacements.

    Quantity left : 1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $105.60

    • 100 Users Supported: Millions of possible code choices
    • Bump and Pick Proof:  May be ordered with key override
    • Satin Chrome Finish:  Satin brass available upon request
    • 3 Operation Modes: PIN access, lockout, & passage
    • Lockout Mode:  De-activates all regular user and manager codes, excluding Master code
    • Passage Mode:  Toggle on/off, or pre-program to re-lock after a certain number of hours
    • Full-size ADA Lever:  Field reversible for left and right swing doors
    • Perfect for Wood and Metal Doors:  Installation screws for both included
    • No Electricity Necessary:  No need to run wires to door, lock runs on AA batteries.  Lock data/programming maintained if batteries fail
    • Program Via the Lock’s Keypad
    • Rugged Clutch Mechanism:  Ensures long life & durability
    • Four Authority Levels: Master, Manager, User and Service (Service users allowed only ‘one-time’ access, or access for 1-24 hours)
    • Auto-Locking Latch & Deadbolt:  Program into passage mode at any time by following command-sequence
    • Free Exiting at All Times with Inside Lever
    • Patented LectroBolt:  Ease of Installation
    • Retrofits ASM (American Standard Mortise) Lock-sets
    • Pick & Bump Proof.  See standard keyed
    • Keypad Buzzer Volume:  Adjustable
    • 3-year Manufacturer Warranty;  Built-in warranty counter in lock memory

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.No more forgetting keys, no more propped open doors, and no more lock replacements.  Just fit this new Heavy-duty electronic mortise lock with auto deadbolt on your door in place of your current mortise lock, and start cutting virtual pass-keys, instead of metal ones.  Able to support up to 100 codes, every one on your staff can have their own, and when someone moves on, instead of re-keying, simply delete their code in seconds.  Transforming your access to keyless entry with the E-Plex 2000 auto mortise yields efficiencies, economic savings, and creates a stronger sense of security because this lock only knows to keep itself locked, unless someone with a valid code requests entrance, or an authorized individual sets the lock to code-free entry.  For these and many other reasons, the Kaba E-Plex E206A mortise lock works wonders as a first-class keyless entry system on virtually any wood or metal door machined for a mortise (86) cut-out.  All for a price anyone in this industry will tell you is unheard-of for electronic mortise solutions. Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing E-Plex Standard Software Implementation Kit (sold separately), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

    GoKeyless™ is a factory trained and authorized dormakaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Mortise w/Autobolt
    Brand E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 100,000 Cycles
    Door Prep Mortise, Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100

    Dimensions

    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 3/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 1/4 (W) x 2 1/4 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 3/16 (D) in.
    Weight 10 lbs
