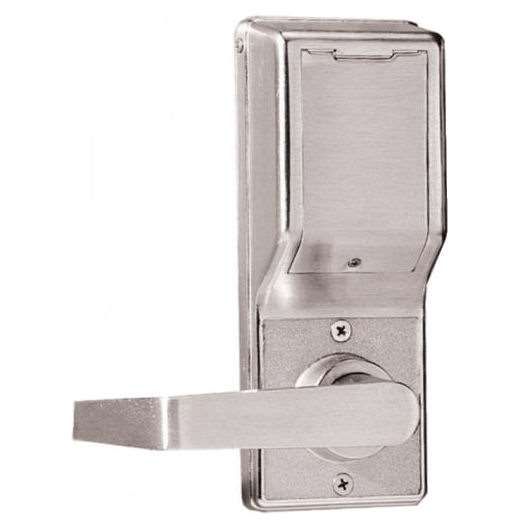

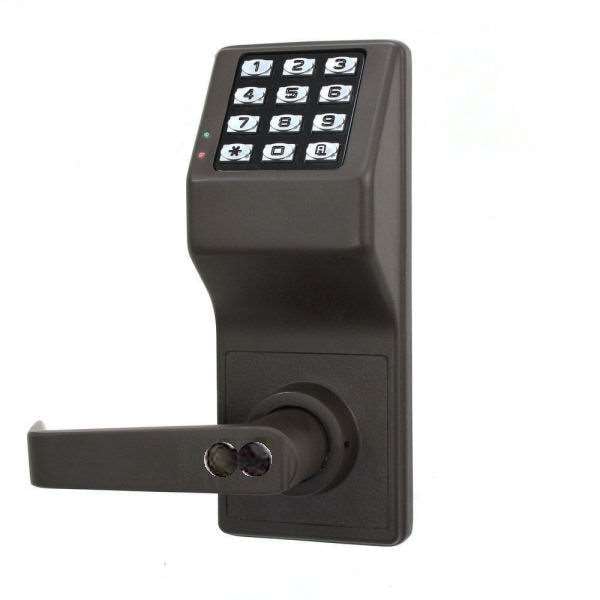

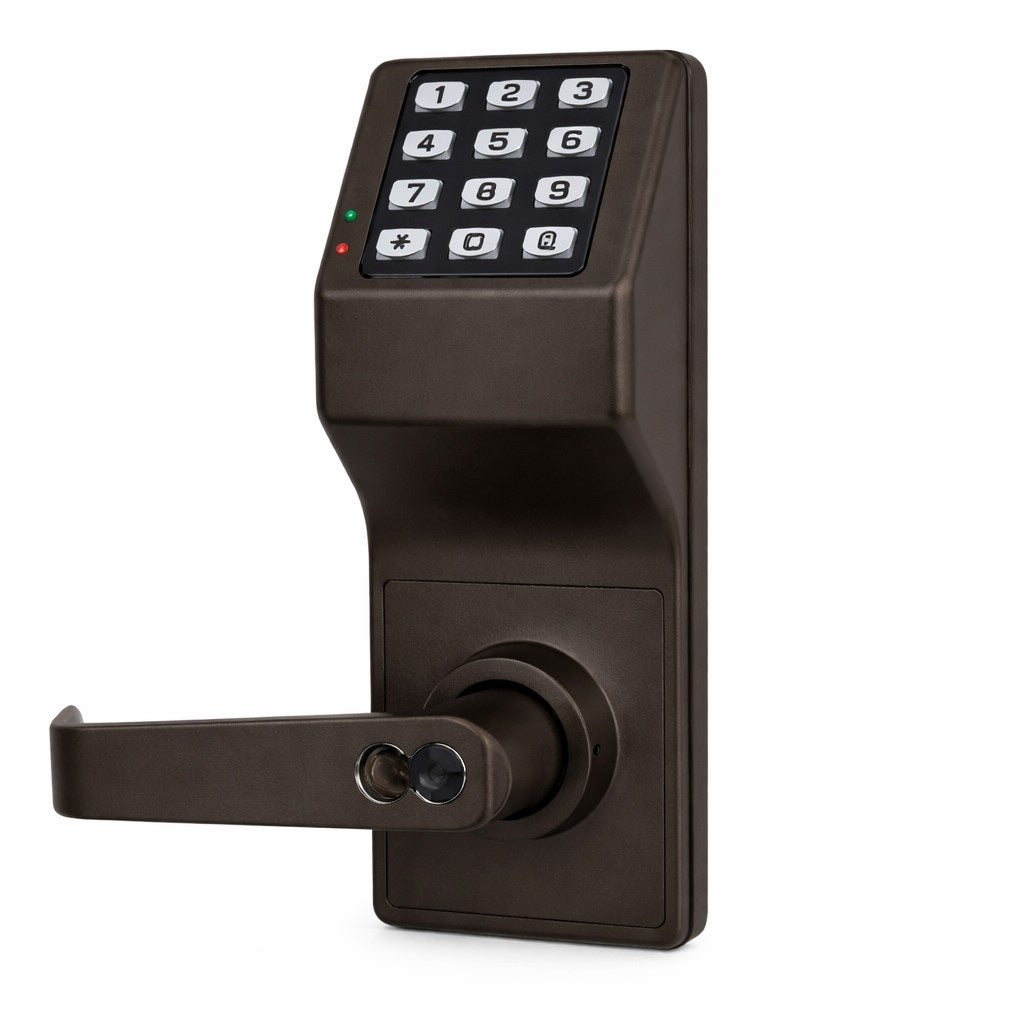

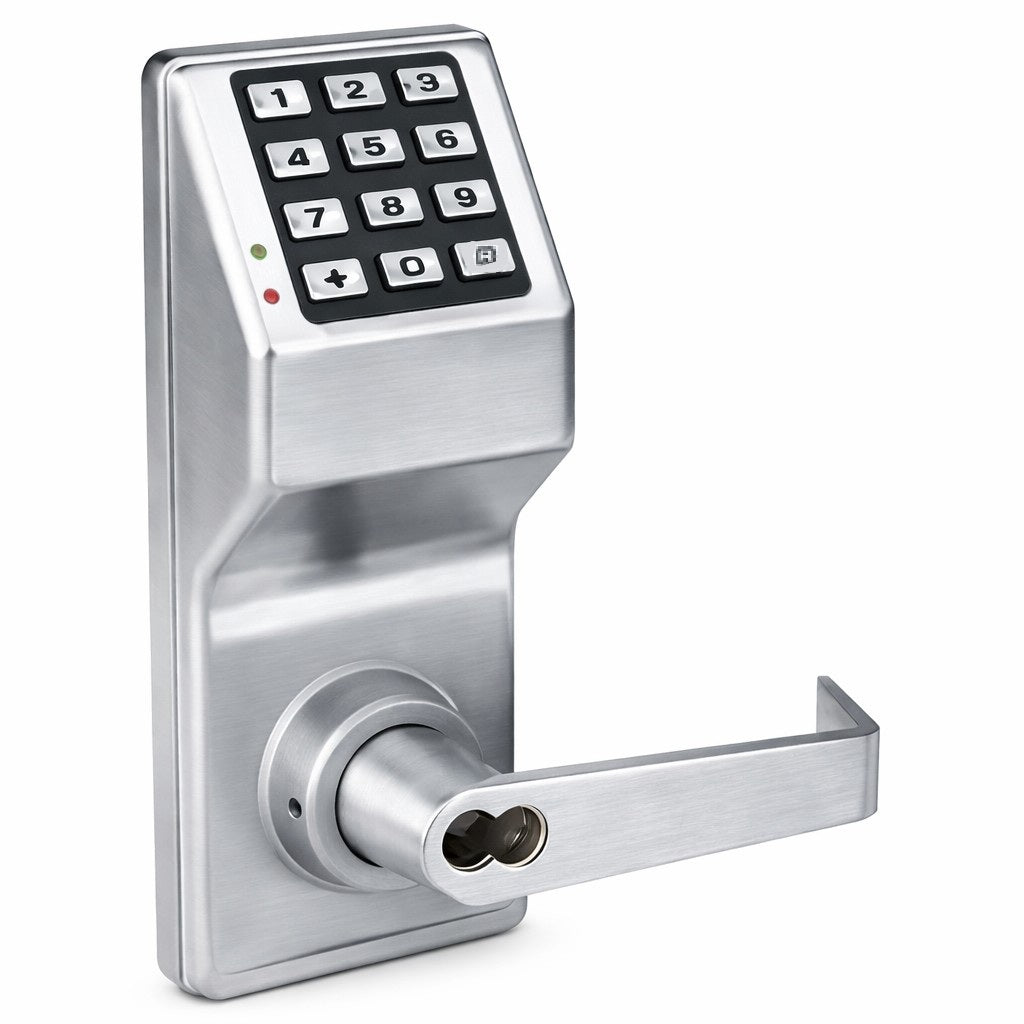

  • Trilogy T2 DL2700IC

    Electronic Battery Operated Digital Lock

    SKU: DL2700WPIC/26D

    Alarm Lock Trilogy

    The Trilogy DL2700IC removes the tedious process of managing and then re-keying keys when someone moves on. With scheduling and audit trail, you can set door access at a pre-determined time, and report on the lock's activity. Create group or individual user codes, master and management codes, passage codes, and emergency or service codes. Establish door schedules that best serve your opening and closing times, as well as staffing needs.
    Prepped for IC core, including Best and equivalents, Yale, Medeco, Corbin, Schlage, and Sargent.

    Key Override

    Quantity left : 6



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
    • Field reversible full size ADA lever
    • Perfect for wood and metal doors – installation screws for both included
    • Fingertip programming done at keypad
    • Rugged clutch mechanism insures long life & durability
    • 100 User Codes including: Master, 10 Manager, 90 User and 3 Service Codes.
    • Auto-locking, but may be programmed to passage mode
    • Always an instant, panic free exit with inside lever
    • New!  Remote Release Kit for ‘Buzz-In’
    • Easy to install.  Retrofits most cylindrical locksets and digital locks
    • Choose from 3 architectural finishes
    • Key override:  Prepped for IC Core, including Best and Equivalents, Yale, Medeco, Corbin, Schlage, and Sargent.  Best and Schlage IC locks generally ship same day, others may be subject to a lead time.  IC cores must be purchased separately at checkout.  You may use your own IC cores when you have them
    • Battery operation:  5 AA’s; appx. 120,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The premier commercial, pushbutton, cylindrical lockset that is installed in schools, retail stores, airports, offices, and hospitals.  Available in indoor and weatherproof outdoor models, this auto-locking keyless access system is completely stand-alone and vandal proof.  Lock is all metal with a 12 button operational interface.

    Need this lock with Audit Trail?  Order DL3200IC


    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 120,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)


    Code Length 3 to 6 Digits
    Code Capacity 100


    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 7.5 lbs
