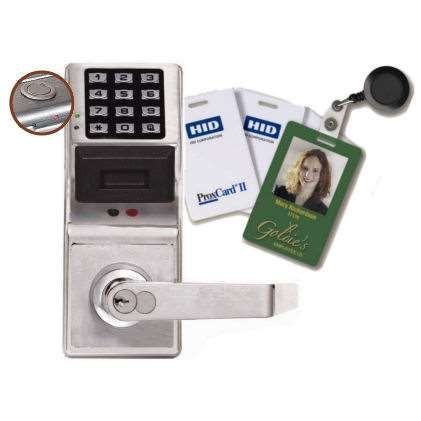

  • Trilogy PDL4100IC

    Proximity Lock with Lockout and Privacy

    SKU: PDL4100IC/26D

    Alarm Lock Trilogy



    The Trilogy PDL4100IC provides the extra security needed to possibly thwart an attack, or give the authorities precious additional seconds to arrive on the scene. Capable of authenticating entry by PIN, card, or both! Equipped with a privacy button on the back of the lock and a fingertip activated lockout button on the interior side of the door. Suitable for hospitals, schools, and more. Prepped for IC core, including Best and equivalents, Yale, Medeco, Corbin, Schlage, and Sargent.

    Key Override
    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $189.53

    • Heavy Duty, Grade 1 electronic PIN/Prox cylindrical latch privacy/lockout lock prepped for IC core
    • Compatible with any HID 125kHZ prox cards 26-48bit
    • Privacy/Lockout Feature:  Engaged by pushing button on interior lock body – assures lock cannot be opened from front-entry side.  During any privacy-session, the red LED on the outer, keypad-side of the door will flash to indicate that the room is occupied.  Privacy duration can be programmed to “time-out” after preset duration.
    • Programmable Residency feature to prevent accidental lockouts
    • Iconic bilingual Privacy and Residency Instructional Signs supplied with lock For use on inside door to give operational use, in English and Spanish language
    • Rugged Clutch Mechanism — Insures long life & durability to protect your investment
    • Access by card only, pin only, or highest security – card plus pin
    • Programming — Via lock’s keypad, or using Windows PC based software
    • Real-time Clock — Schedule up to 500 timed events, including holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
    • Users:  2000 — Master, manager, supervisor, and basic users
    • Enhanced Operation Modes — One-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
    • First Manager-in Scheduling – solves the snow day issue for schools (“First Person In” stops unauthorized persons from gaining access to doors set on timed auto-unlock)
    • WeatherPROOF performance
    • New!  Remote Release Kit for ‘Buzz-In’
    • Allowable Entry Time — Program from 3-15 seconds. Determines how long user has once they present prox card or pin before door relocks
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail — Time/Date stamp for a printable record of all electronic activity
    • Events logged to within 1 second of accuracy
    • 4 Time-out Functions — User may enable other users or unlock the lock for some time period without needing to return to the lock
    • Easy to install. Retrofits most cylindrical locksets and digital locks
    • Satin chrome finish. Premium finishes available upon request
    • Key Override — Accepts 6 or 7 pin cores from Arrow, Best, Falcon, or KSP, and removable cores from Schlage, Medeco, Yale, Sargent, Medeco, and Corbin (use your own cores in the lock, or you may order one from us here).  Best IC Prep model generally ships same day, specially prepped IC models subject to factory lead time
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure”
    • Battery Operation:  5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup (9V’s sold separately)
    • Thick doors greater than 1 7/8″ please call 1-937-247-9327
    • Warranty:  2 year manufacturer

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Walk into any hospital, mall, or school today, and you are bound to see a Trilogy electronic pushbutton lock.  School administrators, hospital security directors, and facility managers around the country rely more and more on Trilogy locks because these products are known for their dependability as a stand alone access control solution.  Alarm Lock’s new Grade 1 BHMA certified and ADA compliant Trilogy PDL4100IC lock is fast becoming the preferred model for restricting access at many areas throughout these properties.

    Trilogy Locks Help Hospitals Minimize Loss & Guarantee Privacy

    Capable of authenticating entry by PIN only, card only, or for highest security, PIN + card, healthcare facilities find the Trilogy PDL4100IC to meet HIPAA regulations for the protection of hospital equipment, patient files, and staff records.  The medical record closets, medication storage areas, and restricted areas which in the past were vulnerable to theft or fraud because of keys and left open doors are now safeguarded with Trilogy’s time-automated locking, and date and time audit trail reports.  Equipped with a privacy button on the back of the lock, the Trilogy PDL4100IC also allows nurses, doctors, and other hospital employees to lockout unauthorized users and feel more secure when they’re in the staff dressing rooms, sleeping rooms, file rooms, or single occupancy restrooms.  This way the privacy of the staff member is ensured.  PIN, or PIN/Prox access doesn’t resume until the privacy session is deactivated, the door is opened from the inside, or the session expires following a pre-programmed schedule.

    Schools Pass the Test on Classroom Safety with Trilogy Locks

    At today’s schools, there is increasing pressure from parents and teachers to better secure the classrooms.  With vandalism and shootings at the forefront of concerns for campuses, it is imperative to invest in a professional, field tested, and easy to use access control lock on the classroom, and multi-purpose room doors, as well as other area doors throughout the school to protect faculty, the students, and school personnel.  The PDL4100 provides the extra security needed to possibly thwart an attack, or give the authorities precious additional seconds to arrive on the scene.  Without having to open the door, and without any special training or knowledge, a student/teacher of any age can quickly press the fingertip activated lockout button on the interior side of the door to lockout all unauthorized users.  What this does is disables the lock’s free passage mode (even when lock is scheduled for ‘free passage’), and disables general user’s PIN/card from gaining access.  This can buy time in a crisis by making it several steps more difficult for someone to get into the classroom.  When the trouble has passed, a lockdown-override code may be used to re-enable authorized staff to bypass the lockdown function at anytime.  Master and management code/card holders with command (11) rights always have instant access to a Trilogy protected space, and is why we recommend limiting this right to an exclusive few individuals.  The lockdown override command sequence is also helpful in the event a student accidentally presses the lockout button.

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Event Scheduling 500, Automated Unlock/Lock
    Lock Features Old Audit Trail, Passage Mode, Privacy, Scheduling, Timed Codes
    Radio Frequency 125 kHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Reader Type Prox Card/Fob
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 60,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Fire Rating UL 3 hr. latch
    Users 2,000

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 2 3/8 (D) in.
    Inside Dimensions ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 2 3/8 (D) in.
    Weight 10 lbs

    TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
    *Basic email support only. Additional support time available for a fee.

    You are not comparing apples to apples when shopping for Trilogy locks online.

    GoKeyless is a full service company and backs up its sales support with product and technical support.

    What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

    In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

    Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

    Technical Support Hours: M-F 9am-5pm EST
