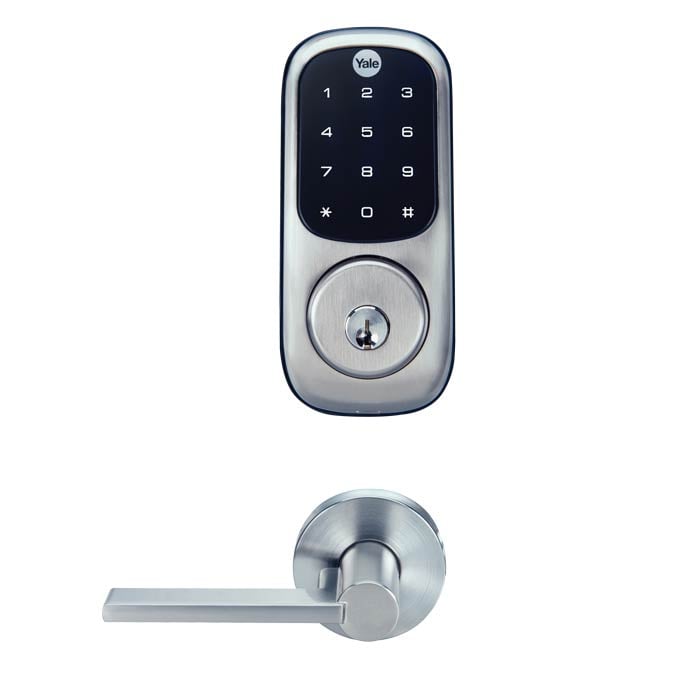

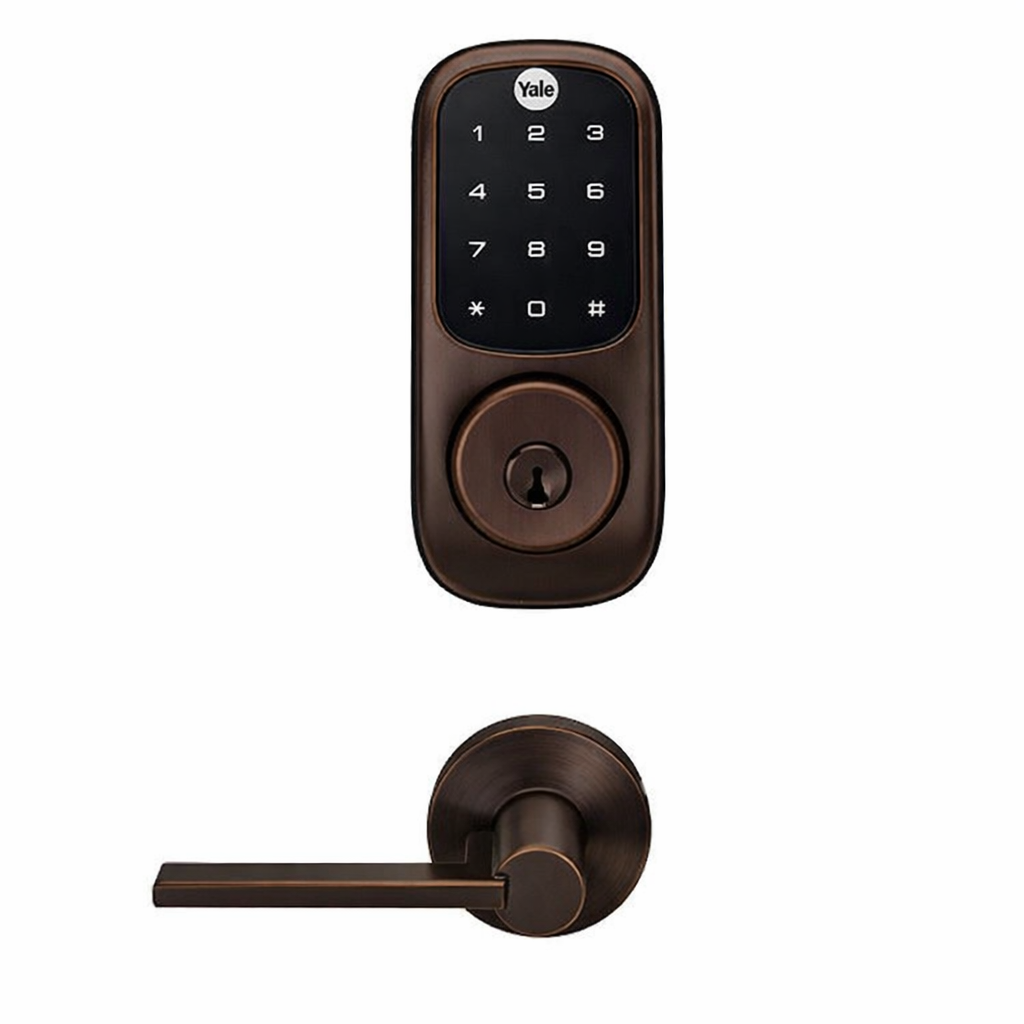

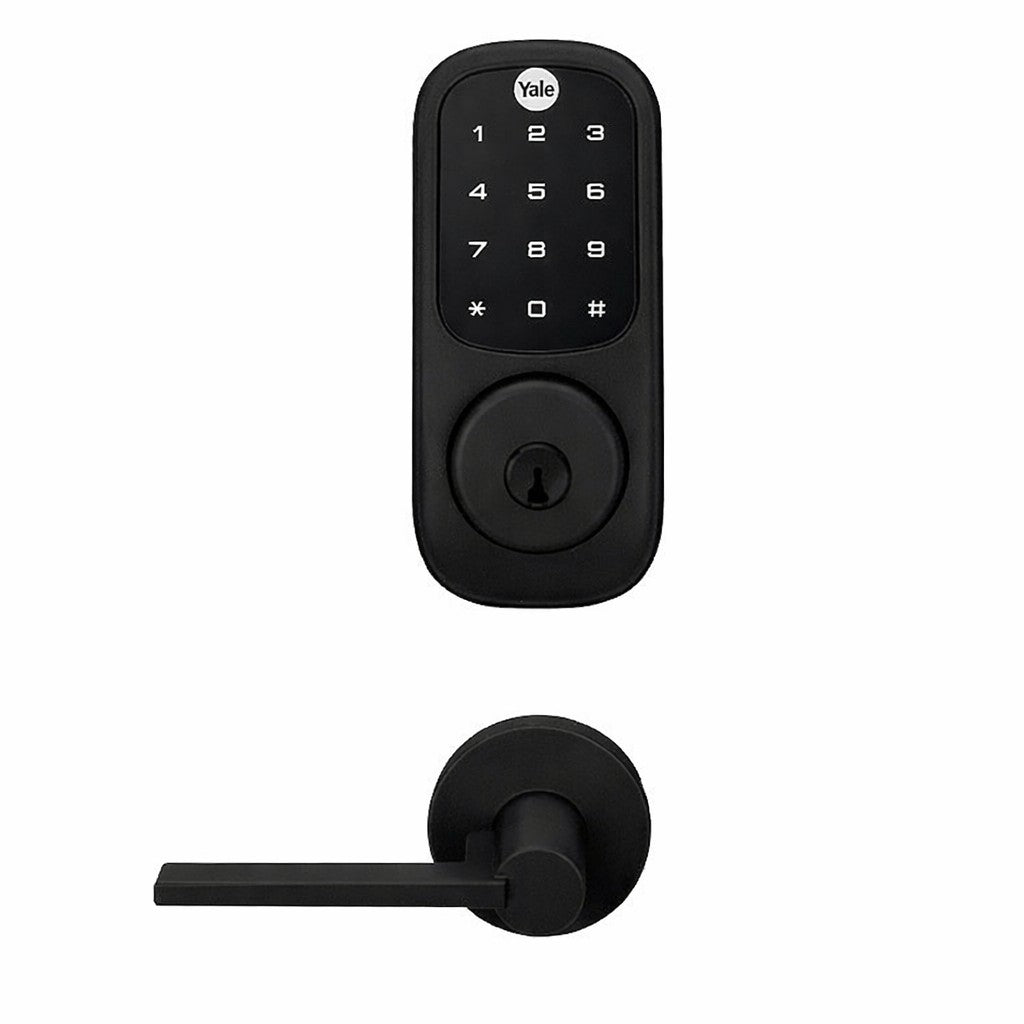

Electronic Touchscreen Interconnected Deadbolt
SKU: NTC623-ACC-AU-4-KD-619
$872.00 $462.00 SAVE 47%

Bring cloud-based access to your deadbolt. The Assa Abloy Accentra NTC623 Electronic Touchscreen Interconnected Deadbolt provides keyless access, auto-relocking, and Privacy mode to your building entry points.
ASSA ABLOY Accentra NTC623 eliminates the need for keys by entering your personal code on the capacitive touchscreen. The motorized tapered deadbolt ensures that no one can break in by force or tamper with the lock once engaged. The auto-relocking feature locks the deadbolt after 30 seconds have passed, helpful if you haven’t had your morning pick-me-up or you are running late for work, just make sure you close the door! Turn on Privacy mode with one touch to start that TV binge you’ve been wanting all week. Setup is easy with voice assisted programming built into the lock. Low battery and lockout indicators let you know to change the batteries or if you are locked out due to too many code entry errors. With a solid metal housing and rubber seal, doors won’t be scratched up during installation and the lock will be protected against the elements.
Designed to integrate with Assa Abloy Accentra locks and nexTouch brand locks, Accentra allows admins to oversee multiple properties, employees, and site access from one centralized platform.
| Manufacturer | Yale |
|---|---|
| ANSI Rating | Grade 2 (Better) |
| Battery Type | 4 AA |
| BHMA Rating | Grade 2 (Better) |
| Finish | Dark Oxidized Satin Bronze|Satin Nickel|Oil Rubbed Bronze|Bright Brass |
| Lock Features | Audit Trail, Auto Relocking, No Tour, Privacy, Remote Control, Temporary Codes, Timed Codes |
| Solution | Electronic |
| Warranty | 1 Year Finish and Electronics|3 Year Mechanical |
| Access Type | Key Keypad - Digits Smart Card/Fob |
| Locking Device | Interconnected |
| Brand | Assa Abloy Accentra |
| Battery Temperature Range | -14°F to 131°F (-10°C to 55°C) |
| Door Handing | Non-Handed |
|---|---|
| Battery Life | 1 Year |
| Door Prep | 2 1/8 in. diameter face hole|Edge Bore: 1 in. |
| Door Opening | ["Standard"] |
| Code Length | 4 to 8 Digits |
|---|---|
| Code Capacity | 25 |
| Credential Format | 125 kHz Proximity|13.56 MHz Smart Technology |
| Credential Type | Card|Fob |
| Keying | Key Different|Master Key |
| Exterior Dimensions | 10.625 (H) x 2.625 (W) x 2.5 (D) in. |
|---|---|
| Door Thickness Minimum | 1 3/8 in. |
| Door Thickness Maximum | 2 1/4 in. |
| Backset | 2 3/4 in.|2 3/8 in. |
| Exterior Dimensions | 10.625 (H) x 2.625 (W) x 2.5 (D) in. |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Weight | 5 lbs |
