  • KitLock KL1000 Vertical

    Electronic Cabinet Lock

    SKU: KL1006 Kit V/SG



    Digital keyless solution for lockers and cabinets. No more lost keys, make the switch to simple four-digit keypad access. Go keyless with KitLock.

    Finish

    Quantity left : 39

    • 11 Individual round buttons
    • 8 digit Master Code
    • 8 digit Sub-Master Code
    • 4 digit User Code
    • 6 digit Technician Code
    • Private or public function
    • No Wires: Battery powered with 2 x AAA
    • Low Battery: Red flashing LED flashing; lock will open 100 more times after this signal is initiated
    • Non-volatile memory retains settings when batteries are changed
    • Multiple Finishes: Choose from silver grey, and black
    • Easy fit
    • Vertical, horizontal models
    • Battery override; PP3 battery can be placed against the external contacts and using the master code to gain entry

    Technical Information

    • Cam Fixing Point: 8mm (5/16”) square
    • Door Thickness: KitLock 1000 is supplied ready to fit to doors up to 19mm (3/4”) thick. For doors 6.35mm (1/4”), 12.7mm (1/2”), 25mm (1”), or 28.5mm (1-1/8″) thick, you will need to install the spare spindle provided. Save time and let us do this for you with our Custom Shell Size service.
    • IP Rating: IP54 (when fitted with optional gasket)

    Downloads

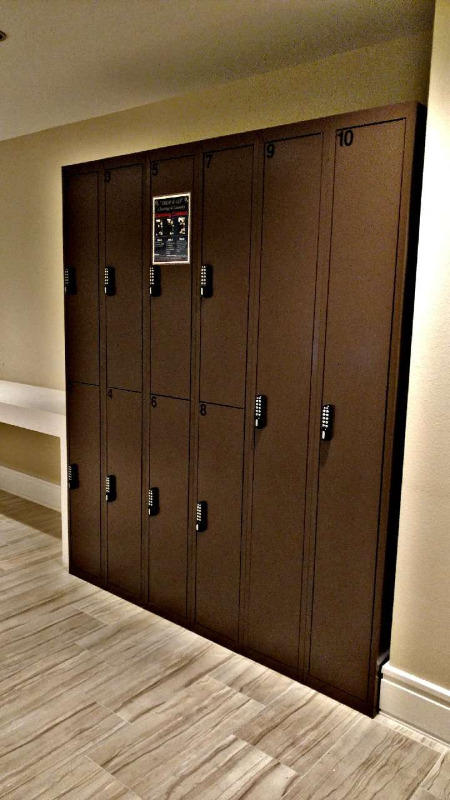

    KitLock 1000 are a quick retrofit for keyed cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. The keyless locks are easy to fit, taking just a few minutes to remove the existing cam lock and then making an additional top fixing for the new lock. KL1000 can also be fitted to a locker or cabinet that does not have an existing locking device already fitted, giving the user immediate, simple, keypad access without the hassle of keys! Once in place the lock will perform 15,000 openings on just two AAA batteries. Common uses include cabinets, lockers, medical carts, gun boxes, safes for offices, schools, warehouses, hospitals, care homes, nurseries, hotels, leisure facilities, and the home.

    Basic

    Manufacturer Codelocks
    Battery Type AAA
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Cam
    Brand KitLock

    Door requirements

    Battery Life 15,000 Cycles

    Security

    Code Length 4 digits

    Dimensions

    Exterior Dimensions 5 3/8 in. (136mm) (H) x 1 1/4 in. (32mm) (W) x 1 3/16 in. (30mm) (D) to top of handle
    Door Thickness Minimum 1/4 in.
    Door Thickness Maximum 1 1/8 in.
    Exterior Dimensions 5 3/8 in. (136mm) (H) x 1 1/4 in. (32mm) (W) x 1 3/16 in. (30mm) (D) to top of handle
    Weight 1.5 lbs
    Customer Reviews
    4.5 Based on 28 Reviews
    5 ★
    79%
    22
    4 ★
    14%
    4
    3 ★
    4%
    1
    2 ★
    3%
    1
    1 ★
    0%
    0
    Customer Photos
    Write a Review Ask a Question

    Thank you for submitting a review!

    Your input is very much appreciated. Share it with your friends so they can enjoy it too!

    Filter Reviews:
    LR
    05/11/2025
    Liz R.
    United States

    Reliable

    This keylock is very reliable to use. We have 2 of them and they last years and years. The only difficult thing is understanding the programming. The printed directions are tricky, but online support is available.

    RA
    03/01/2025
    Remmie A.
    United States

    Satisfied.

    Good solution for patient lockers.

    KN
    02/09/2025
    Kym N.
    United States

    can’t use it

    can’t use it, have tried twice to initiate a return and no one has gotten in touch with me. Please help me return it

    DG
    10/22/2024
    Daniel G.
    United States

    EASY TO INSTALL

    EASY TO PURCHASE EASY TO INSTALL AND EASY TO USE

    LU
    07/08/2024
    Lori U.
    United States

    KL 1000 Vertical

    Very easy to install and user friendly with a clean look.
