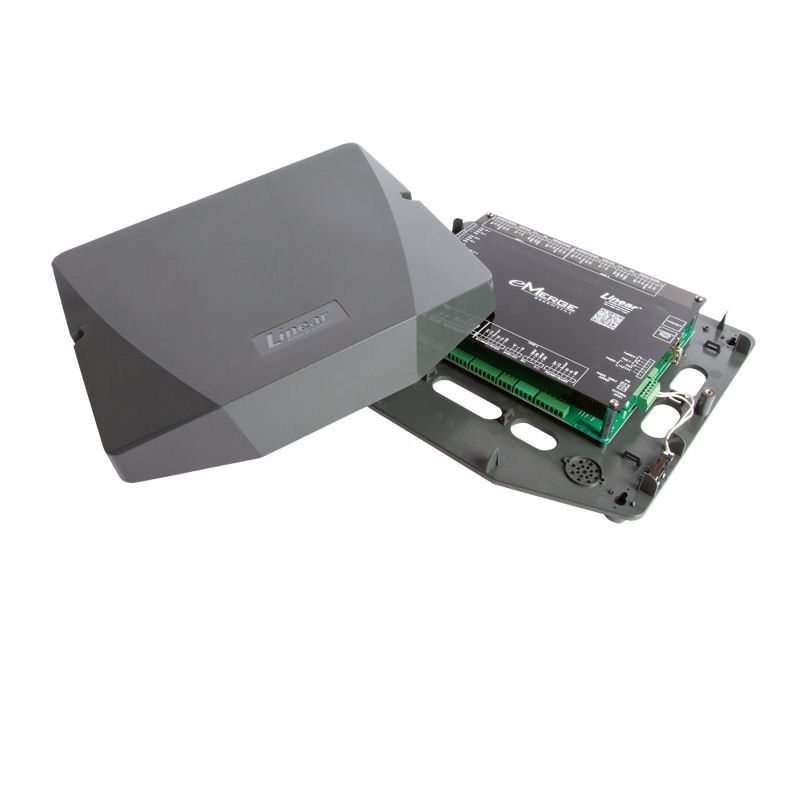

  • Linear eMerge Essential ES-1C

    1-Door Access Control Platform

    SKU: ES-1C

    eMerge and Linear



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $117.05

    Call For Price
    • Shared hardware and software architecture across all eMerge E3-Series means easy upgrades and expansion
    • Reliable, IT-friendly embedded Linux operating system eliminates:  Virus / spyware attacks; Operating System update dependency
    • eMerge Essential supplies the right amount of access control businesses need:  Starts at 1-door / 2-reader capacity with out-of-the box expansion capability to 4-doors / 8-readers
    • License key-based scalability (No additional hardware is needed to expand to 2, 3, or 4 doors)
    • Intuitive quick-start wizard allows for ultra-fast setup, saves hours of time versus traditional systems
    • Browser-based management enables system status and updates from any place, with any browser, on any operating system
    • User defined data fields – 5
    • Simultaneous system users – 8
    • 25 Access levels
    • Up to 8 readers can be used
    • Up to 15,000 Online Transactions
    • Up to 8,000 Access cards
    • Up to 1,000 cardholders
    • Up to 12 cards per person
    • Up to 32 card formats
    • Program up to 30 holidays
    • Easily scalable via software upgrade to higher-capacity E3-Series eMerge systems
    • Small footprint ruggedized plastic enclosure
    • UL 294 Certified
    • Includes ODBC-compliant MySQL database with API
    • Model ES-1C. Order p/n: 620-100151

    Hardware Features

    • 100% solid state components for extended service life
    • High-speed processor handles multiple simultaneous users and more than 30 transactions per second
    • Integrated tamper switch and inputs / outputs for additional functionality
    • Optional Power over Ethernet (PoE) available (allows for backup power through a UPS)

    Software Features

    • One common software for all platforms, based on Linear’s industry leading access control software
    • Dashboard displays full system status at a glance including: Event and activity log; Customizable door diagrams/floor plans with factory default templates
    • Time-saving and convenient features: – Integrated card decoder – CSV flat file database import – Dynamic event filtering – Built in audit-trail – Automatic daily data backup to Micro SD or FTP-based storage – Usable from iPhone, iPad, Android or other mobile devices – E-mail, text message notifications – Simple, easy-to-use predefined reports – Built-in documentation library
    • Optional software updates for new feature and product enhancements

    Important – Power supply sold separately

    Linear

    The allure of this scalable 1-door access control system from Linear strikes at the heart of why many small businesses and facilities for so long have chosen to forego more advanced and better security. With eMerge Essential you're able to leverage your existing network infrastructure to deploy an entry-level, easy-to-use, expandable access system to control when and who can enter, and manage the entire application from any device, both locally and remotely. Backed by decades of experience, the full-featured software included with your self-contained hardware controller offers the type of programming you'd expect to find in systems for larger application. The magic is in how simple Linear makes it to get up and running and start using it. After placing eMerge on your network, open your favorite web browser, type in the web address, and follow the setup wizard. Once you connect your door reader and electric lock (strike, or maglock), you can create access levels, user schedules, and begin issuing credentials. The Linear P-300HA is commonly used to control access with cards, while the Linear IEI SSW-iLW, and Prox.Pad give you additional options. A separate power supply is required, and an optional POE module is also available. The eMerge Essential appliance includes a software license for 1-door, up-to 2 readers, and 1,000 users. Start with a front entry door, or the employee back door, and then as you need to, simply purchase an additional software key (key only / key + reader) to expand to up to 4 access points. For facilities with larger user populations, and/or the need to secure additional doors, upgrade licenses are available. You don't need to tear out what you have or purchase more controller hardware or expansion modules. The blending of a seamless scale-up with the innovation and reliability of the product make it easy to see the unprecedented value eMerge delivers.

    Basic

    Manufacturer Nortek Security & Control
    Inputs Up to 12 / plus 2 digital
    Memory 512MB DDR2 (333MHz)
    Operating System Embedded Linux
    Power 12V DC
    Storage Micro SD Storage Media Supplied
    Warranty 1 Year Manufacturer
    Brand eMerge
    Linear

    Door requirements

    Security

    Dimensions

    Dimensions 12.25 (W) x 11.1 (H) x 2.23 (D) in. (31.1 cm x 28.2 cm x 5.7 cm)
    Weight 5.25 lbs
