  • FEIG CPR50.10E HF

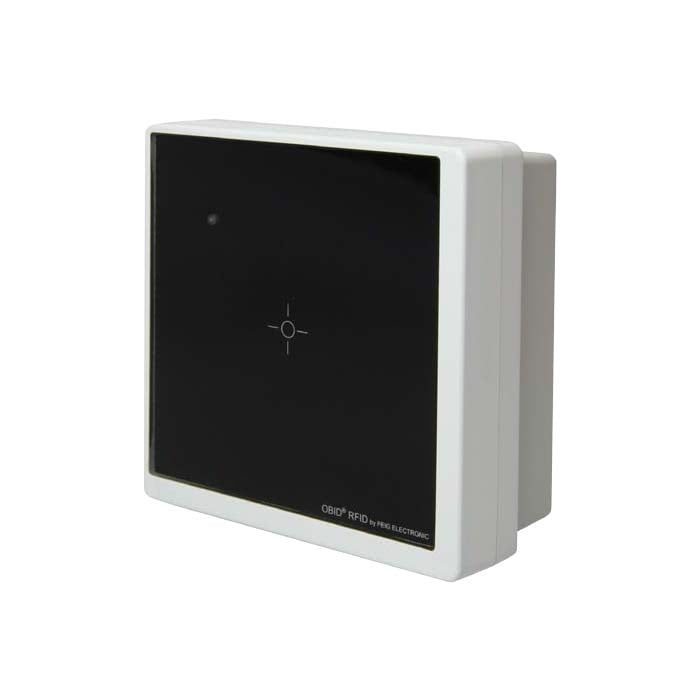

    IP-based Stationary RFID Card Reader

    SKU: CPR50.10

    FEIG Electronic



    The cool way to get carded. The FEIG CPR50.10E HF IP-based Stationary Card Reader provides access control, time and attendance and electronic ticketing to your system. This wall mountable POE card reader communicates with NFC-devices and integrates into existing LAN Networks.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $89.86

    Call For Price
    • RFID card reader for access control, time and attendance, and electronic ticketing systems – All-in-one model available
    • Wall fastening
    • Fast 10BASE-T/100BASE-TX Ethernet Interface
    • Supports NFC applications
    • Power over Ethernet (PoE)
    • Encrypted data transfer via Ethernet
    • Operating modes “Polling Mode“ and “Notification Mode“
    • Suitable for indoor and outdoor use (IP54)
    • Optional: External relay

    The FEIG CPR50.10E HF IP-based Stationary Card Reader provides access control, time and attendance and electronic ticketing to your access control system. Suitable for installation in commercial, retail, and industrial settings. Ideal applications include parking entrances, lobbies, front gates and more. This wall mountable POE card reader communicates with NFC-devices, integrating into existing LAN Networks. Power over Ethernet devices allow for a faster, more economical and secure installation process as there is no expensive electrical hard wiring to be done. Data transfers between the card reader and host is secure and encrypted using 128 bit AES algorithm. Setting the device to either ISO-Host mode “Polling-Mode” or “Notification-Mode“ reduces data traffic between the card reader and the host to a minimum, creating less strain on the network. The host system needs only to initialize a data transfer if the card reader has reported a transponder. Accepts mifare® classic, UltraLight, DESfire, Smart MX, and most other credential type cards.

    Basic

    Manufacturer FEIG Electronics
    Color White
    Power POE
    Radio Frequency 13.56 MHz
    Brand FEIG Electronic

    Door requirements

    Security

    Credential Format 13.56 MHz Smart Technology, MIFARE Classic, MIFARE Desfire, MIFARE Ultralite
    Credential Type Card
    Wireless Protocol Advanced Encryption Standard (AES), 128-bit, TCP/IP

    Dimensions

    Dimensions Card Reader: 3.31 (H) x 3.31 (W) x 0.87 (D) in., Wall-mounted Housing: 3.06 (H) x 3.06 (W) x 0.71 (D) in.
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight 5.3 oz.

    Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

    As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

    RFID hardware for short-range solutions (HF)
    RFID hardware for long-range solutions (UHF)
    Software myAXXESS Manager for administration of access authorizations
    Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

    EASY SYSTEM MANAGEMENT
    The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

    HIGH SECURITY LEVEL
    The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

    ADMINISTRATION AND MANAGEMENT
    User Management

    Management of users and transponders
    Assignment of users to user groups
    Import of user lists and old projects
    Export of user lists
    Access Right Management

    Managing access rights on single user and single door/barrier level or on user group and area level
    Easy managing of access rights with one general map
    Import of user lists and old projects
    Export of user lists
    Door / Barrier Management

    Management of doors / barriers and readers
    Easy reader configuration
    Assignment of doors or barriers to areas
    Event list viewer
    Time Model Management

    Creating own time models from 15 different, self-defined time periods
    Holiday Management

    List of self-defined holidays
    Special access rights for holidays
    This software is FREE with No monthly subscription.
