  • FEIG ID CTF-U

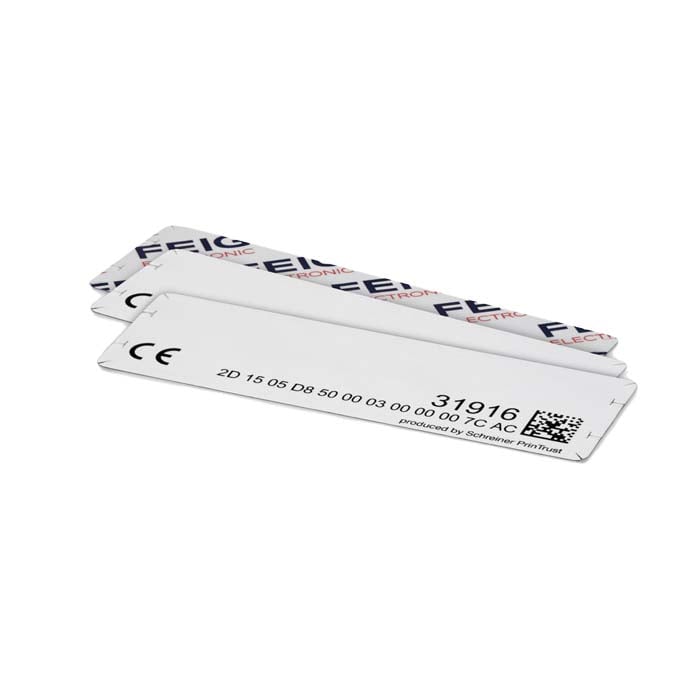

    UHF Windshield RFID Transponder (Pack of 10)

    SKU: 3271.001.00

    FEIG Electronic



    Drive up access. The FEIG ID CTF-U UHF Windshield Transponder provides passive, maintenance-free UHF access for long range access control, tolling, parking management and more. Suitable for all common windshields. Supported by myAXXESS management software.

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $24.31

    Call For Price
    • Pack of 10
    • For Long Range Applications (Access Control, Tolling, Parking Management, Fleet Management etc.)
    • Self-adhesive for easy installation on the windshield inside the vehicle
    • Encoded with consecutive, unique serial number
    • Suitable for all common windshields
    • Secure variant with Copy and Counterfeit Protection
    • High quality – UV and temperature resistant
    • Long life – no battery required
    • Pairs with FEIG MAX U500i Standalone UHF Reader

    myAXXESS Manager

    • Management of doors and barriers in one project
    • Easy assigning and managing of access rights
    • Secure access control based on secure transponder technologies like Mifare DESFire and UCODE DNA
    • Desktop readers for personalization of transponders available (ID ISC.MRU102, ID CPR40.30)
    • Supports programming of ID MAX50.10, ID MAX.U1002 and MAX.U500i
    • Reading of event and log data from access control readers
    • FREE software – NO monthly subscription required

    The FEIG ID CTF-U UHF Windshield Transponder provides passive, maintenance-free UHF transponders for long range  access control, tolling, parking management and more. Suitable for all common windshields. Supported by myAXXESS management software (see tab). These UHF transponders are self-adhesive and simple to install, just peel off and apply to the inside of the windshield. Each are encoded with consecutive, unique serial numbers. Secure variants provide copy and counterfeit protection. No batteries are required and each transponder has high quality UV and temperature resistant protection.

    Basic

    Manufacturer FEIG Electronics
    Memory 2048 Bit
    Radio Frequency 860 MHz - 960 MHz
    Brand FEIG Electronic

    Door requirements

    Security

    Credential Type Card

    Dimensions

    Dimensions 1 (H) x 3.15 (W) x 0.01 (D) in.
    Temperature Range -58°F to 185°F (-50° C to +85° C)

    Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

    As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

    RFID hardware for short-range solutions (HF)
    RFID hardware for long-range solutions (UHF)
    Software myAXXESS Manager for administration of access authorizations
    Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

    EASY SYSTEM MANAGEMENT
    The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

    HIGH SECURITY LEVEL
    The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

    ADMINISTRATION AND MANAGEMENT
    User Management

    Management of users and transponders
    Assignment of users to user groups
    Import of user lists and old projects
    Export of user lists
    Access Right Management

    Managing access rights on single user and single door/barrier level or on user group and area level
    Easy managing of access rights with one general map
    Import of user lists and old projects
    Export of user lists
    Door / Barrier Management

    Management of doors / barriers and readers
    Easy reader configuration
    Assignment of doors or barriers to areas
    Event list viewer
    Time Model Management

    Creating own time models from 15 different, self-defined time periods
    Holiday Management

    List of self-defined holidays
    Special access rights for holidays
    This software is FREE with No monthly subscription.
