  • FEIG LRU500i BD

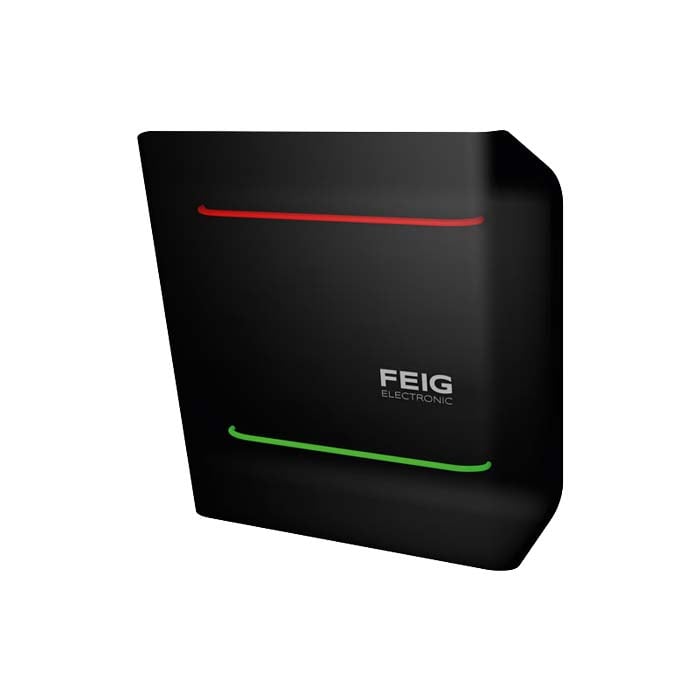

    Compact Long Range UHF RFID Reader

    SKU: 5117.000.10

    FEIG Electronic

    Check yourself at the gate. The FEIG LRU500i BD Long Range UHF Reader provides a compact solution for vehicle identification and parking access control. Ideal for airports, universities, gated communities and more. Operates on the Wiegand interface protocol.

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • RFID UHF Long Range Reader with integrated antenna and signal light – Standalone model available
    • Circular-polarized antenna for any transponder orientation

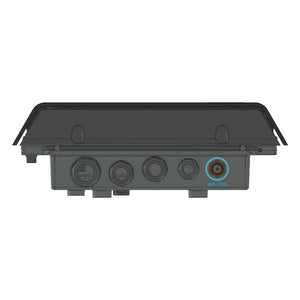

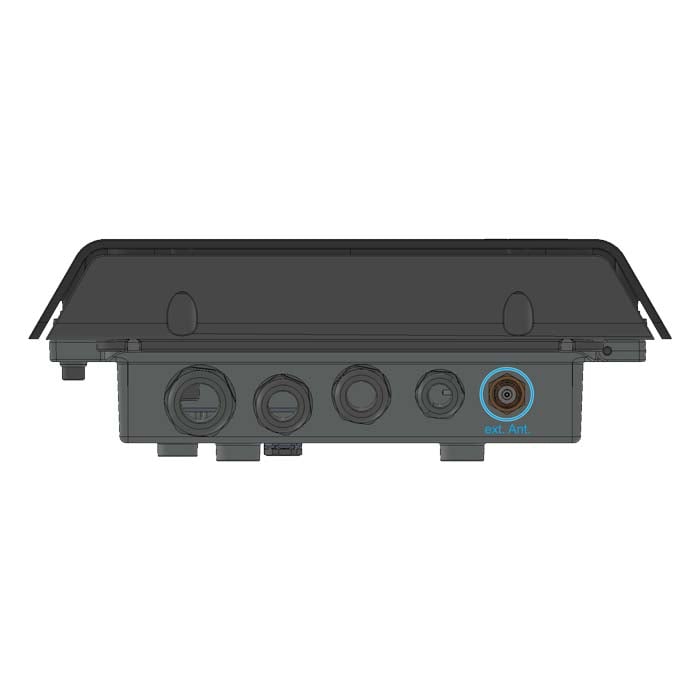

    • Antenna port for additional external antenna for 2-lane applications or implementing gate and tunnel applications
    • Up to 32ft (10m) read range for Automatic Vehicle Identification (AVI)
    • Robust and compact housing for indoor and outdoor use (IP67)
    • Integrated signal light (red/green)
    • Secure Key Storage for application keys
    • Fast and easy mounting and installation
    • Up to 2 W ERP transmitting power
    • Wiegand, RS485, and USB interface
    • UHF Windshield Transponders for gated access control available
    • Reader able to operate with various other tag manufacturers as long as they are compliant to the ISO standards listed


    • Airports
    • Universities
    • Gated communities
    • Employee parking lots
    • Corporate driveways
    • Authoritative (Police, Government)
    • Logistical
    • Other closed facilities that require perimeter protection

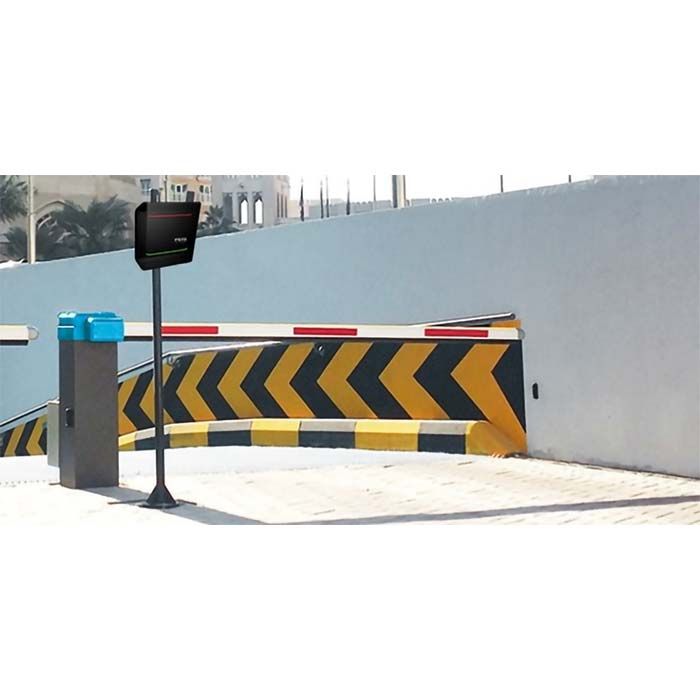

    The FEIG LRU500i BD Compact Long Range UHF RFID Reader provides a compact solution for vehicle identification and parking access control. Ideal for airports, universities, gated communities and more. This device is a compact UHF Vehicle Access Control Reader combining a UHF Long Range Reader with an integrated antenna and a signal light. When installed next to a barrier, gate or bollard, this allows vehicles to conveniently enter the parking area without the need of stopping at the entry.

    Vehicle identification is simple by using passive, maintenance-free UHF transponders (sold separately) which can be stuck behind the windshield of the vehicle to allow or deny access. This allows for a secure authentication of detected transponders and prohibits access of transponders with cloned serial numbers.


    Manufacturer FEIG Electronics
    Color Black
    Power 12/24 VDC
    Radio Frequency 902 MHz up to 928 MHz
    Brand FEIG Electronic

    Door requirements


    Users Unlimited with Software


    Dimensions 11.4 (H) x 11.4 (W) x 3.9 (D) in.
    Storage Temperature Range -13°F to 185°F (-25°C to 85°C)
    Weight 6.17 lbs

    Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

    As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

    RFID hardware for short-range solutions (HF)
    RFID hardware for long-range solutions (UHF)
    Software myAXXESS Manager for administration of access authorizations
    Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

    The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

    The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

    User Management

    Management of users and transponders
    Assignment of users to user groups
    Import of user lists and old projects
    Export of user lists
    Access Right Management

    Managing access rights on single user and single door/barrier level or on user group and area level
    Easy managing of access rights with one general map
    Import of user lists and old projects
    Export of user lists
    Door / Barrier Management

    Management of doors / barriers and readers
    Easy reader configuration
    Assignment of doors or barriers to areas
    Event list viewer
    Time Model Management

    Creating own time models from 15 different, self-defined time periods
    Holiday Management

    List of self-defined holidays
    Special access rights for holidays
    This software is FREE with No monthly subscription.
