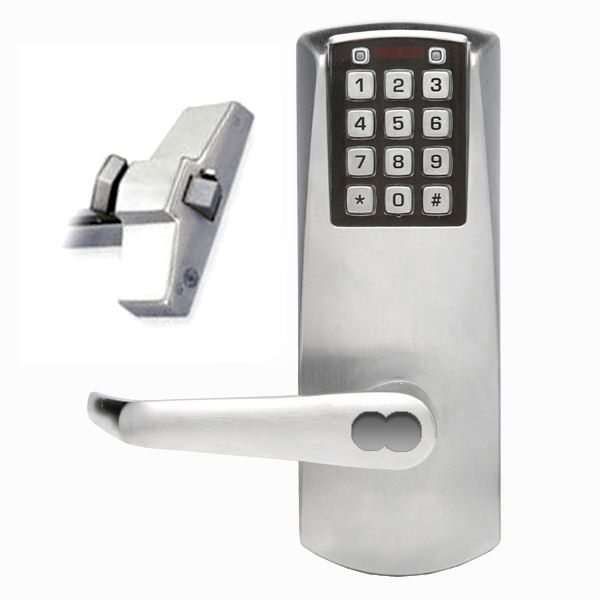

  • dormakaba E-Plex E201UBLL626

    Electronic Exit Lock

    SKU: E201UBLL62641

    E-Plex

    Panic bar/exit device sold separately.



    The Kaba E-Plex E201UBLL626 provides a cost-effective, keyless solution for your perimeter doors. This light-duty commercial exit lock eliminates the costs and security concerns of managing keys, changing locks, lost keys, and magnetic stripe cards. Using touchpad control, you assign and issue PIN code credentials. Each time there is a user change, simply log-in with your master PIN to manage them.

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $105.60

    • 100 User capacity.  Millions of possible code choices
    • Exit Device Compatibility:  Von Duprin #’s 98/99, Von Duprin Surface Vertical Rod #’s 9827/9927, Detex Rim # F1001, Detex Surface Vertical Rod #’s 20/F20, Dorma Rim # F9300, Precision Rim #’s 21/FL21, Precision Surface Vertical Rod #’s 22/FL22, Arrow Rim # 3800*, Sargent # 8800* *Requires 062-514-148 Kit, sold separate, special order
    • Satin chrome finish; special order for satin brass
    • 3 Operation modes: Access, lockout, & passage (passage mode can be toggled on/off, or pre-programmed to re-lock after a certain number of hours
    • Field reversible full size ADA lever
    • Perfect for wood and metal doors – installation screws for both included
    • Programming accomplished via the lock’s keypad
    • Rugged clutch mechanism insures long life & durability
    • Four authority levels: Master, Manager, User and Service
    • Auto-locking but may be programmed to passage mode
    • Always an instant, free exit with inside lever
    • Patented LectroBolt makes it easy to install and maintain
    • Operates on 3AA alkaline batteries maintained in exterior housing – 100,000 lock cycles before batteries need changing
    • Lock data not compromised if batteries fail
    • Key override using an interchangeable core Best and equivalents IC core prep.   You may use your own Best and equivalent 6-pin or 7-pin IC key cores in this prep, or you can order one from us at checkout.  Be sure to select the Falcon brand, as it’s the one we use.  The prep also supports, Arrow, Eagle, KSP, or LM brand IC cores.  Call us at (937) 247-9327 for one of these brands
    • 3-year manufacturer warranty

    Manuals
    Operations Manual
    (Adobe Acrobat Reader is required to view PDF files. This is a free program available from the Adobe web site. Follow the download directions on the Adobe web site to get your copy of Adobe Acrobat Reader)

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Tired of issuing, controlling, and collecting keys or cards?  Want to ELIMINATE the costs and security concerns of managing keys, changing locks, lost keys, and magnetic stripe cards?  Then look no further than this economical light-duty commercial exit lock.  Using touchpad control, you assign and issue PIN code credentials of 4-8 digits in length.  Each time there is a user change, simply log-in with your master PIN and either delete/change/add users.  The E-Plex 2000 panic door locking system is an INVESTMENT in your business's security, and productivity.

    Banks, Hospitals, Schools, Restaurants, Movie Theatres, Airports, Retail, Offices, Pharmacies Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Panic/Exit
    Exit - Rim
    Exit - SVR
    Brand E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 100,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100
    Key Override Best IC

    Dimensions

    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Weight 6 lbs
