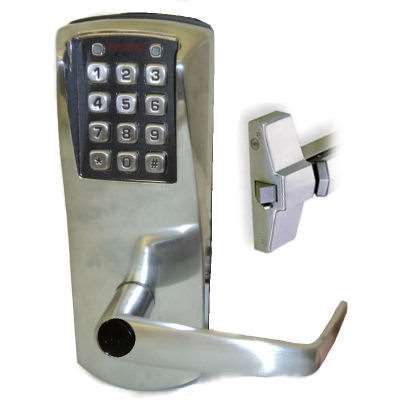

    dormakaba E-Plex E201VXSLL626

    Electronic Push Button Exit Trim

    SKU: E201VXSLL62641

    E-Plex

    Panic bar/exit device sold separately.



    The Kaba E-Plex E201VXSLL626 is an economical light-duty commercial exit lock. Assign and issue PIN codes using the keypad. Each time there is a user change, simply log-in with your master PIN to modify users. Suitable for offices, hospitals, schools, and more. Retrofits Von Duprin mortise and concealed vertical rod exit devices.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $105.60

    • 100 User capacity.  Millions of possible code choices
    • Exit Device Compatibility:  Von Duprin Concealed Vertical Rod #’s 9847/9947, Von Duprin Mortise #’s 9875/9975
    • Satin chrome finish; special order for satin brass
    • 3 Operation modes: Access, lockout, & passage (passage mode can be toggled on/off, or pre-programmed to re-lock after a certain number of hours
    • Field reversible full size ADA lever
    • Perfect for wood and metal doors – installation screws for both included
    • Programming accomplished via the lock’s keypad
    • Rugged clutch mechanism insures long life & durability
    • Four authority levels: Master, Manager, User and Service
    • Auto-locking but may be programmed to passage mode
    • Always an instant, free exit with inside lever
    • Patented LectroBolt makes it easy to install and maintain
    • Operates on 3AA alkaline batteries maintained in exterior housing; 100,000 lock cycles before batteries need changing
    • Lock data not compromised if batteries fail
    • Key override using a standard key-in-lever Kaba cylinder with Schlage C type keyway.  Key cylinder is concealed from view
    • 3-year manufacturer warranty

    Manuals
    Operations Manual
    (Adobe Acrobat Reader is required to view PDF files. This is a free program available from the Adobe web site. Follow the download directions on the Adobe web site to get your copy of Adobe Acrobat Reader)

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Tired of issuing, controlling, and collecting keys or cards?  Want to ELIMINATE the costs and security concerns of managing keys, changing locks, lost keys, and magnetic stripe cards?  Then look no further than this economical light-duty commercial exit lock.  Using touchpad control, you assign and issue PIN code credentials of 4-8 digits in length.  Each time there is a user change, simply log-in with your master PIN and either delete/change/add users.  The E-Plex 2000 panic door locking system is an INVESTMENT in your business's security, and productivity.

    Banks, Hospitals, Schools, Restaurants, Movie Theatres, Airports, Retail, Offices, Pharmacies Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.



    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Keyway Schlage C
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Panic/Exit
    Exit - Mortise
    Exit - CVR
    Brand E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 100,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100

    Dimensions

    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/2 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Weight 6 lbs
