  • dormakaba E-Plex E2031LL626

    Keyless Access Lock

    SKU: E2031LL62641

    E-Plex

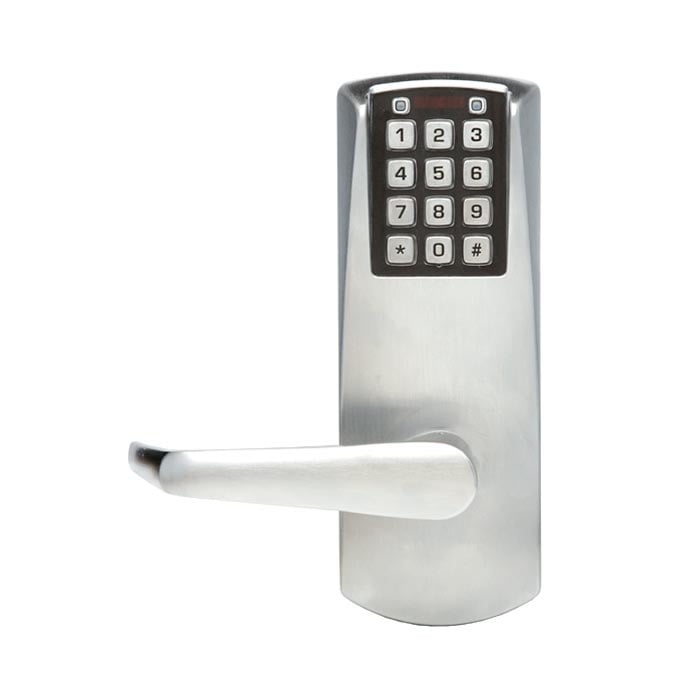

    The Kaba E-Plex E2031LL626 is an economical light-duty commercial door lock. Assign and issue PIN codes using the keypad. Each time there is a user change, simply log-in with your master PIN to modify users. Suitable for offices, hospitals, schools, and more.

    In Stock

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $87.14

    Call For Price
    • 100 User capacity. Millions of possible code choices
    • Bump and pick proof lock. May be ordered with key override here
    • Satin chrome finish. See satin brass
    • 3 Operation modes: Access, lockout, & passage (passage mode can be toggled on/off, or pre-programmed to re-lock after a certain number of hours
    • Field reversible full size ADA lever
    • Perfect for wood and metal doors - installation screws for both included
    • Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
    • Programming accomplished via the lock's keypad
    • Rugged clutch mechanism insures long life & durability
    • Four authority levels: Master, Manager, User and Service
    • Auto-locking but may be programmed to passage mode
    • Always an instant, free exit with inside lever
    • Perfect for interior and exterior doors

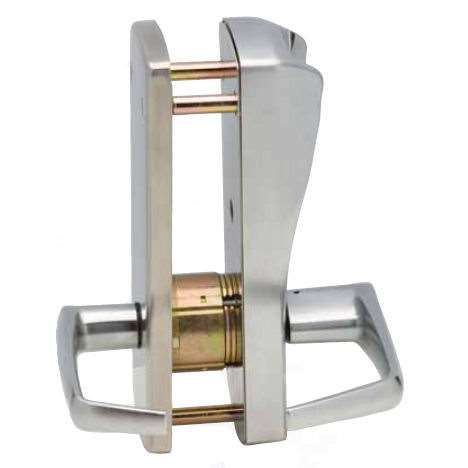

    • Patented LectroBolt makes it easy to install and maintain. Retrofits cylindrical latch locksets
    • Operates on 3AA alkaline batteries maintained in exterior housing - 100,000 lock cycles before batteries need changing
    • Lock data not compromised if batteries fail
    • Available in standard keyed and I/C prep
    • 3 Year manufacturer warranty

    Manuals
    Operations Manual
    Installation Instructions
    (Adobe Acrobat Reader is required to view PDF files. This is a free program available from the Adobe web site. Follow the download directions on the Adobe web site to get your copy of Adobe Acrobat Reader)

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Tired of issuing, controlling, and collecting keys or cards?  Want to ELIMINATE the costs and security concerns of managing keys, changing locks, lost keys, and magnetic stripe cards?  Then look no further than this economical light-duty commercial door lock.  Using touchpad control, you will assign and issue PIN code credentials of 4-8 digits in length.  Each time there is a user change, you simply log-in with your master PIN and either delete/change/add users.  The E-Plex 2000 is an INVESTMENT in your business's security, and productivity. Banks, Hospitals, Schools, Restaurants, Movie Theatres, Airports, Retail, Offices, Pharmacies Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

    GoKeyless™ is a factory trained and authorized dormakaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating A156.25, Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Cylindrical Latch
    Brand E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 100,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100
    Fire Rating UL 10C
    Users 100

    Dimensions

    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 1/4 (W) x 2 1/4 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/2 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 13/16 (D) in.
    Weight 8 lbs
