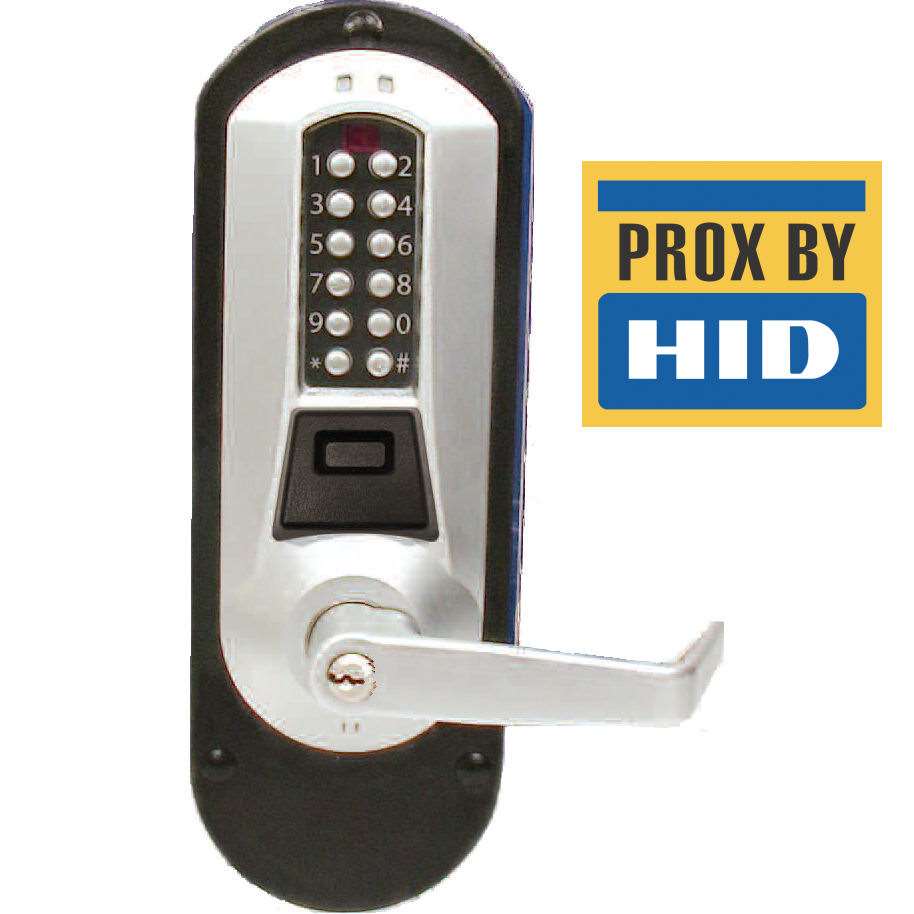

    dormakaba E-Plex E5710

    Exit PIN/Prox Keyless Lock

    SKU: E5710XSWL62641

    E-Plex Wireless and E-Plex

    The Kaba E-Plex E5710 series is the extra-duty electronic lock you need to secure your most vulnerable exits. Keep maintenance to a minimum by sharing codes and not keys. Compatible with a wide variety of exit devices and no hardwiring required.


    Quantity left : 4



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Extra Heavy-Duty ANSI/BHMA Grade 1 Dual Credential PIN/Prox exit trim lock.  Includes battery pack - mounts above touchbar on interior side of door

    Features LearnLok programming

    Interfaces with today's leading panic bars.  Compatibility:  Arrow S1250, Arrow S3800, Corbin Russwin 5200 / 5200A, Detex 10 / F10, Dorma 9300 / 9300F, Monarch 18R / F-18R (requires special K hub adapter), Precision 21 / FL 21, Sargent 2828, Sargent 3828, Sargent 8800, Sargent 8888, Von Duprin 22 / 22F, Von Duprin 98 / 98F, Von Duprin 99 / 99F, Yale 7100

    Stand-alone advanced access control at a one-fifth (1/5) the cost of primitive systems.  A new standard in institutional facility management

    Tested extensively in outdoor and marine environments - performed flawlessly

    Supports Up to 3000 Users:  Pass-codes can be 4-8 digits in length (high security with over 100 million possible combinations)

    Program at keypad, card reader, or via PC

    You determine what's required for access; PIN only, PROX card only, or PIN + PROX card

    Network and PC Programming (offline):  Requires laptop and E-Plex Enterprise Implementation Kit (sold separately at checkout)

    HID, and 125 kHz, 26 to 84-bit format type prox cards are supported (HID cards available at checkout)  Have existing magstripe or ID badges you want to use?  No problem, simply add theHID adhesive prox tags at checkout

    Audible and Visual Programming Indicators:  Visual tamper indicator

    Three Operating Modes: PIN/card access, passage (can be toggled on/off or pre-programmed to re-lock after certain number of hours), and lockout mode

    Five authority levels lets you control who can do what

    Time-Determined Access:  Using software you can program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)

    First Manager In Feature:  Lock does not go to passage mode (enter without code) until the first privileged user's credential is presented

    Passage mode can be manually toggled at the lock

    Battery Operation:  4 AA alkaline batteries included, providing appx. 180,000 lock cycles.  Low battery indicator.  Non-volatile memory; lock's data preserved if batteries fail

    Track entries of who entered and when with audit trail feature (unit stores last 30,000 events)

    Fits virtually all left and right swing doors

    Vandal resistant, solid metal pushbuttons

    Patented LectroBolt 'sandwich-fitting' yields a 90% reduction in installation time over wired access control systems.  Instructions and two-hole drilling template supplied

    Architectural satin chrome, and dark bronze with brass accents finishes available.  Other finishes may be custom ordered

    Emergency Key Override:  Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose

    3-year manufacturer warranty from date of install; memory has a built-in warranty counter


    Achieving remarkable results is easy with E-Plex dual PIN/Prox exit locks.  Industries across the board rely on the unshakable confidence of having E-Plex protecting their exit openings and assets from unauthorized entry or access.  Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.  Featuring E-Plex's Patented LectroBolt technology, the 5700 Series abolishes having to run wires to or through the door, while eliminating the risk of damage from pinched wires.  The outcome is even more money saved on implementation and installation.  Built on five decades of accomplished engineering success, the E-Plex prox is reassuringly sturdy and a true workhorse.  There is nothing else like it.  Want to make your workplace more secure without sacrificing any convenience?  E-Plex prox locks help you figure it out.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year


    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Panic/Exit
    Exit - Rim
    Brand E-Plex Wireless

    Door requirements

    Door Handing Non-Handed
    Battery Life 180,000 Cycles
    Door Prep Through-Bolt Hole(s)


    Code Length 4 to 8 Digits
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Users 3,000


    Exterior Dimensions 12 5/16 (H) x 4 1/4 (W) x 4 1/16 (D) in.
    Inside Dimensions ["3 7/8 (H) x 3 3/16 (W) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 12 5/16 (H) x 4 1/4 (W) x 4 1/16 (D) in.
    Weight 9.5 lbs
