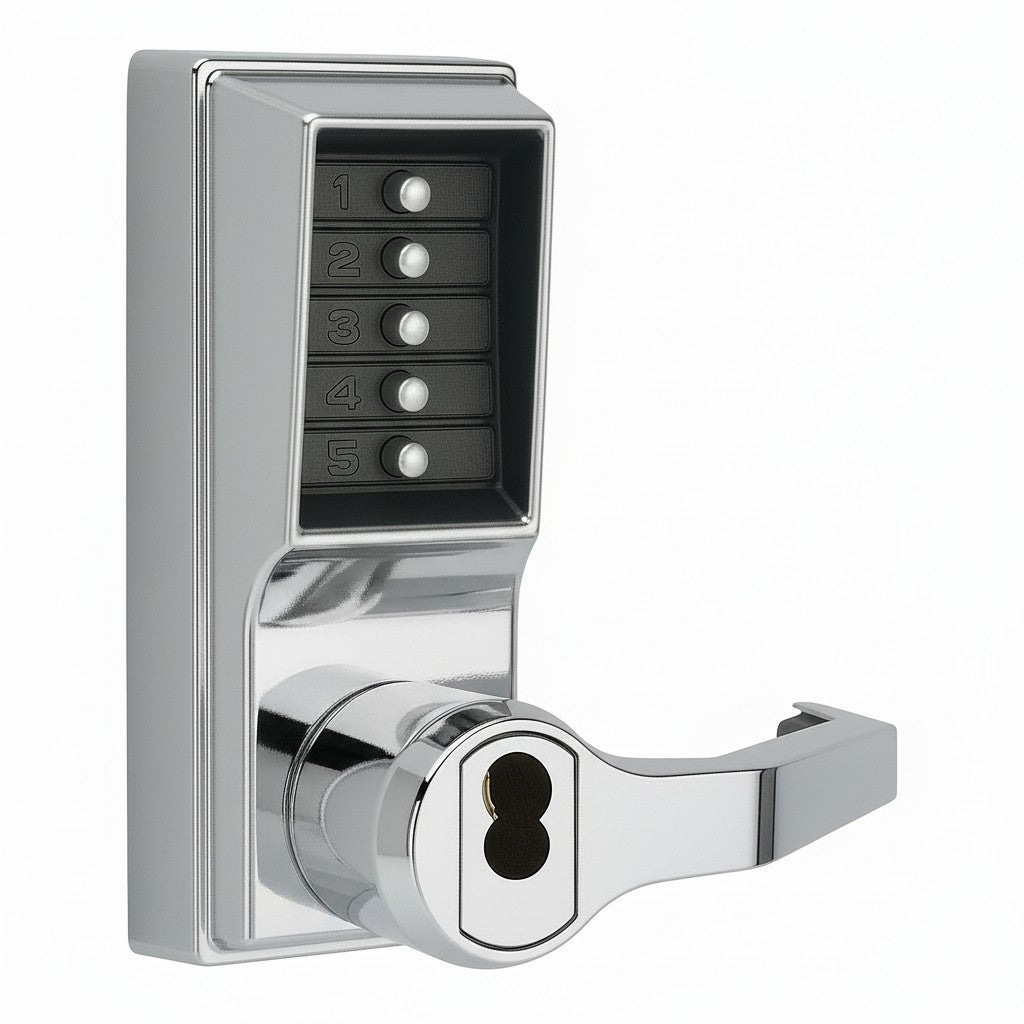

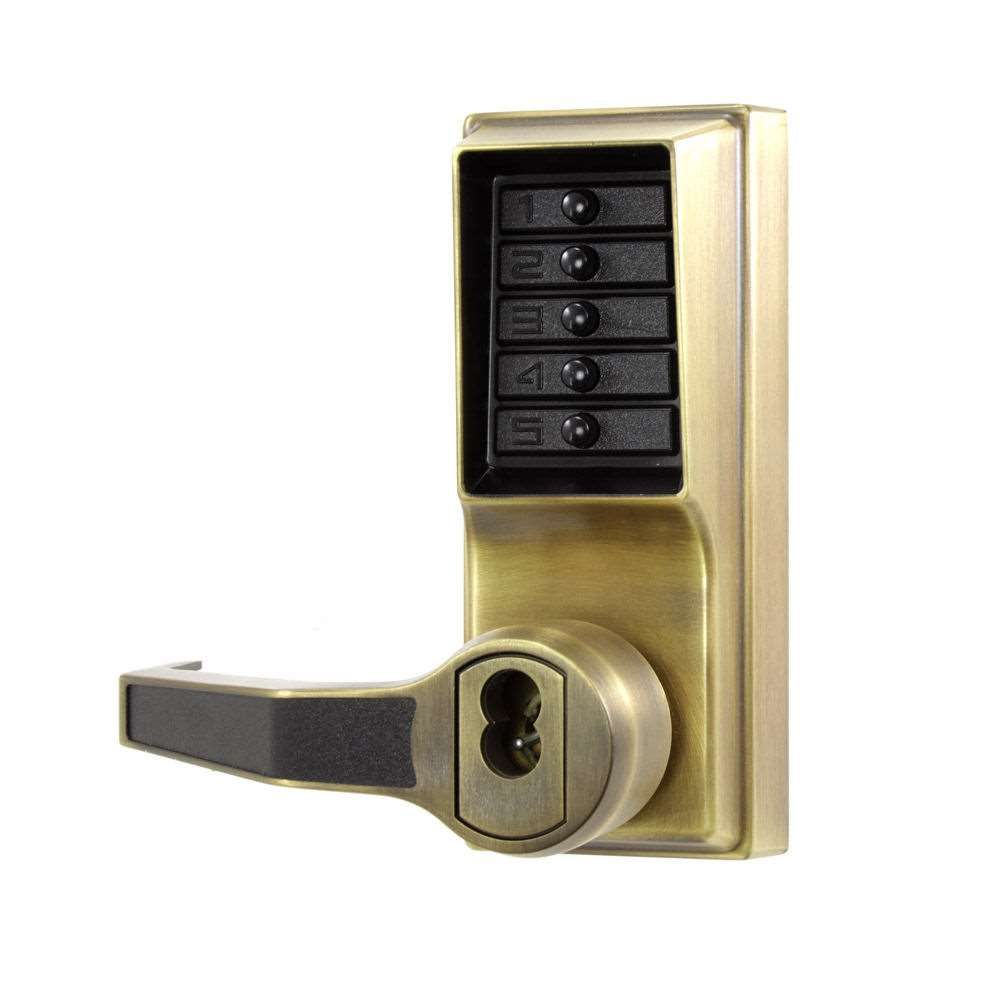

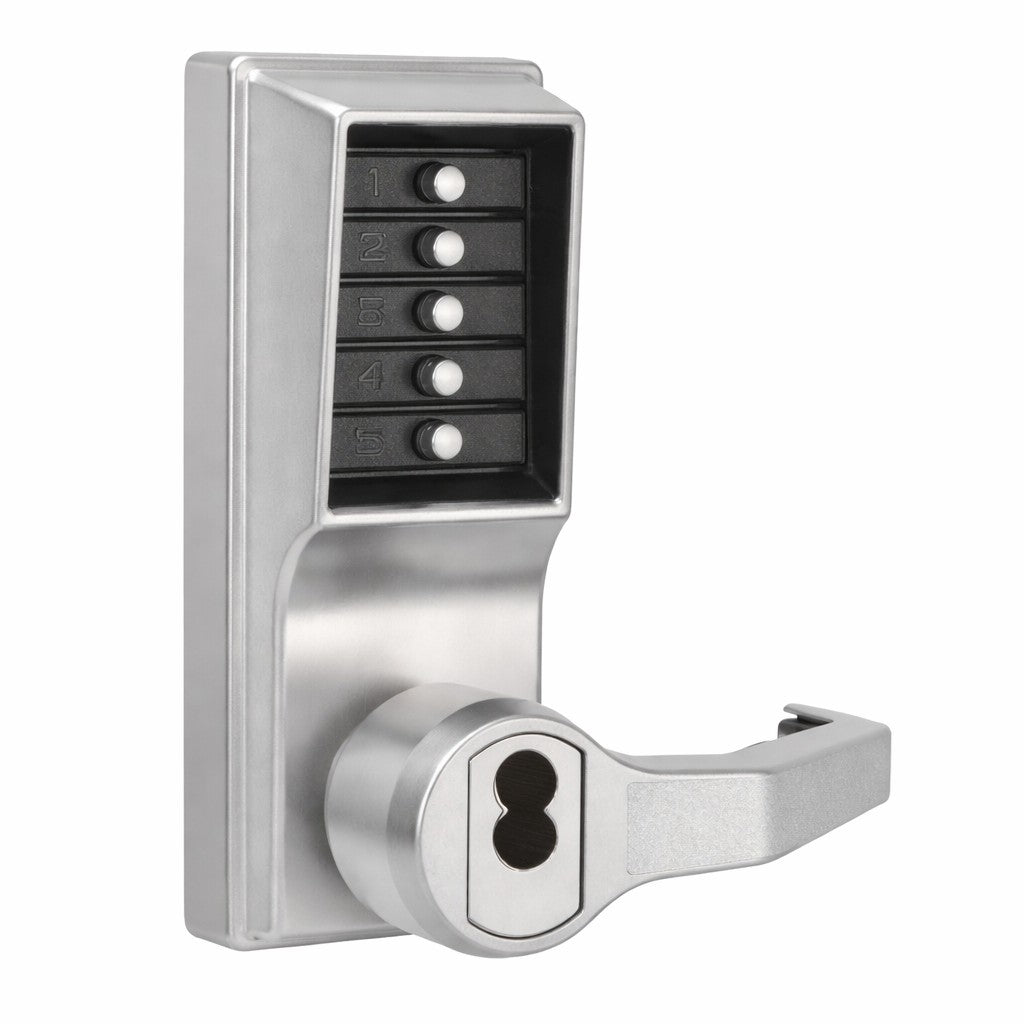

  • dormakaba Simplex L1076 IC

    Combination Entry Lock with Lockout (less core)

    SKU: LL1076B-26D-LC

    Kaba Simplex

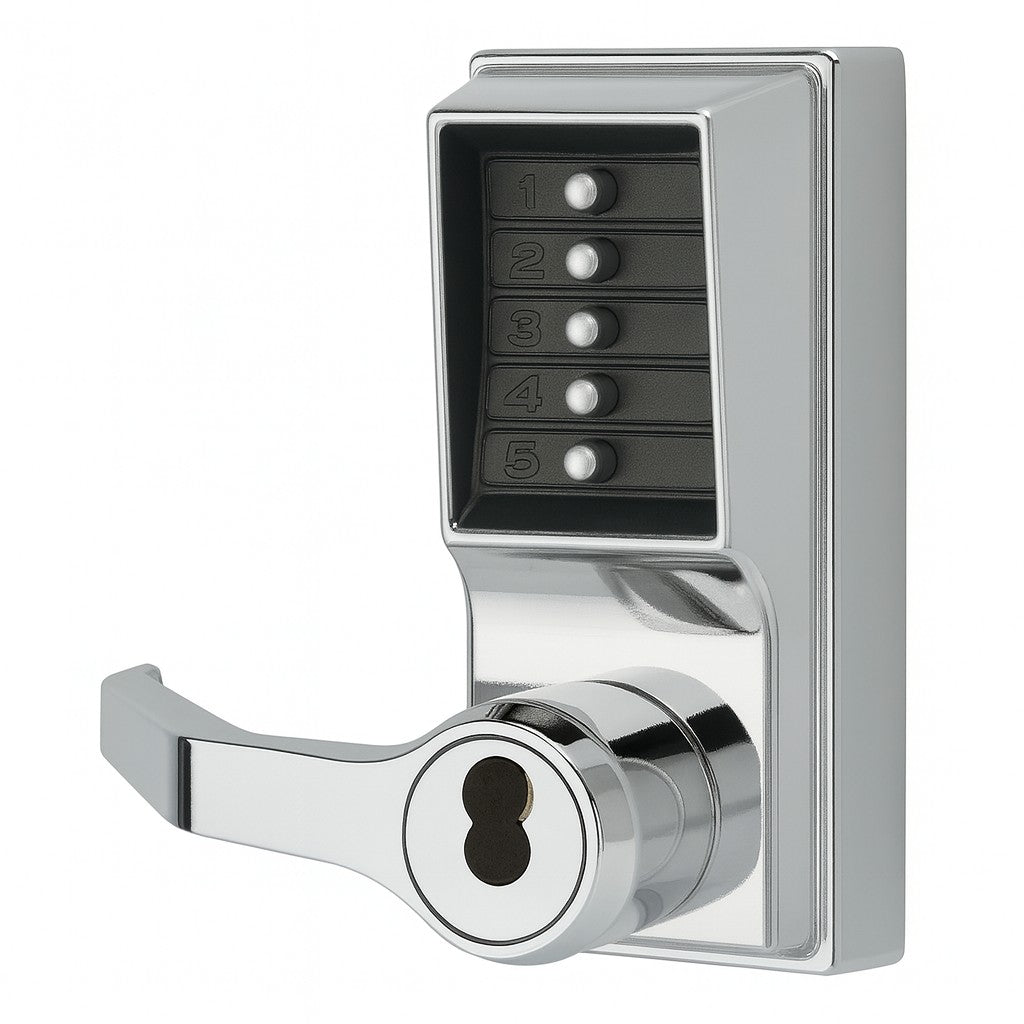

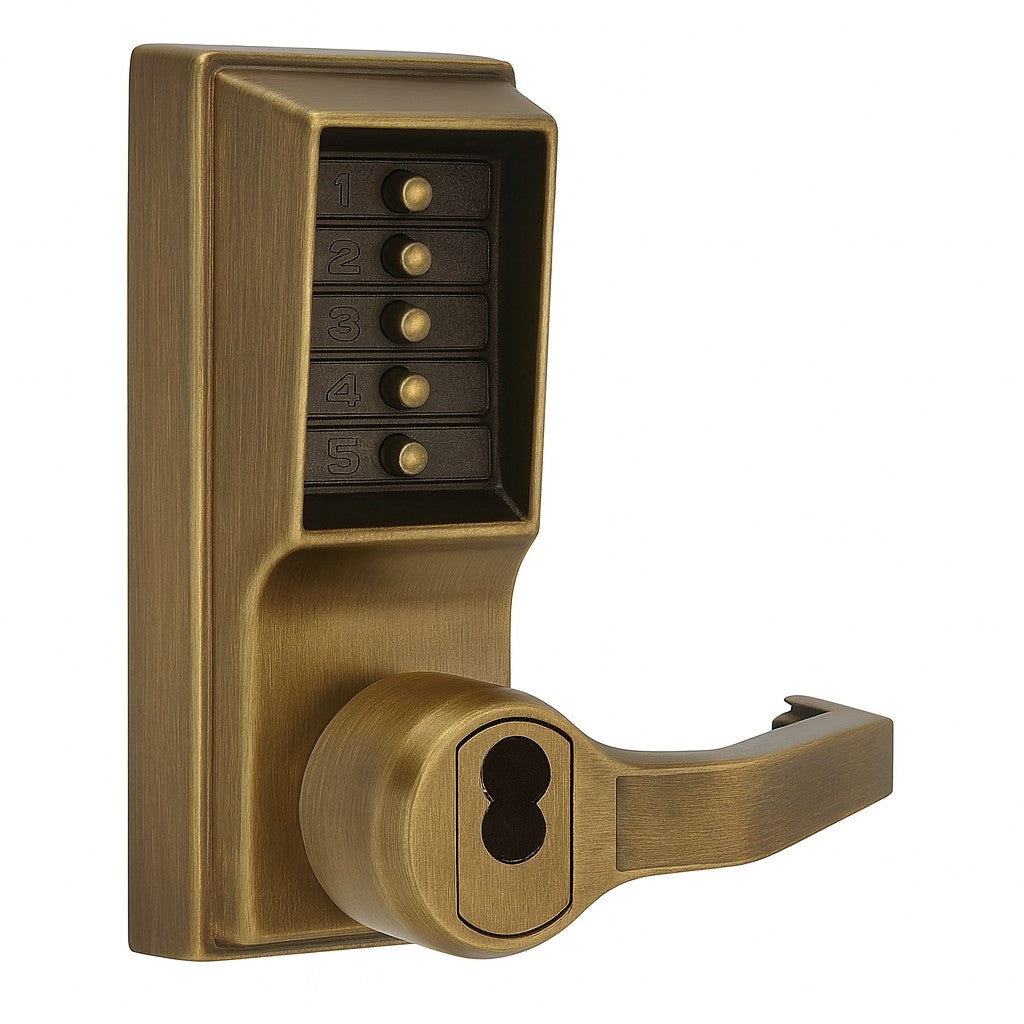

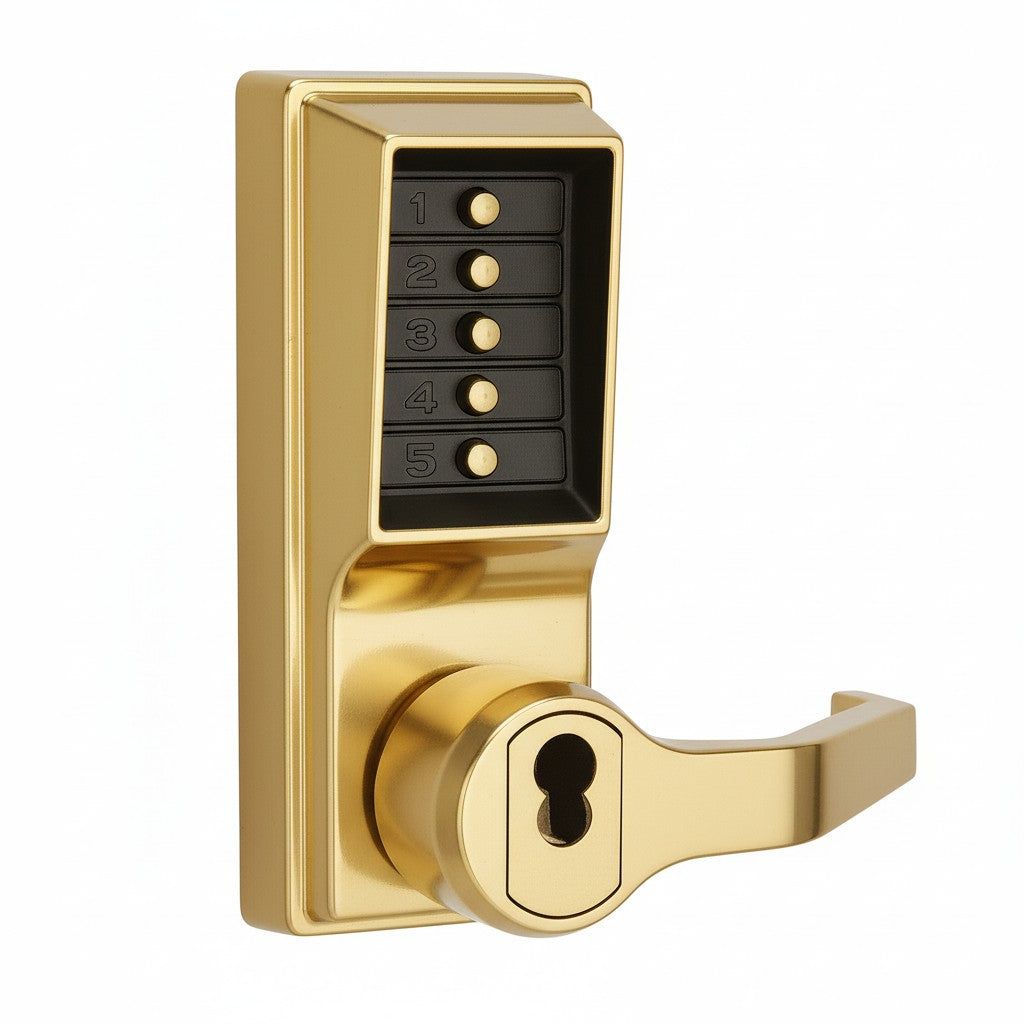

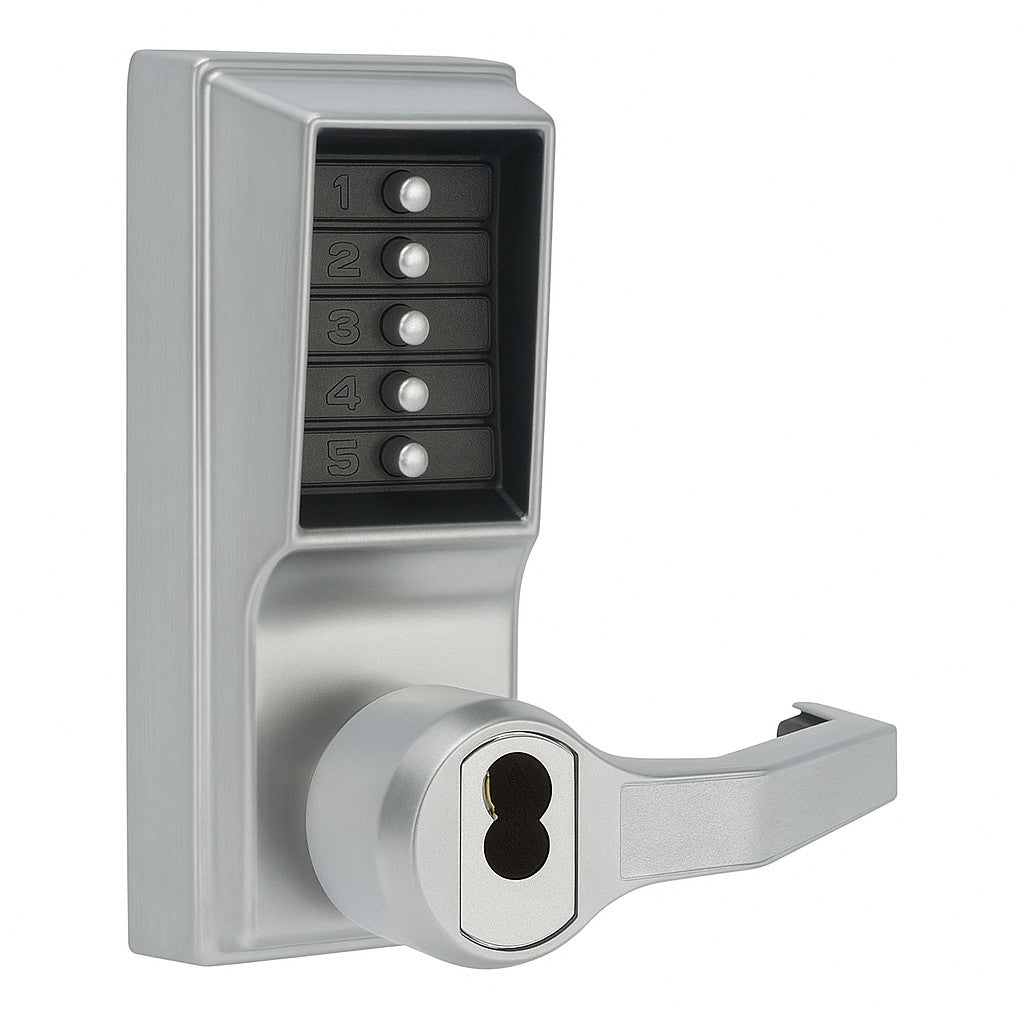

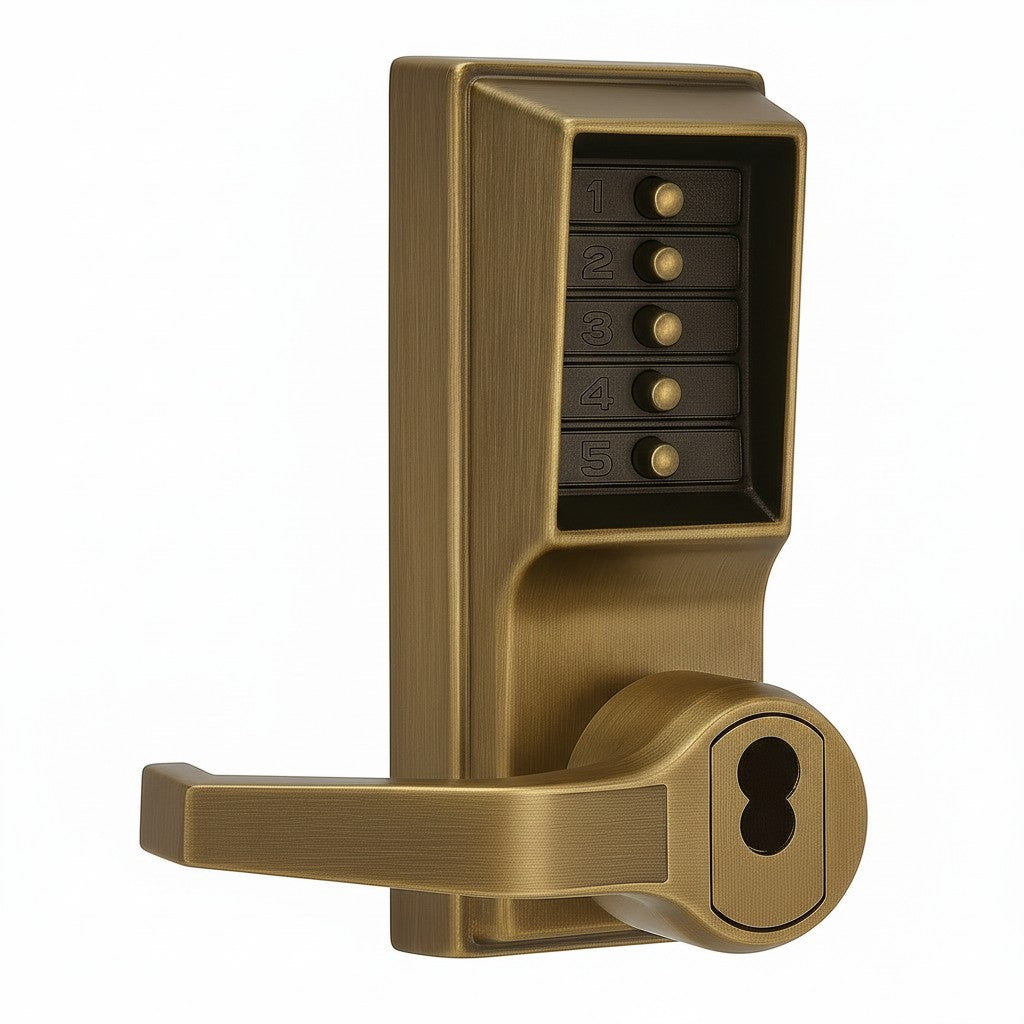

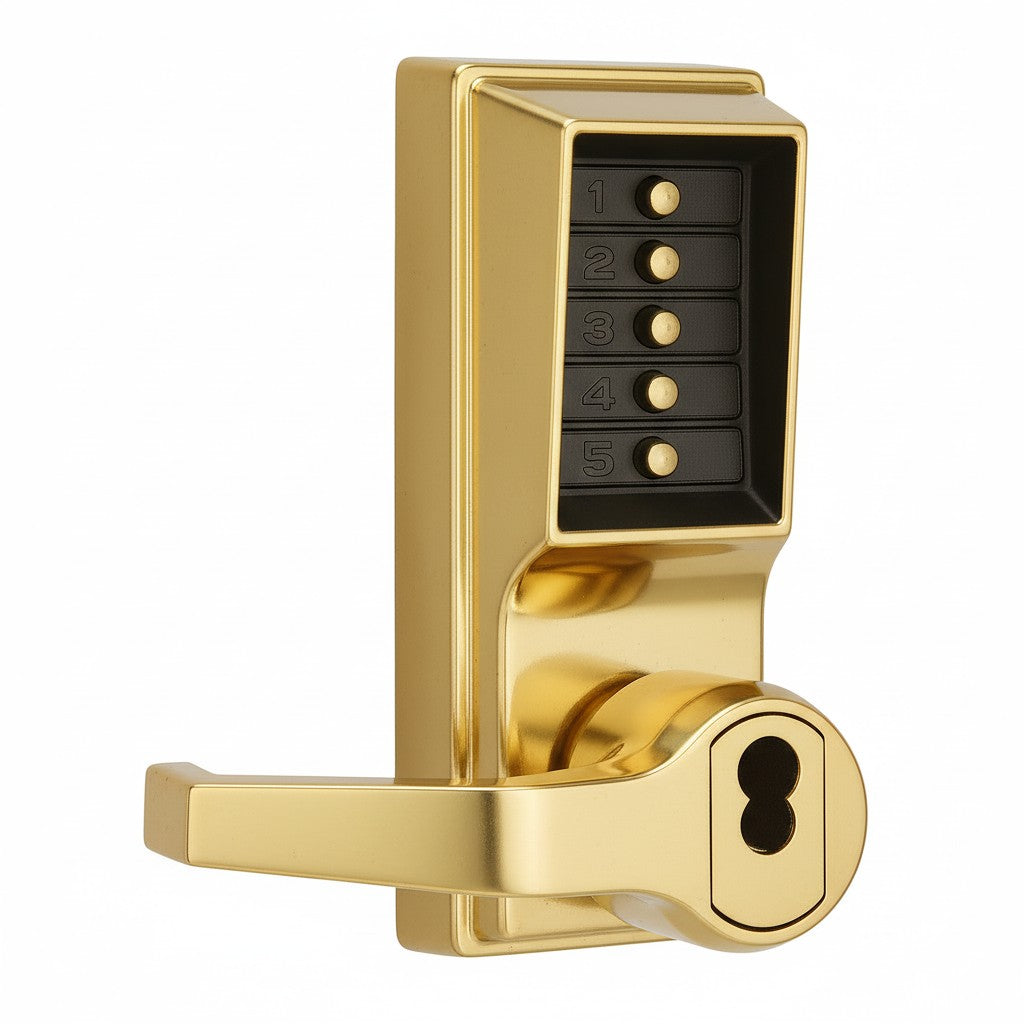

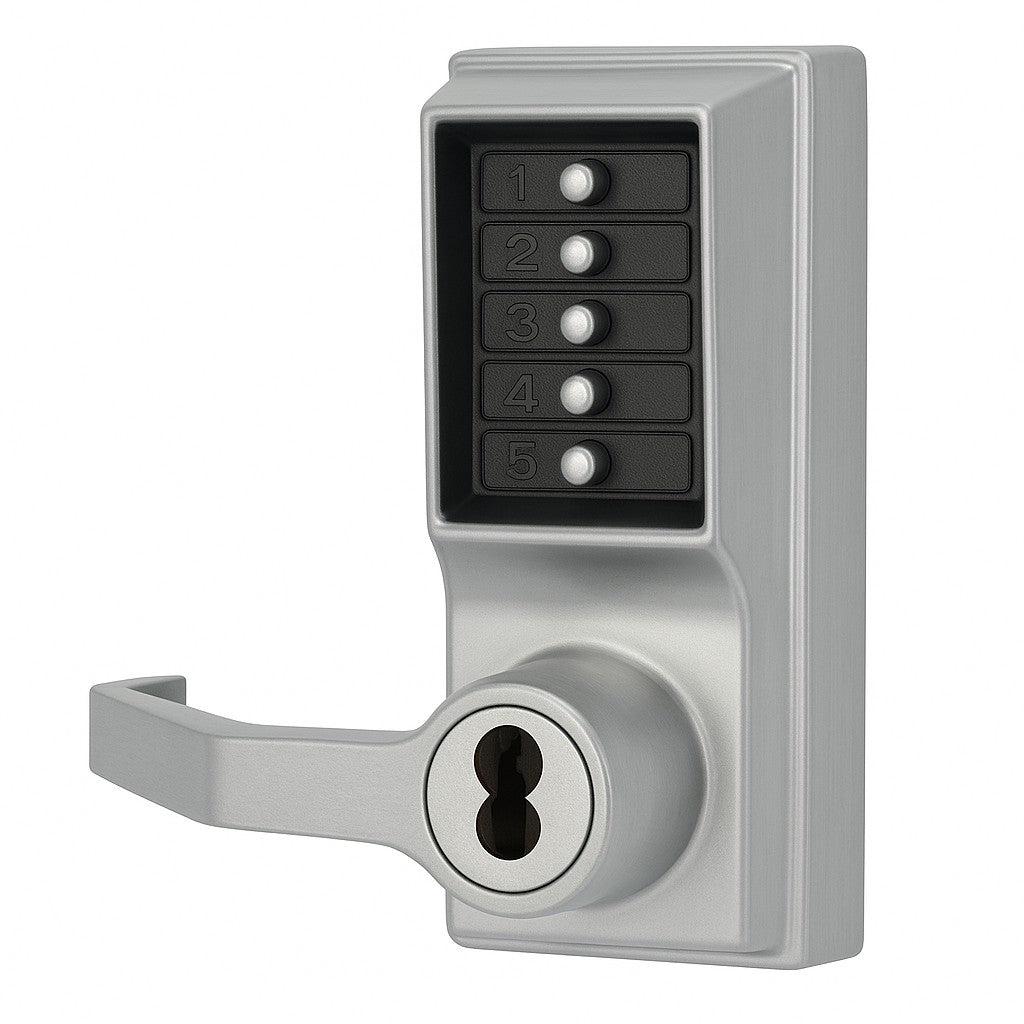

    Security made simple. The Kaba Simplex L1076 IC is a heavy-duty pushbutton lever lock built to withstand high traffic and tough environments. No electronics, wires, or keys to worry about. Features auto-locking to ensure your door or gate is always locked behind you when it closes and passage mode option for easy code free access. Prepped for key override using inter-changeable cores.

    Door Handing
    Finish
    Key Override

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $107.57

    Call For Price
    • ADA compliant lock
    • 100% Mechanical HEAVY DUTY push button lock
    • Fully bump and pick proof lock
    • Thousands of possible codes combinations
    • Auto-locking; can be ordered with passage mode feature in Simplex L1031 & L1041 models
    • Privacy feature activated by button on inside lever. Disables entry codes from gaining access. Access permitted with key override only.
    • HEAVY DUTY Latch-bolt with deadlocking plunger
    • Covers existing standard ASA 161 door hole
    • Fits left and right swinging doors
    • All hardware and instructions included with order
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
    • Prepped for key override. When you choose Best IC - Prep you may use your own small-format IC cores in this lock, including Best, Falcon, KSP, and Arrow. When you choose one of the other name brand IC preps, you can then use that name brand IC core in the lock. Need us to supply the core? Simply order at checkout
    • 3-year manufacturer warranty



    GoKeyless™ is a factory trained and authorized Kaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

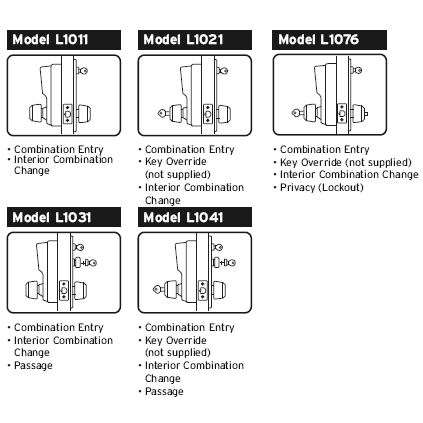

    Simplex L1076 - Combination Entry, Lockout (privacy) & Prepped for Key Override (Use your own IC core, or order one from us at checkout) Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  The Simplex L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resitant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

    GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    Lock Features Privacy
    Solution Mechanical
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Kaba Simplex

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Key Override Best IC Prep, Sargent IC Prep, Corbin IC Prep, Schlage IC Prep, Medeco/Yale IC Prep

    Dimensions

    Exterior Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Inside Dimensions ["9 (H) x 3 1/4 (W) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Weight 8.25 lbs
