    Z-Wave Plus Touchscreen Deadbolt

    SKU: 954 OBN ZW500 15 RCALFD


    Smart move and a dramatic presence. The connected Obsidian lock configures to the internet to deliver home security online with a striking look emanating from it's volcanic glass-like capacitive touchscreen. Distinctive from any lock we've unearthed.


    Quantity left : -4



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

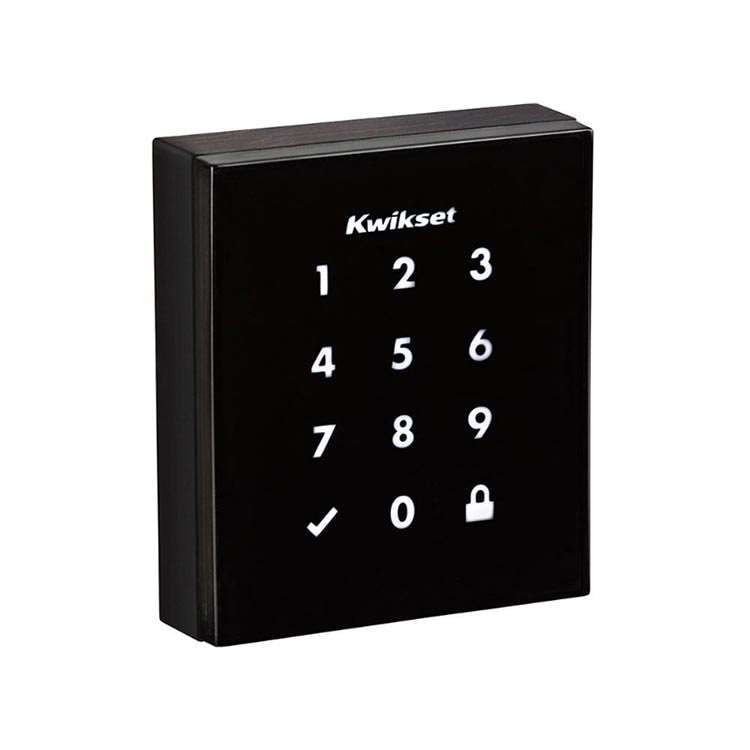

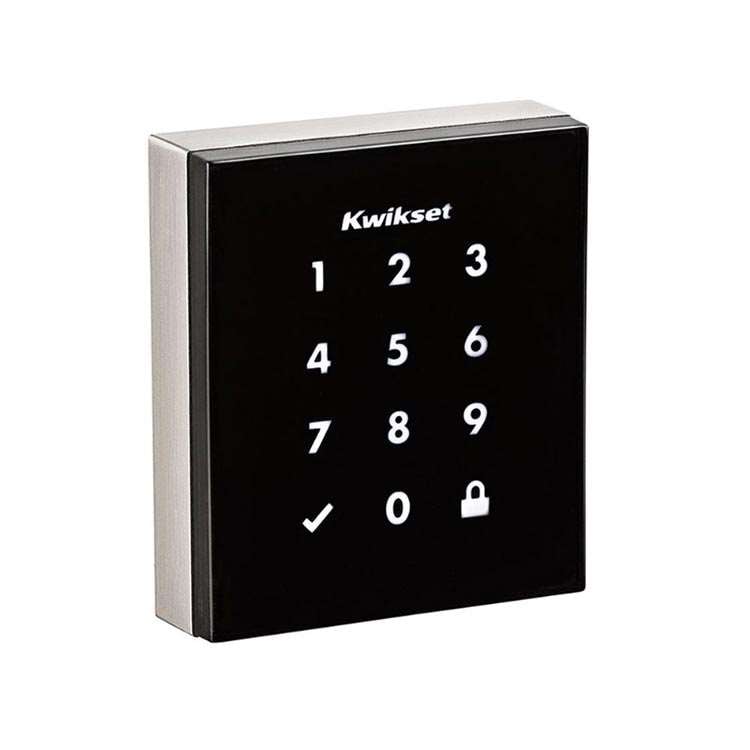

    • 10-digit capacitive touchscreen with one-touch locking
    • Motorized locking mechanism enables true remote locking and unlocking
    • Tapered deadbolt design permits misaligned doors to lock and unlock with ease
    • 9V battery backup power
    • Auto relock 30-seconds after unlocking
    • Interior LED locked/unlocked status
    • Audible feedback
    • Home Connect and Z-Wave Plus wireless technology


    • SecureScreen – patented security feature prevents on-screen fingerprint user code identification
    • 30 user access code capacity – 4 to 8 digit code length
    • MasterCode feature – prevent user codes from being added or deleted
    • User settings stored on lock memory – settings remain even in case of a power outage
    • Independent, local user authentication – no controller connectivity required
    • Audit trail logging stores access history in the lock memory
    • Date/time scheduled user access control
    • Incorrect code protection with audible alarm

    Requires Z-Wave controller for wireless Home Connect features

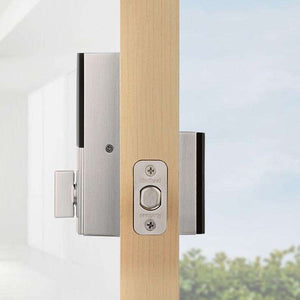

    Kwikset Obsidian

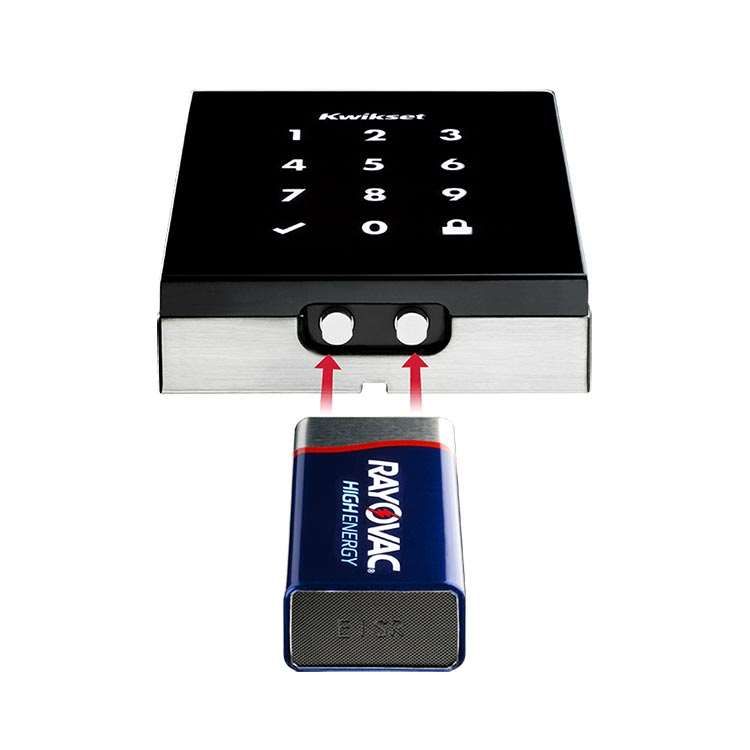

    Kwikset’s Obsidian is one of the slimmest and most striking locks on the market today. Even at less than an inch thick on the exterior, the Obsidian still offers numerous quality of life security features. It has a convenient one-touch locking button as well as an optional 30-second auto-locking feature for those times where you might forget to lock up. Multiple unsuccessful code entry attempts will disable the lock for 60 seconds and an anti-tampering alarm will sound when an intruder attempts to break into the lock itself. Equipped with a 30 user code capacity, all your family and friends can have their own unique 4 to 8 digit code. Codes can be set to work only during certain times of the day, perfect for babysitters, dog walkers, maintenance workers and more. Notifications can be set to alert you when codes are being used, and the audit trail keeps a record of lock access. The lock will alert you when batteries are running low, but if it does lose power a 9V battery can be used as a backup on the bottom of the lock.

    Requires Home Connect or Z-Wave controller for wireless features

    One of the few downsides to touchscreens are fingerprints, and using the same code day after day will reveal which numbers have been pressed. Kwikset’s answer to this is their patented SecureScreen technology. It will randomly generate two numbers you must press before entering your access code. This ensures more numbers are pressed, thus making it difficult for intruders to guess your code.


    Manufacturer Kwikset
    Battery Type 4 AA
    BHMA Rating Grade 2 (Better)
    Faceplate 1 x 2 1/4 in. round corner standard
    Lock Features Old Activity Monitoring, Audit Trail, Auto Relocking, Built-in Alarm, Remote Control, Status Monitoring, Tamper Alerts, Temporary Codes, Timed Codes, Z-Wave Plus
    Solution Electronic
    Warranty 1 Year Electronic, Lifetime Mechanical and Finish
    Access Type Keypad - Digits
    Locking Device Deadbolt
    Brand Kwikset

    Door requirements

    Door Handing Reversible
    Battery Life 1 Year
    Door Prep 1 1/2 to 2 1/8 in. diameter face hole, 1 in. diameter latch hole
    Strike 1 1/8 x 2 3/4 in.


    Code Length 4 to 8 Digits
    Code Capacity 30
    Wireless Protocol Z-Wave Plus


    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 in.
    Backset 2 3/4 in., 2 3/8 in., Adjustable
    Dimensions 2 25/32 (L) x 13/16 (W) x 3 7/32 (H) in.
    Door Stile Width Minimum 3 in.

    Looking to use voice commands to lock your door with Amazon Alexa? Simply pair the Kwikset wireless lock to the VeraPlus controller and then enable the Vera skill inside the Alexa app. Speak “Alexa, lock the front door” to your Amazon Echo or Dot, and Vera will lock the door. Cool part is you can add electronic switches, Z-Wave LED bulbs, remote control outlets and other devices to create groups in Alexa for automating certain routines you manually do every day, like turning the lights off and locking the doors when you go to bed at night.

    This is Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples’ Connect, Harmony by Logitech, and many more.
