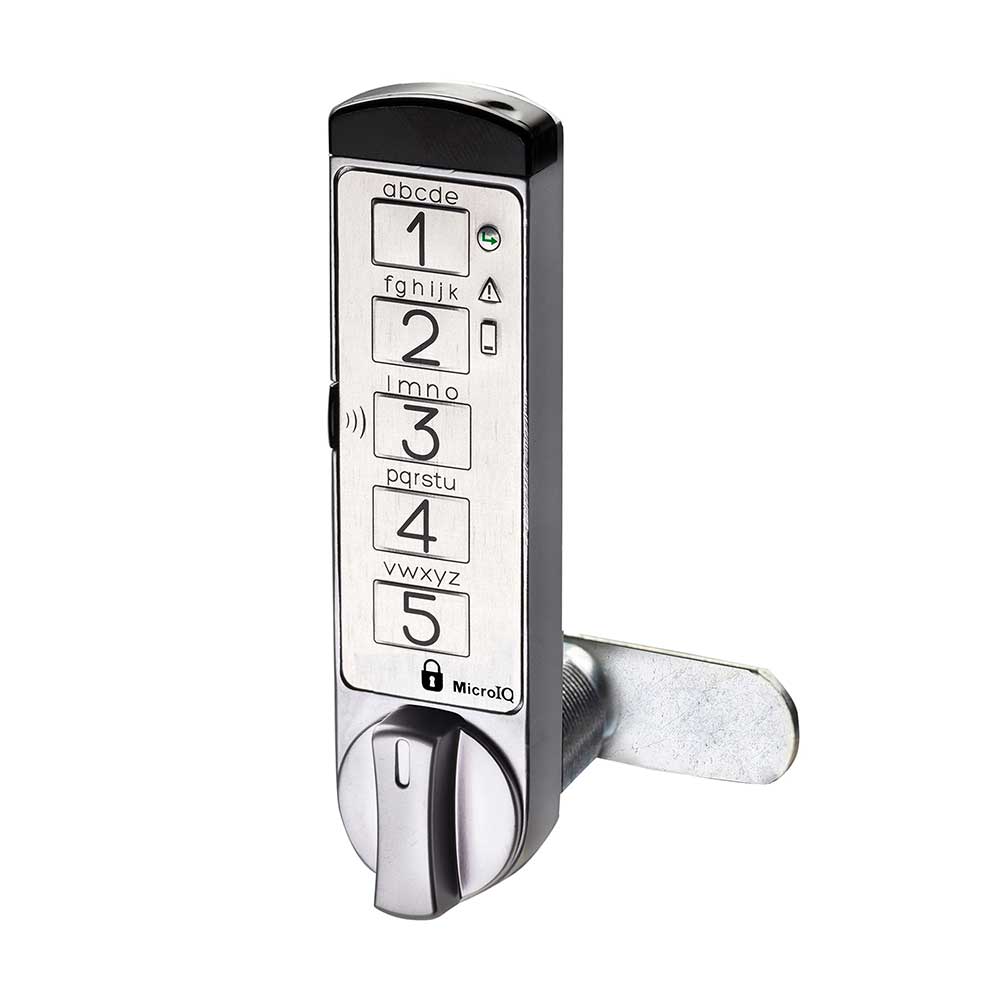

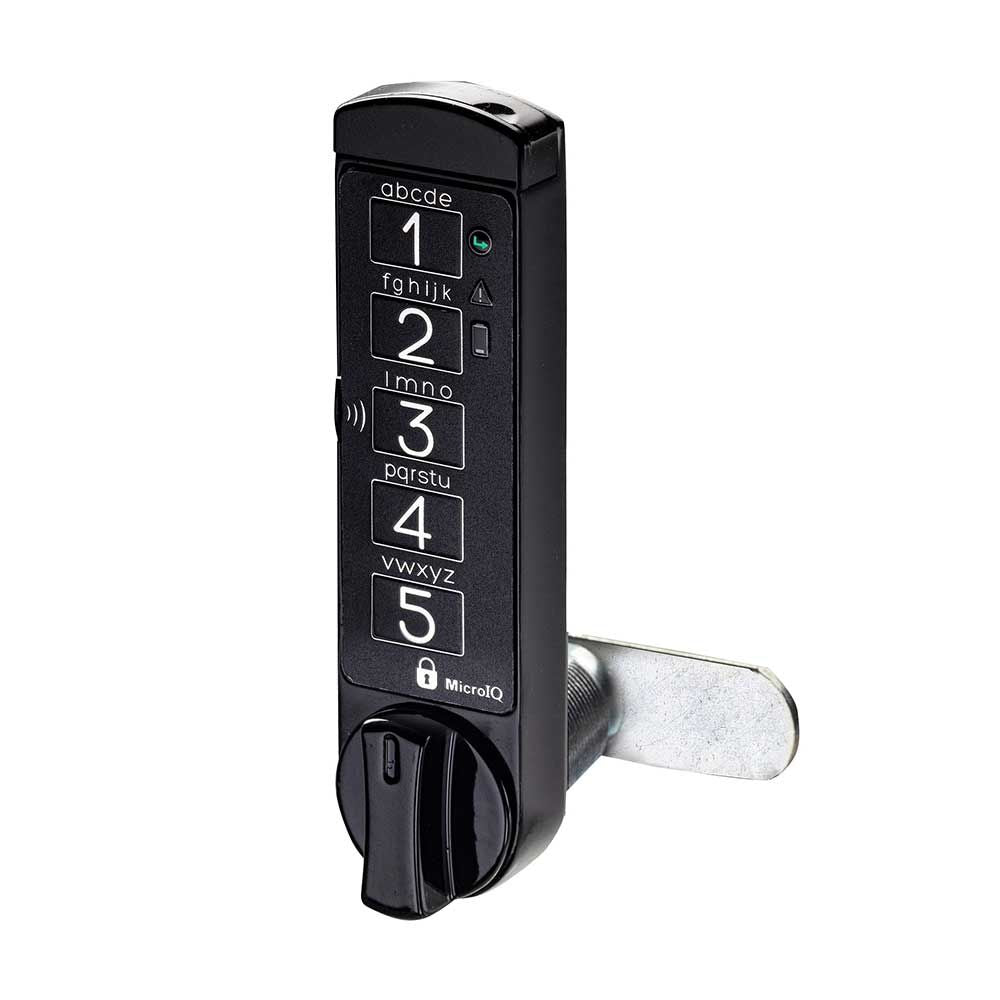

    Vertical Electronic Cabinet Lock

    SKU: 200114-501-11

    MicroIQ



    Lock up with intelligence. MicroIQ UT is the perfect digital keyless lock to secure your cabinets, lockers, and other storage spaces. Featuring convenient access using the raised keypad or wireless master key fob. Turn any key operated lock keyless with its easy drop-in installation.

    Finish
    Shell Length

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $21.97

    Call For Price
    • For wood cabinets and metal lockers
    • Fits doors and drawers 1/8 to 1 in. thick
    • Retrofits virtually any cam lock application with standard 3/4 in. DD hole

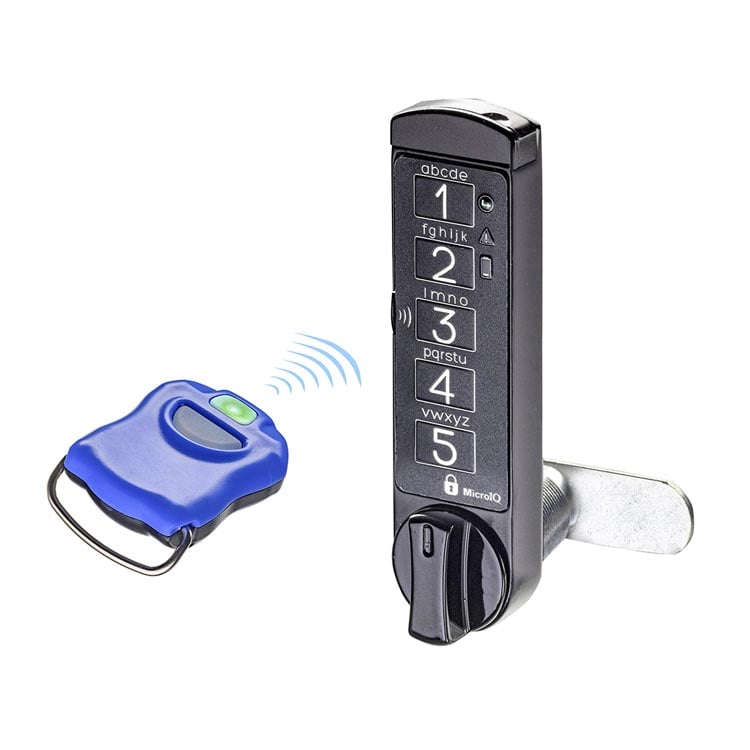

    • Dual Access with raised keypad or master key fob (sold separately)
    • 3 Code Levels: user, supervisor, and master for controlled security management
    • LED indicators: green (proceed), red (error), yellow (low battery)
    • Easy Clean: withstands bleach and chemical cleaners
    • Convenient external battery installation and removal
    • Made in the USA
    • Vertical keypad orientation, horizontal models also available

    Technical Information

    • Factory installed with 1-1/8″ spindle supplied to fit doors up to 1″ thick, additional spindle sizes including 3/8″, 5/8″, and 7/8″ are available upon request
    • Factory preprogrammed to Assigned-use (station) mode, can be switch to multi-user (locker) mode as desired

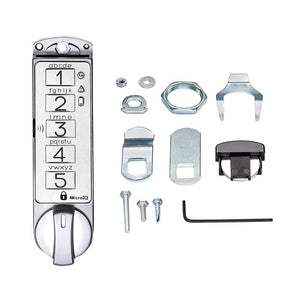

    • Straight cam, offset cam, and mounting hardware included

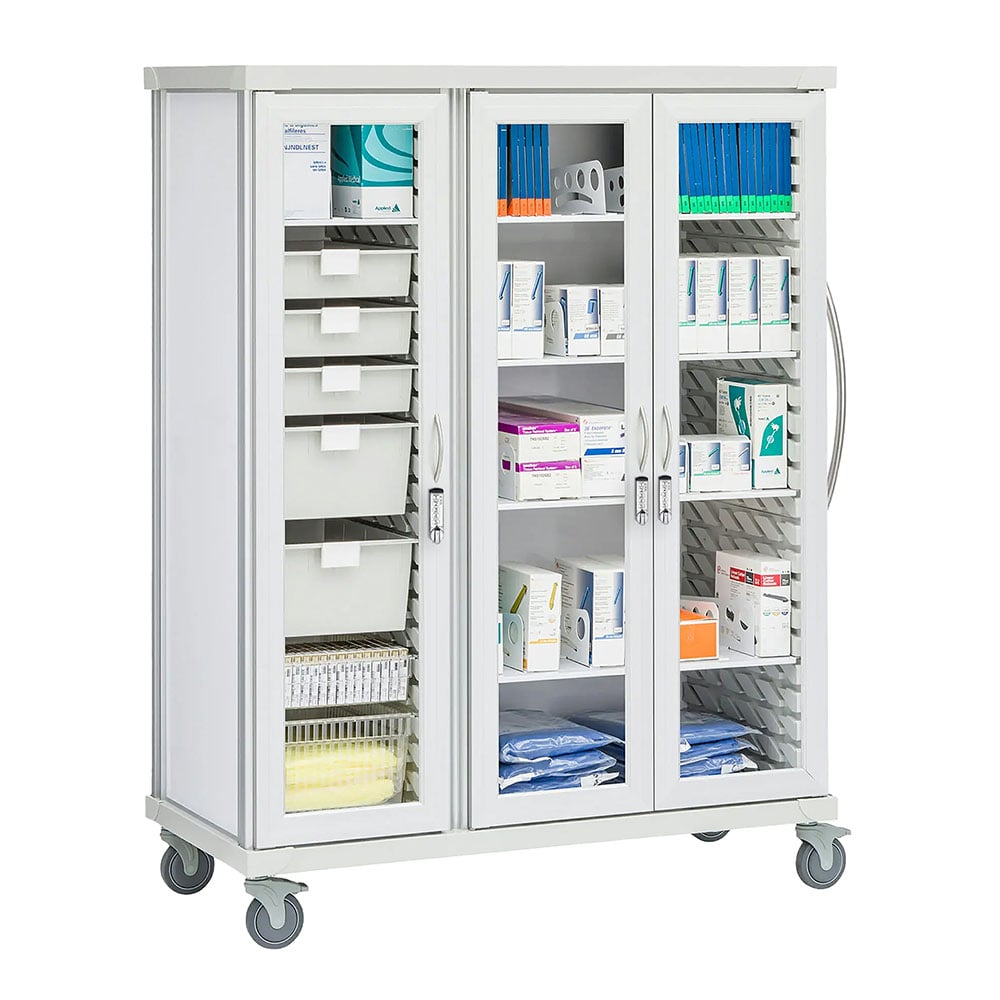

    Your guests won’t have to worry about their valuables getting stolen when you have the TriTeq MicroIQ UT lock guarding their locker! This is the perfect keyless lock to secure your lockers, cabinets, and other storage spaces. Featuring convenient coded access using the easy to use keypad or key fob. Turn any key operated lock keyless with its easy drop-in installation. Choose from Station or Locker modes of operation.

    Station mode enables the lock to be accessed by one or more users repeatedly with a keypad code, user fob, or control fob. Ideal for use in member lounges, health spas and other regulated traffic locations. Station mode is the default mode. The lock memory retains codes until these codes are intentionally erased or replaced. Locker mode is just how it sounds, users choose any available locker and accesses it with their one-time, unique code. Once unlocked, the locker is available for a different user.

    Made from die-cast zinc with a sealed keypad, the MicroIQ lock is easy to clean with a 10% bleach solution, disinfectants or sanitizers. With convenient exterior coin battery access, 3 to 5 year battery life, and the peace of mind to ditch the keys forever, this lock will give you keyless security for years to come!

    Basic

    Manufacturer TriTeq
    Battery Type CR2032
    Finish Black, Silver
    Warranty 1 Year Manufacturer
    Handle Type Turn Knob
    Access Type Remote Fob
    Keypad - Digits
    Locking Device Cam
    Brand MicroIQ

    Door requirements

    Battery Life 3 Years, 50,000 Cycles

    Security

    Code Length 3 to 6 Digits
    Code Capacity 1

    Dimensions

    Door Thickness Minimum 3/8 in.
    Door Thickness Maximum 1 7/16 in.
    Lock Dimensions 1 (H) x 3.86 (W) x .39 (D) in.
    Storage Temperature Range 14°F to 158°F (-10°C to 70°C)
    Weight .5 lbs
    Shell Length 7/8 in., 1 1/8 in.
