  • Schlage AD-201

    FIPS 201-1 Compliant Standalone Electronic Mortise Lock

    SKU: AD-201-MS-70-FMK-RHO-626

    Schlage AD

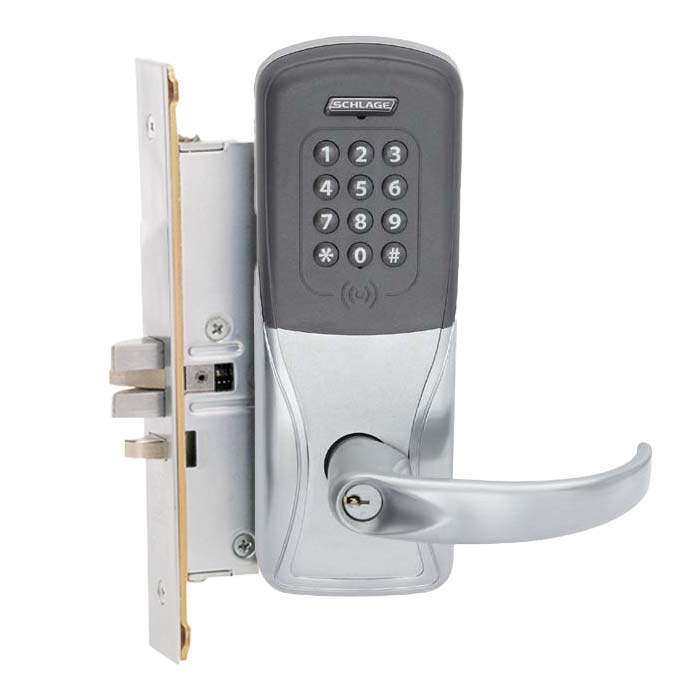

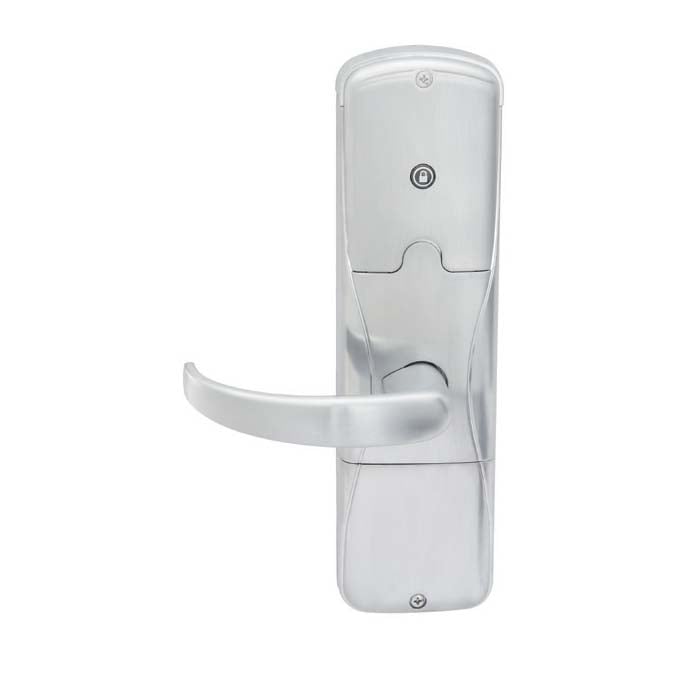

    A lock that follows the rules. The Schlage AD-201 FIPS 201-1 provides standalone keyless access for government facilities requiring FIPS 201-1 compliance. Easily upgrade reader and communication modules with AD-201's modular design without removing the lock from the door.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $449.98

    Call For Price
    • Mortise model – Cylindrical and Exit Trim models available
    • Satin Chrome with Rhodes Lever Standard
    • MTK multi-technology + keypad | proximity and smart card model
    • FIPS 201 compliant multi-technology reader for use with PIV and PIV-I credentials
    • Upgradable to an AD-401 FIPS 201-1 compliant wireless lock
    • Legal entry by PIN code; codes may be 3-6 digits in length
    • Supports up to 2000 users/audits with 50 locks or 1000 users/audits with 100 locks
    • Eliminates functional deficits of traditional mechanical lock systems
    • PC Programming  – Computer programming requires Schlage SMS Express software, and Handheld Device (HHD) (sold separately)
    • User data, lock configuration files upload to lock via HHD
    • Installs with drill and screwdriver into wood/metal door prepped for mortise
    • Audit Trail – Connect HHD to the lock to report on prior 5,000 events that allow you to track usage and events using Schlage SMS access control software
    • Report on mechanical key usage and battery status
    • Auto-locking classroom/storeroom lockset – Lockset is normally secure, inside lever always allows free egress
    • Valid toggle credentials on the exterior may be used to change to a passage or secured status
    • Set up to 8 unlock, and time zone schedules, as well as 32 holiday
    • Fits left and right swing doors
    • Step-by-step easy to follow installation and operating manual included
    • UL 294 listed, ANSI/BHMA A156.25 and ANSI/BHMA Grade 1 certified

    The Schlage AD-201 FIPS 201-1 Compliant Electronic Lock provides a standalone solution for applications requiring approval by the U.S. Federal Government under HSPD-12 for FIPS 201-1 compliance. AD-201’s modular design allows reader and communication modules to easily be upgraded without even taking it off the door. With a built-in multi-technology reader and keypad module, you can use FIPS 201 compliant PIV and PIV-I credentials. PIN code entry allows for access if you forgot or misplaced your card. Programming requires Schlage Express offline software and handheld device (HHD) (sold separately). Using the handheld, you can upload user data and lock configuration files to the lock as well as track usage and battery status. Set up to 8 unlock, time zone and 32 holiday schedules.

    Basic

    Manufacturer Allegion
    ANSI Rating A156.25, Grade 1 (Best)
    Battery Type 4 AA
    BHMA Rating A156.25, Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Audit Trail, Passage Mode, Scheduling
    Solution Electronic
    Warranty 1 Year Limited Manufacturer
    Function Classroom/Storeroom
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Smart Card/Fob
    Locking Device Mortise
    Brand Schlage AD

    Door requirements

    Door Handing Reversible
    Battery Life 2 Years
    Door Prep Mortise

    Security

    Code Length 3 to 6 Digits
    Credential Format 125 kHz Proximity, 13.56 MHz Smart Technology
    Credential Type Card
    Scanning Time ≤ 1 sec.
    Users 2,000 with Software

    Dimensions

    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 3/4 in.
    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in
