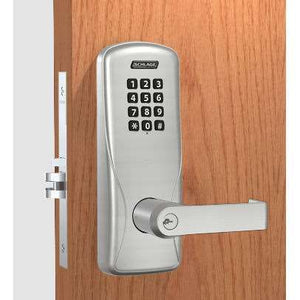

    Commercial Keyless Mortise Lock

    SKU: CO-100-MS70-KP-RHO-626-PD-C

    Schlage



    Manually programmable electronic lockset for mortise preps.
    The Schlage CO-100 series offers offline PC programmable stand-alone access control for your door. Manage users instantly, and save money when someone moves on because you won't be forced to cut new keys or re-key your cylinders. Well-suited for higher security openings, access points with larger amounts of user traffic, and applications where you need to track who goes in and out.

    Key Override

    Quantity left : 1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $160.55

    Call For Price

    This page is for the stocked model. We accept custom orders! To see the options, download ordering guide, then contact us for a quote.


    • Added security and convenience of electronic access control without the cost or complexity of a fully networked system
    • Tested to highest industry standards to ensure quality and reliability
    • Manually programmable classroom/storeroom function auto-locking mortise lockset; Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status
    • Battery Powered: Up to 2 yrs with 4AA (std. off the shelf; included)
    • Assign unique, sequential PIN codes (3-6 digits) to each user (up to 500), minimizing the number of mechanical keys issued which protects the integrity of your key system
    • Keypad Programming: Update users at the lock
    • Straight-forward & easy to follow installation and operating manual included
    • Mechanical key override using 6-Pin Schlage standard cylinder (compatible with multiple cylinder types). You may select a different lever cylinder type, including less standard Schlage cylinder, or IC (Inter-changeable Core) cylinder prep
    • Visual/Audible Communications: Tri-colored LED’s & audible indicators
    • Certifications: ANSI/BHMA A156.25 Grade 1, UL 294, UL 10 C, FCC Part 15, ADA
    • Base Model #: CO-100-MS70-KP-RHO

    GoKeyless is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Viewed by observers in the industry as the benchmark for stand-alone keyless access, the Schlage CO-100 series of manually programmable keyless mortise locks let you handle your day's business without worrying about keys.  A cost effective solution and leader in independent third party testing, Schlage CO-100 electronic mortise locks allow you to easily transition from mechanical security and secure your peace of mind.  With Schlage CO-100 locks you won't spend your day arranging to get your locks replaced or re-keyed, you won't waste time getting new keys made, and you won't agonize over the expense of these events, ever again.  Schlage CO 100 mortise locks let you streamline, safeguard, and simplify for less.  These locks are ideal for applications with a small to medium number of users, where convenience takes precedence, and where access if not properly controlled could create a risk.  Even more, for facilities looking to improve overall security, one of the agreed upon methods by security experts is to reduce the number of keys in circulation, which this lock will do.  With manually programmable pass-through, freeze, and normal-use lock command options built-in, the Schlage CO-100 keyless mortise locks give you what you need to keep your place safe and secure.  Nothing compares to the simplicity with which you install and use these locks too.  Even if you consider yourself a novice when it comes to door hardware, you can handle the Schlage CO100 lock.  By drilling a couple extra small mounting holes, you can retrofit your current mortise lock in minutes.  Give Schlage CO-100 a shot at reducing your lock servicing costs, enhancing daily productivity, and protecting your business today, you won't have any regrets.

    Did You Know? Schlage CO and AD locks are the first electronic locks to be UL (Underwriter's Laboratory) 294 certified.  This is a tougher certification to obtain, as it tests the electronics, not just the mechanical components.  Tests for accelerated aging, corrosion resistance, destructive attack, temperature, humidity, and rain are performed.  By meeting UL 294 standards, Schlage locks give you more reliability, and preserve your investment.

    GoKeyless™ is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer Allegion
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Passage Mode
    Solution Electronic
    Warranty 2 Year Manufacturer
    Function Classroom
    Storeroom
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Brand Schlage

    Door requirements

    Door Handing Reversible
    Battery Life 2 Years
    Door Prep Mortise, Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 500
    Scanning Time ≤ 1 sec.

    Dimensions

    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Inside Dimensions ["3.44 (W) x 10.10 (H) x 2.96 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Certifications ADA
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Weight 10 lbs
