  • Schlage F10 Elan

    Passage Door Lever Set

    SKU: F10ELA625



    Sharp angles, zero attitude. The Schlage F10 Elan passage lever gives hall and closet doors a crisp modern edge with Grade 2 strength and nothing to lock.

    Finish

    ⚠️ Low stock — order soon

    Call For Price
    Schlage F10 Elan - Bright Chrome
    - +
    • Passage function: both levers always unlocked, ideal for halls and closets
    • ANSI/BHMA A156.2 Grade 2 and A156.39 Residential Grade AAA certified
    • ADA compliant lever design
    • Installs with a screwdriver; adjustable latch fits 2-3/8" or 2-3/4" backsets
    • Fits doors 1-3/8" to 1-3/4" thick
    • Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
    • Seven finishes, from Satin Nickel and Matte Black to Aged Bronze

    Schlage

    The Schlage F10 Elan passage lever brings a striking, angular profile to the doors you use every day. As a passage (hall and closet) function, both levers are always free to turn, so there is nothing to lock. Use it on hallway, closet and pantry doors, or as the everyday handle below a deadbolt such as the Schlage BE365 keypad deadbolt in Camelot or Plymouth style.

    Installation takes just a screwdriver. The adjustable latch fits 2-3/8" or 2-3/4" backsets on doors 1-3/8" to 1-3/4" thick and comes with a round faceplate and a drive-in option.

    Elan is certified to ANSI/BHMA A156.2 Grade 2 and A156.39 Residential Grade AAA, and it is ADA compliant. UL-listed fire-rated configurations are available. Schlage backs it with a Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty.

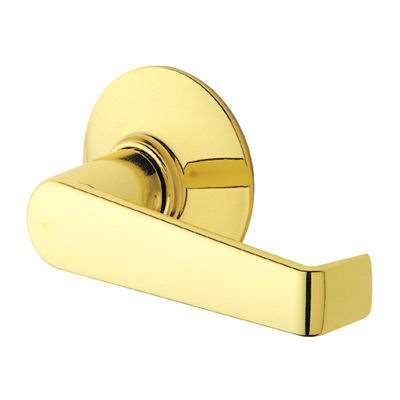

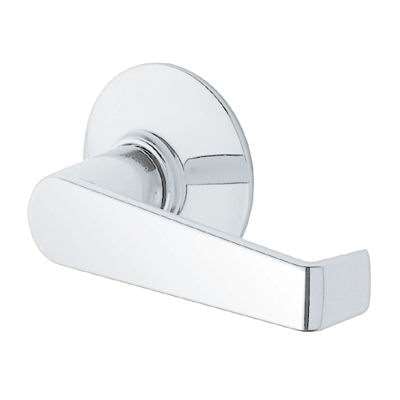

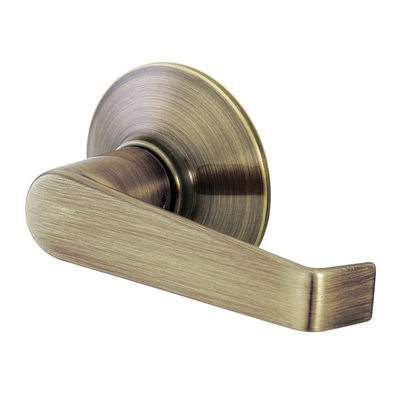

    Finishes: Bright Brass (605), Antique Brass (609), Satin Nickel (619), Matte Black (622), Bright Chrome (625), Satin Chrome (626), Aged Bronze (716).

    Complete the look with the matching Schlage F40 Elan privacy lever for bed and bath, the F51 Elan keyed entry lever and the F170 Elan dummy lever. You can also browse all Schlage F10 passage levers or the full Schlage F Series.

    Basic

    Manufacturer Allegion
    ANSI Rating A156.2, Grade 2 (Better)
    Finish Bright Brass, Antique Brass, Satin Nickel, Matte Black, Bright Chrome, Satin Chrome, Aged Bronze
    Function Passage
    Handle Type Lever Handle Door Locks
    Locking Device Cylindrical Latch
    Brand Schlage

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore
    Door Opening Standard
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/8 to 2 3/4 in. adjustable

    Security

    Fire Rating UL-Listed Fire-Rated Configurations Available
    Certifications ANSI/BHMA A156.2 Grade 2, ANSI/BHMA A156.39 Residential Grade AAA, ADA Compliant, UL-Listed Fire-Rated Configurations Available

    Dimensions
