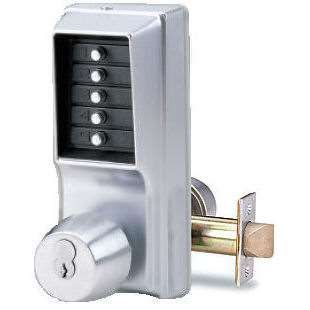

dormakaba Simplex 1041B

Name: dormakaba Simplex 1041B
SKU: GKIT-1041B26D41
Price: 520.5 USD
Availability: InStock

Pushbutton Knob Handle Door Lock

SKU: GKIT-1041B26D41

Durable, keyless security. The dormakaba Simplex 1041 pushbutton lock offers reliable access control for high-traffic areas. Auto-locking, passage mode, and key override options. Best compatible IC core for key override included.

$845.00 $845.00 $845.00 $520.50 SAVE 38%

Price includes a manufacturer surcharge due to tariffs effective May 1, 2025

Features
Description
Specifications

100% Mechanical HEAVY DUTY push button lock
Thousands of possible codes combinations
Auto-locking; however can be set to pass-thru mode using control key. Set pass-thru on interior side of lock
HEAVY DUTY Latch bolt with deadlocking plunger
Covers existing standard ASA 161 door hole
Fits left and right swinging doors
All hardware and instructions included with order
Low maintenance, no batteries or wires
Fits nearly all hinged doors
Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
Key override; furnished with a combinated (keyed up) Falcon brand 6-pin IC key core. Includes one IC core change key, and two operating keys. (Falcon is the widely used industry standard for IC cores, and the one we use here)
3-year manufacturer warranty

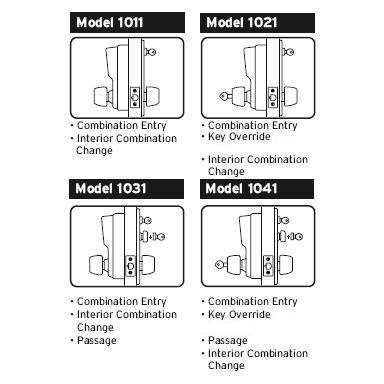

Simplex 1041B - Combination Entry with Key Override & Passage (Best compatible IC core included)
Tough-as-nails combination lock from the leader in top of the line security solutions, dormakaba. dormakaba has been making high quality security products for over 100 years. The Simplex 1000 Series is a stand-alone security lock that is highly weather resistant. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resistant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

Need this lock with a lever handle instead? Click here

Basic

Manufacturer	dormakaba USA Inc.
Lock Features	Passage Mode
Solution	Mechanical
Warranty	3 Year Manufacturer
Handle Type	Knob
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	dormakaba Simplex

Door requirements

Door Handing	Non-Handed
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	1 to 5 Digits
Code Capacity	1
Fire Rating	3-hour UL/ULC fire rating for A labeled doors

Dimensions

Exterior Dimensions	7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["9 (H) x 3 1/4 (W) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 4 in.
Exterior Dimensions	7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
Weight	7.25 lbs
