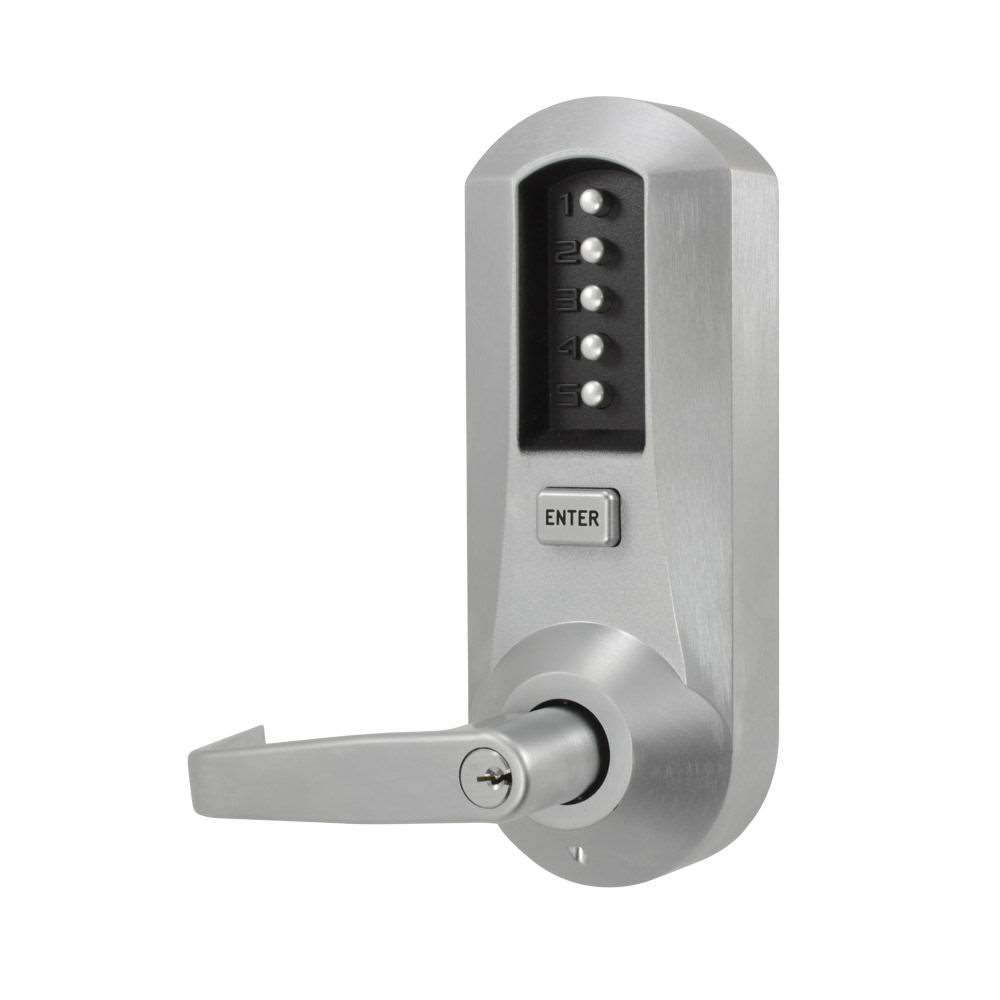

dormakaba Simplex 5031

Name: dormakaba Simplex 5031
Brand: GoKeyless
SKU: 5031XSWL26D41
Price: 502.15 USD
Availability: InStock

Extra Heavy-Duty Grade 1 Combination Door Lock

SKU: 5031XSWL26D41

Kaba Simplex

Keep it simple. The Simplex 5031 hits the top of the charts for security and reliability with easy keyless access. This extra heavy duty and fully mechanical keyless lock reduces the costs and problems associated with electronic maintenance, managing keys, and labor. Features key override and meets D.O.D. (Dept. of Defense) specifications.

MSRP $650.00

$502.15 - $604.62$483.69

Finish

Satin Chrome sold out

Dark Bronze sold out

Key Override

Standard Cylinder sold out

Schlage IC sold out

Sargent IC sold out

Best IC

Corbin IC

Medeco/ASSA/Yale IC sold out

Qty

Quantity left : 0

EXTENDED PROTECTION PLAN

3 Years of SHIELD Coverage

Product Replacement | Extended Return Policy | Price Protection

Terms and Conditions

$100.43

Add shield product

Call For Price

Features
Description
Specifications

ADA compliant lock
100% Mechanical push-button lock
Thousands of possible codes combinations
Change code with change tool (provided) from interior side to meet Dept. of Defense standards
Auto-locking; can be ordered with passage mode feature in 5051 model
Covers existing standard ASA 161 door hole
Extra Heavy Duty Latch-bolt with deadlocking plunger
Fits left and right swinging doors
All hardware and instructions included with order
Low maintenance, no batteries or wires
Fits nearly all hinged doors
Includes mechanical key override for emergency access
Backset: 2 3/4″ included (2 3/8″ available at checkout) How do I measure?
3-year manufacturer warranty

**Lock shipped standard with Schlage brand conventional cylinder for key override in 5021, 5031, and 5041 non-IC models.

Simplex 5031 - Combination Entry (change codes from interior; meets Dept. of Defense standards) & Key Override

Industrial strength combination lock from the leader in top of the line security solutions, Kaba Ilco. Kaba has been making high quality security products for over 100 years. The Simplex 5000 Series is an ANSI rated Grade 1 security lock that is highly weather resistant. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resistant, the Simplex series of PIN based locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	A156.2, Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Lock Features	Auto Relocking
Solution	Mechanical
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	Kaba Simplex

Door requirements

Door Handing	Reversible
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	1 to 5 Digits
Code Capacity	1
Fire Rating	3-hour UL/ULC fire rating for A labeled doors

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Weight	9.25 lbs

dormakaba Simplex 5031

Basic

Door requirements

Security

Dimensions
