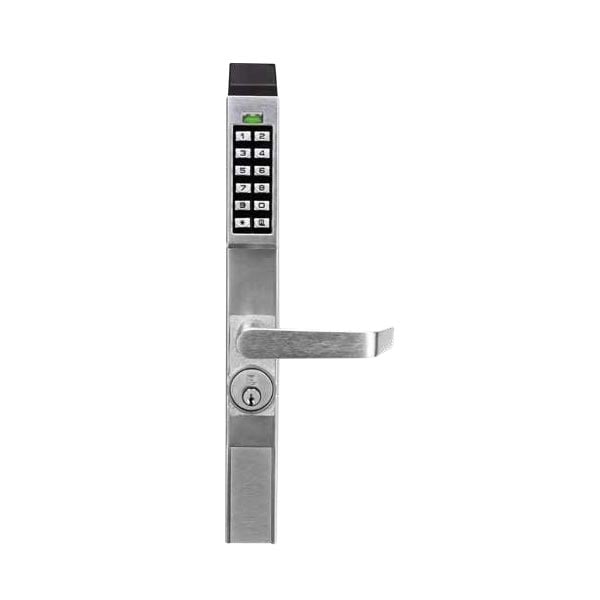

  • Trilogy Networx DL1300NW

    Narrow Stile Digital Lock

    SKU: DL1300NW/10B1

    Trilogy Networx

    A slim lock big on features with proven Alarm Lock durability. Trilogy Networx removes the hassle of physical lock access for audit trails, programming, and unlocking your door, saving you valuable time and money. Existing lock features are expanded through Networx, allowing for remote access capabilities such a system-wide free-passage mode, 10 second emergency global lockdown, key fob lock control and more.


    Quantity left : -1



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Call For Price
    • Pushbutton digital security-keypad
    • Battery Operation; Includes 4 AA batteries
    • Low battery audible and visual alerts
    • Commercial grade durability in a keyless entry system requiring no wiring
    • Retrofits traditional keyed-in aluminum store doors with Adams Rite 4510, 4900 Series, 1850, 1950, 4710, and 4730 locks
    • Outside trim only; inside exit paddle and deadlatch available at checkout
    • Program at lock or through Networx
    • Field proven Trilogy name; ensures long life and reliability
    • Enrolled users gain access by PIN
    • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
    • 5000 User Codes through Networx including: Master, Manager, Supervisor and Basic Users
    • Program passage mode, emergency and service codes, group-lockout, and group-enable codes.
    • Weatherproof performance
    • Proximity antenna housing molded of ultra high strength, impact resistant Lexan
    • Audit Trail with Time/Date Stamp for a printable record of all electronic activity
    • Real Time Clock Allows logging of events to within 1 second of accuracy
    • 40,000 Audit trail event log
    • Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
    • 2-year manufacturer warranty
    • 40,000 event time/date-stamped audit trail by user
    • 500 event schedule/real time clock (e.g. lock/unlock by time)

    Trilogy Networx

    • Communicate wirelessly via Ethernet, Bluetooth LE or 802.11B/G – eliminating door-to-door programming and audit trail retrieval and network-wide emergency lockdown features
    • Unsurpassed 5-year+ battery life, typical
    • Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications
    • In 10 seconds, activate emergency global lockdown from the Networx PC, any Networx lock or Keyfob RR-4BUTTON
    • System-wide free-passage enable or disable
    • Locks support up to 5000 users with 3-6 digit numeric PIN codes
    • On demand, in seconds, wirelessly change users, schedules, lock features or retrieve audit trails of up to 40,000 events/lock from any networked PC
    • Unattended programming updates or event log retrievals can be scheduled, saving manpower and productive time
    • Seamless upgrade path for original Trilogy users – intermix with existing Trilogy standalone lock installations and share the same DL-WINDOWS database
    • Secure 128bit AES PC encryption and proprietary RF-link lock communication encryption
    • Remote System Management – VPN-connection/remote capability for accessing the Networx system and controlling 63 locks on a single gateway to a maximum of 2000 locks with 32 gateways
    • Wireless locks are fully keypad programmable and can be up and functioning before their wireless network is configured – IT departments don’t have to coordinate with physical security or locksmiths
    • Free Alarm Lock DL-WINDOWS software doesn’t require a dedicated computer, special computer network, or costly server software licenses – it simply runs as a secure Microsoft Windows-based application

    Requires a Networx Gateway for remote and wireless Networx features

    Alarm Lock doesn’t make anything second rate, including this new Networx equipped digital lock for aluminum narrow-stile doors. If you own or manage a fitness center, storefront, strip-mall, or office building it’s time to stop spending time and money tracking keys, re-keying and replacing inferior locks with other inferior locks. Invest in this state-of-the-art, keyless entry system which pays you back each time you avoid a call to the locksmith. Wirelessly access lock features through Trilogy Networx, such as audit trails, scheduling, user management, passage mode, and the 10 second global emergency lockdown, right from your desktop or laptop. This commercial grade system mounts to your door right from the box by drilling a few extra holes. If you’re comfortable putting a door knob in at your home, you can handle this with ease. The DL1300NW is a must for any business with aluminum frame glass entry doors.

    Requires a Networx Gateway for wireless Networx features


    Manufacturer Alarm Lock
    Battery Type 4 AA
    Event Scheduling 500|Automated Unlock/Lock
    Keyway Schlage SC1
    Lock Features Old Audit Trail|Passage Mode|Scheduling|Timed Codes
    Radio Frequency 900MHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Adams Rite
    Brand Trilogy Networx

    Door requirements

    Door Handing Reversible
    Battery Life 80,000 Cycles
    Door Prep Through-Bolt Hole(s)


    Code Length 3 to 6 Digits
    Code Capacity 5,000
    Timed Entry Allowance 3 to 15 sec.
    Wireless Protocol IEEE 802.11b/g
    Wireless Range Up to 328 ft. indoors


    Door Thickness Minimum 1 3/4 in.
    Backset 1 1/2 in.|1 1/8 in.
    Dimensions 14 3/8 (H) x 1 5/8 (D) x 1 3/4 (W) in.
    Weight 7 lbs
