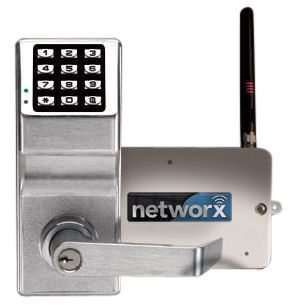

    Trilogy Networx DL6100

    Commercial Remote Control Door Lock

    SKU: DL6100/26D

    Alarm Lock Trilogy and Trilogy Networx



    The Trilogy Networx DL6100 provides advanced, performance driven security and convenience in a stand-alone, affordable keyless entry system. Manage doors and users centrally from one computer. No more need for wiring out to doors, or channeling wire through doors to electrify the opening. Suitable for use in offices, hospitals, movie theaters, and more.

    Please note: Wireless hub pictured is not included. It is available for purchase separately.

    Key Override
    Finish

    Quantity left : -3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $195.02

    Call For Price

    GK Care Technical Support

    Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & Programming

    Let us do the work for you. We get you up and running. Read More

    • Heavy-duty ANSI Grade 1 wireless door lock
    • Cylindrical deadlatch locking mechanism
    • Supports up to 5000 users via 3-6 digit PINs
    • Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock, or the network’s PC
    • Operates on (4) C size batteries that are included
    • Unsurpassed 5-year+ battery life; no supplementary power supplies needed
    • Wireless programming requires DL-Windows software (Download FREE at Alarmlock.com website) and Networx Gateway (sold separately)
    • Manage up to 63 locks per AL-IME2 gateway, and 2000 locks system wide using gateways and wireless expanders
    • On demand user, and user group scheduling (500 timed schedule capacity)
    • On demand audit trail reporting with time/date stamp (Prior 35,000 events)
    • Offline programming may be done at the DL6100’s 12-button keypad
    • T2, and T3 Trilogy customers who maintain user and door information can continue to use their existing DL-Windows database to seamlessly manage Networx.  Add one new Networx lock, or 2000 to existing system
    • Uninterrupted Door Access Usage:  Lock retains all programming and data even in the event of power outage or server offline occurrence
    • Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
    • Remote System Management:  Accomplished with VPN/remote capability
    • 1 Button remote release (sold separately)
    • Weatherproof for installation in harsh settings
    • Key Override:  Includes standard 6-Pin cylinder with Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
    • Satin chrome BHMA US26D finish
    • Handing:  Field reversible
    • Backset:  2 3/4″ provided (2 3/8″ sold separately at checkout)

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy Networx dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    No need to get the IT department involved with Trilogy Networx.  As easy to setup as installing a cordless telephone, both small businesses and multi-location companies find Trilogy Networx perfect for capitalizing on the benefits from online access control.  Trilogy Networx eliminates signing keys in and out, maintaining key inventories, and worrying about unaccounted keys. The Networx DL6100 delivers high-level protection, improved oversight, and maximum value at a minimum cost.  Building on the platinum-plated reputation of the Trilogy T2, and T3 access control locks, Trilogy Networx introduces advanced, performance driven security and convenience in a stand-alone, affordable keyless entry system to help you eradicate the security hazards posed by door keys.  With a few clicks, Networx lets you manage your site’s doors and users centrally from one computer.  Physically maneuvering from door to door to delete an employee’s credential, lockout all users, and pull an audit trail gets eliminated – you can do it in near real-time (under 10 seconds) at your PC.  Requiring NO wiring, NO splitters/repeaters, NO hardwiring to host/server, NO extra power supplies, and NO controllers/panels, Trilogy Networx locks and gateway modules contain an integral receiver for super-efficient 900MHz bi-directional communications.  The result?  Longer range, and less interference.  This provides you a comprehensive online access control system without the need for wiring out to doors, or channeling wire through doors to electrify the opening.  Beyond the evident time saving features of having mainstream access control functionality through a few strokes on your keyboard, you can do never before things with Networx.  In the event of a security breach, or environmental emergency, this access control system lets you execute a network wide lockdown/unlock command so you can track and control who gets access and where.  Life-saving technology such as this can mean the difference between a total disaster or an averted one.

    Hospitals, Institutions, Restaurants, Movie Theaters, Airports, Retail, Offices, Pharmacies, and more!

    Basic

    Manufacturer Alarm Lock
    ANSI Rating Grade 1 (Best)
    Battery Type C cell
    Lock Features Audit Trail, Lockdown, Passage Mode, Remote Control, Scheduling, Timed Codes
    Radio Frequency 900MHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy
    Trilogy Networx

    Door requirements

    Door Handing Non-Handed
    Battery Life 5 Years
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 5,000
    Fire Rating UL 3 hr. Latch
    Key Override Best IC, Standard Cylinder

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 8 lbs
