  • Trilogy PDL1300ET

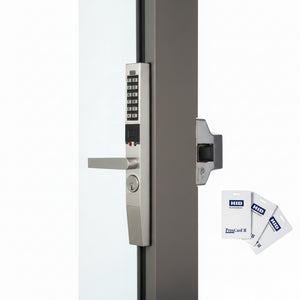

    Narrow Stile Key Card with Keypad Exit Trim

    SKU: PDL1300ET/26D

    Alarm Lock Trilogy

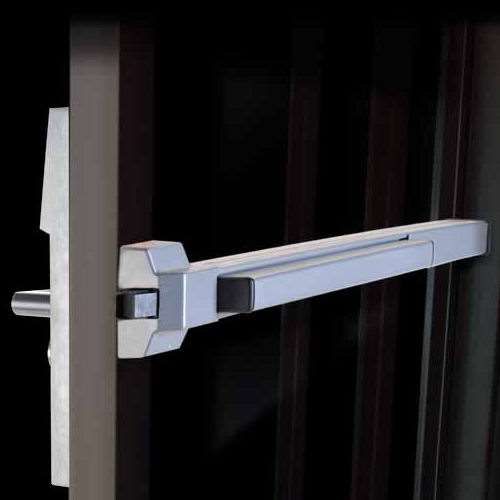

    Panic bar/exit device sold separately.



    The Trilogy PDL1300ET provides a keyless solution for your perimeter doors. This thoughtfully designed Trilogy push button lock with entry tracking, results in doors being locked down 24/7 with advanced security protection that eliminates the liabilities associated with doors not being locked.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $153.78

    Call For Price
    • Wire-free, heavy-duty, card access control system for narrow stile exit doors
    • Retrofits traditional keyed-in aluminum glass panic door applications
    • Exit Device Compatibility:  Jackson 1095 (must use DL1325DL1350), Von Duprin 33, Dorma 5300, Arrow S4803, DCI 1200, DCI 1300, & Corbin ED7000, ED4000. (NOTE: With Von Duprin devices, the DL/PDL1200/1300ET only works on a RHR door. On a LHR door the lever must be lifted for it to operate.  Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob) (You may use your own bar, or purchase one from us at checkout – we offer the Von Duprin 33 and Arrow S4803 models for narrow stile doors)
    • Sold as outside trim only. (Panic bar not included)
    • Must purchase separate TP assembly; compatible tailpiece that connects the PDL1300ET to your existing bar.  (Order TP Kit separately at checkout)
    • Field proven familiar Trilogy name
    • Enrolled users gain access by card only, PIN only, or highest security – card + PIN
    • 2000 PIN code capacity
    • Program at lock, or using Windows PC based software
    • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
    • Multi-level user setup:  Master, Manager, Supervisor and Basic Users
    • Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
    • WeatherPROOF performance
    • 3-15 seconds allowable entry time, user definable – how long user has once they enter pin before door re-locks behind them
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail with Time/Date Stamp for a printable record of all electronic activity – use the DTM hand held or a laptop computer to download audit trail data from lock (PC and DTM interface cables required – available at checkout)
    • Real-time clock allows logging of events to within 1 second of accuracy
    • Compact styling
    • Simple installation; instructions included
    • Long battery life; uses 2 standard off the shelf lithium 3V batteries, included
    • Visual and audible low battery alerts
    • Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Perimeter protection has never been easier! No more left open or propped open doors!  An effective deterrent against theft.  This thoughtfully designed Trilogy dual PIN/Prox card lock with record keeping results in doors being locked down 24/7, and creates a strong barrier against internal shrinkage.  Using unique tokens (PIN or card) for entry, you also save time not having to distribute keys when you bring on a new hire, as well as save time not having to collect keys when an employee leaves.  With theft being among the top concerns for business owners, security officers, and facility managers, it’s crucial the necessary steps are taken to strengthen security.  Until now, extra measures that enhance security have meant a reduction in workforce convenience.  That’s why Trilogy locks are the perfect solution.  Advanced security protection that eliminates the liabilities associated with doors not being locked, combined with keyless entry, enables workers to come and go safely, and quickly, all the while getting more done.

    Basic

    Manufacturer Alarm Lock
    Battery Type 3-Volt CR123A Lithium
    Event Scheduling 500, Automated Unlock/Lock
    Keyway Schlage SC1
    Lock Features Audit Trail, Passage Mode, Scheduling, Timed Codes
    Radio Frequency 125 kHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Reader Type Prox Card/Fob
    RFID
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Panic/Exit
    Exit - Rim
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Reversible
    Battery Life 65,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Key Override Yes
    Timed Entry Allowance 3 to 15 sec.
    Users 2,000

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Dimensions 14 3/8 (H) x 1 5/8 (D) x 1 3/4 (W) in.
    Door Stile Width Minimum 2 in.
    Weight 7 lbs
