  • Yale Assure YRL226-NR

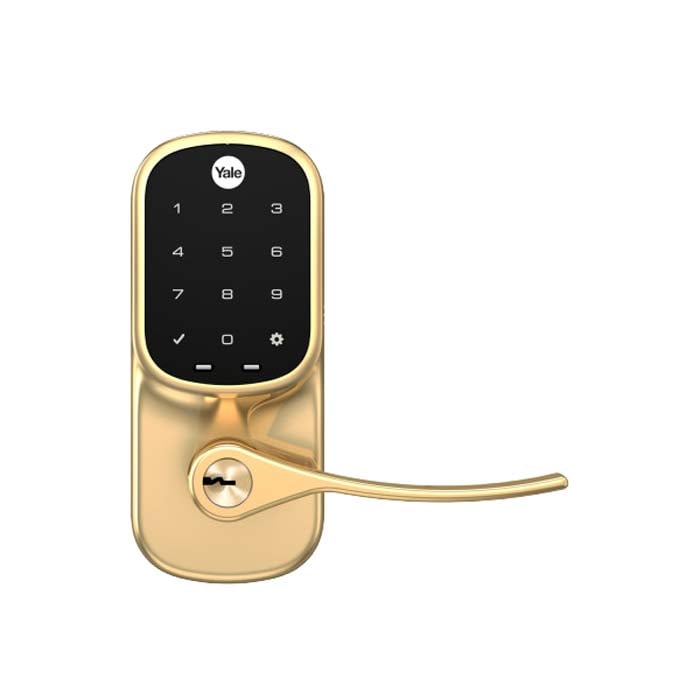

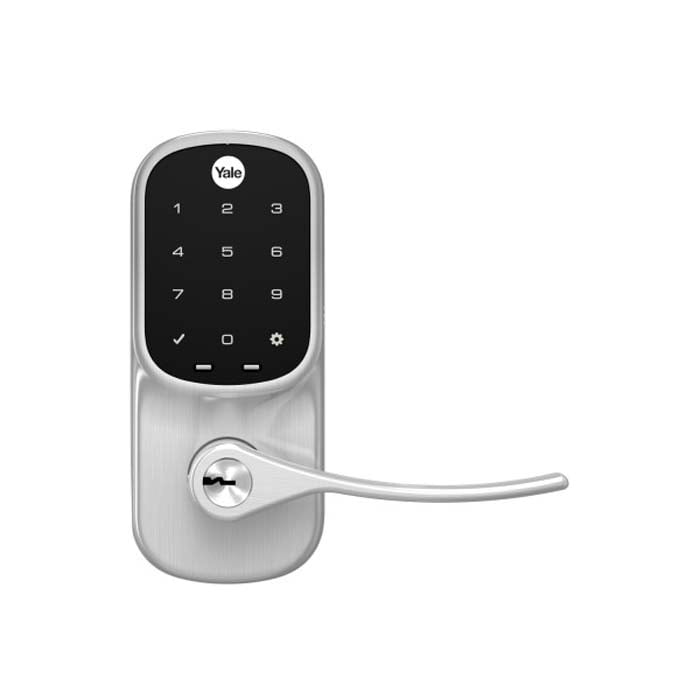

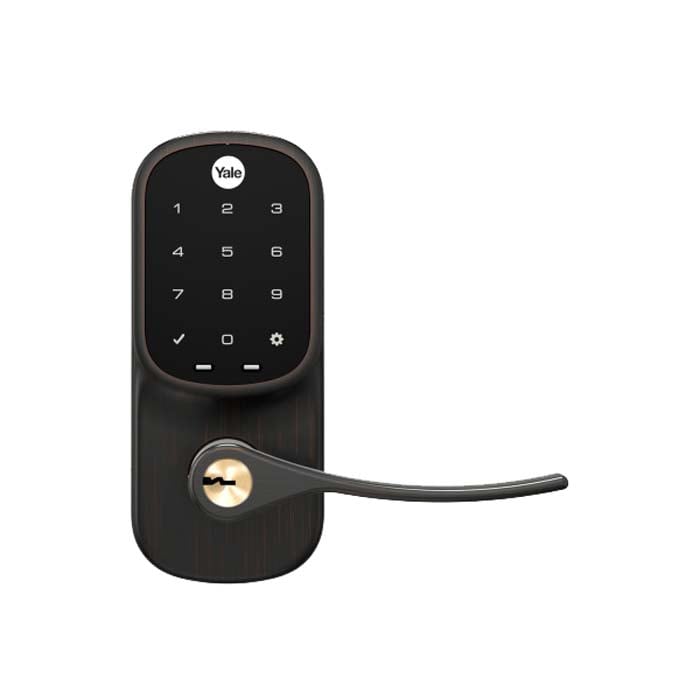

    Electronic Touchscreen Lever Lock

    SKU: YRL226-NR-619

    Yale Home



    No keys, no problems! Yale YRL226 electronic touchscreen lever lock provides keyless freedom by using your code instead. Create and share digital codes for friends and family right from your smartphone.

    Finish

    In Stock

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $41.16

    Call For Price
    • Touchscreen keypad with backlit numbers that won’t wear off – Pushbutton model available
    • 9V battery backup terminal
    • Manage up to 25 unique codes to share with friends and family
    • Weather Protection Gasket
    • One-touch locking and keypad wake-up
    • Tamper Resistant Battery Cover
    • Tamper Alert – audible alarm sounds if there is an attempt to forcibly remove the lock
    • Automatically relocks after 30 seconds
    • Key Override – Yale KW-1 5-pin brass cylinder supplied, 2 keys provided
    • Simple to install on standard doors and replaces your existing deadbolt in minutes with just a screwdriver
    • Certified ANSI/BHMA A156.36, Grade 2
    • Lifetime limited warranty for finish and mechanical, one year electronics

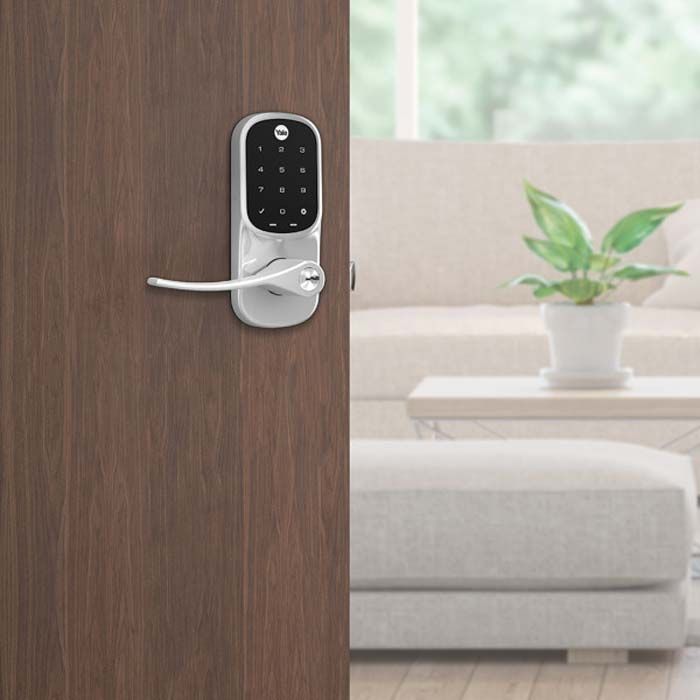

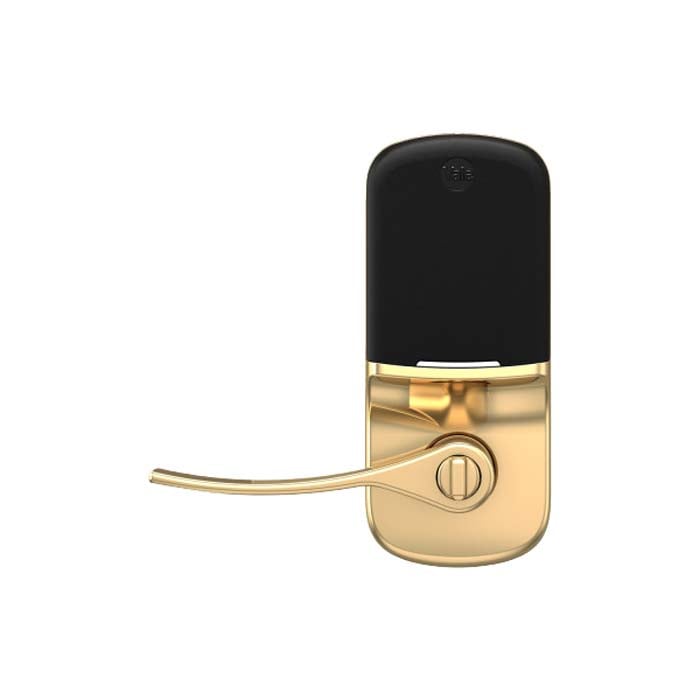

    Built for doors that don’t need a deadbolt, the Yale Assure Lever Lock is well suited for side entryways, home to garage doors, basements and most interior doors. Equipped with a touchscreen keypad featuring backlit numbers that won’t wear off, you will always be able to enter your code correctly each time. You can create up to 25 codes to share with anyone who needs to gain entry to your door. The lock is set to automatically relock in 30 seconds upon closing. Press the lock button to wake up your keypad or lock your door. If there is an attempt to forcibly remove the lock, an audible alarm will sound. Locked out with no power? Using a 9V battery, you can power the backup terminal on the underside of the lock to give it enough juice to enter your code and your door or use the keyed override with two keys included. The Assure Lever can be used as a standalone keypad lock, or integrated into your smart home network by installing a Yale Z-Wave Network Module to the lock and connecting to a controller. This will enable remote management of your smart home or lock, and for you to receive alerts on your smartphone from anywhere.

    Assure Lever with Yale Z-Wave Network Module already installed available

    Basic

    Manufacturer Yale
    ANSI Rating A156.36, Grade 2 (Better)
    Battery Type AA
    BHMA Rating Grade 2 (Better)
    Keyway Kwikset KW1
    Lock Features Auto Relocking, Battery Backup, Privacy, Tamper Alerts
    Solution Electronic
    Warranty 1 Year Electronic, Limited Lifetime Mechanical and Finish
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits

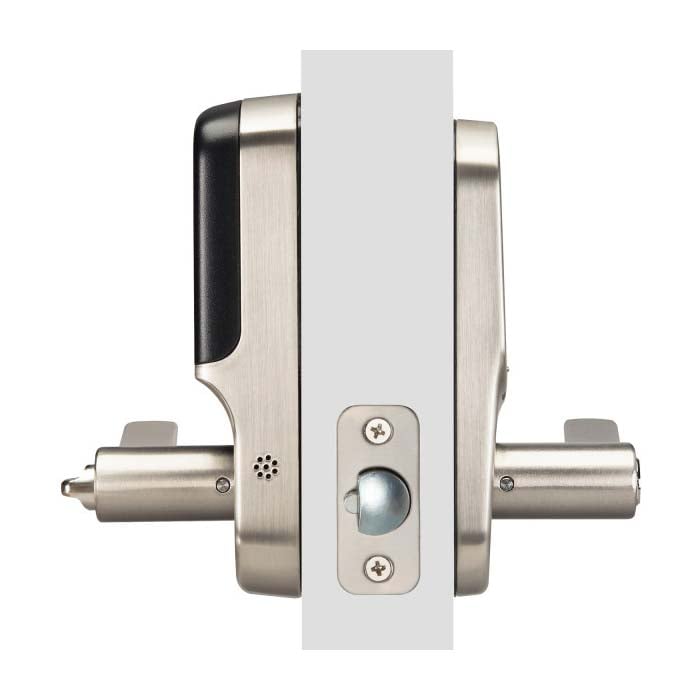

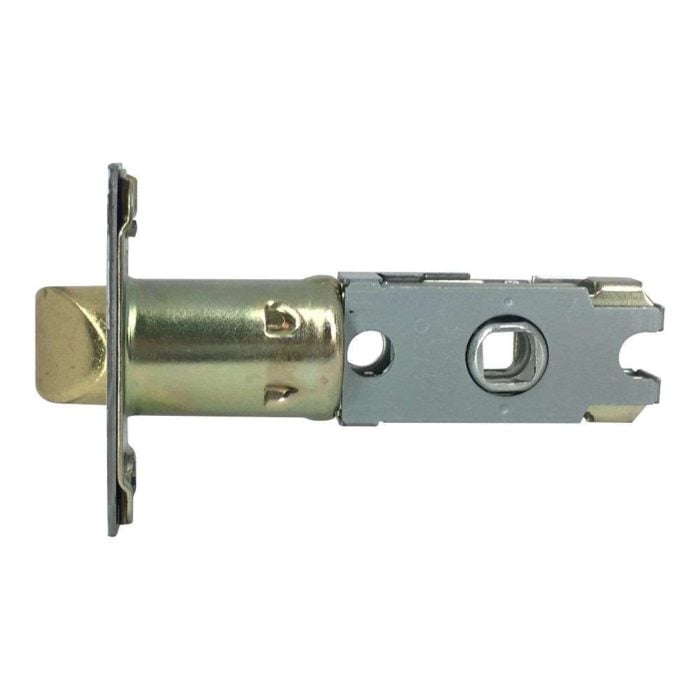

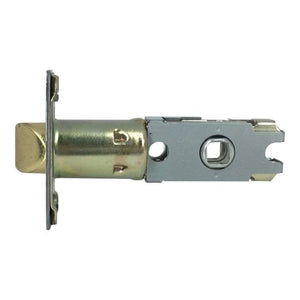

    Locking Device Cylindrical Latch
    Brand Yale Home

    Door requirements

    Door Handing Universal
    Battery Life 1 Year
    Battery Temperature Range 14°F to 131°F
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.

    Security

    Code Length 4 to 8 Digits
    Code Capacity 25

    Dimensions

    Exterior Dimensions 6 1/16 (H) x 2 3/4 (W) x 1 3/8 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset Adjustable
    Door Stile Width Minimum 3 1/2 in.
    Exterior Dimensions 6 1/16 (H) x 2 3/4 (W) x 1 3/8 (D) in.
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight 5 lbs


    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
