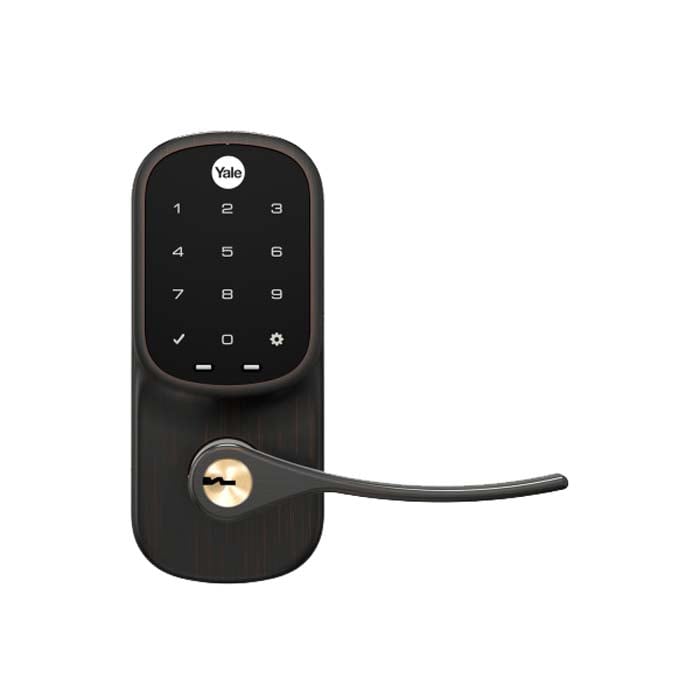

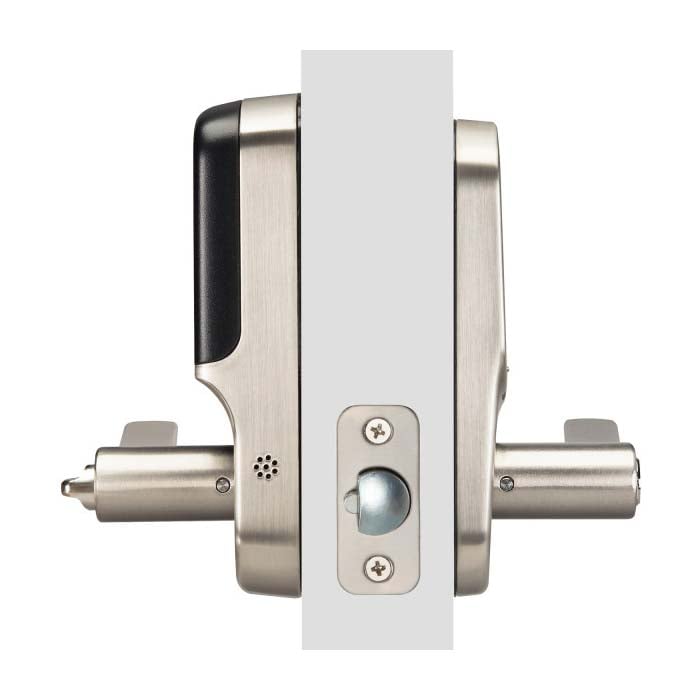

  • Yale Assure YRL226-ZW2

    Z-Wave Plus Touchscreen Lever Lock

    SKU: YRL226-ZW2-619

    Yale Home

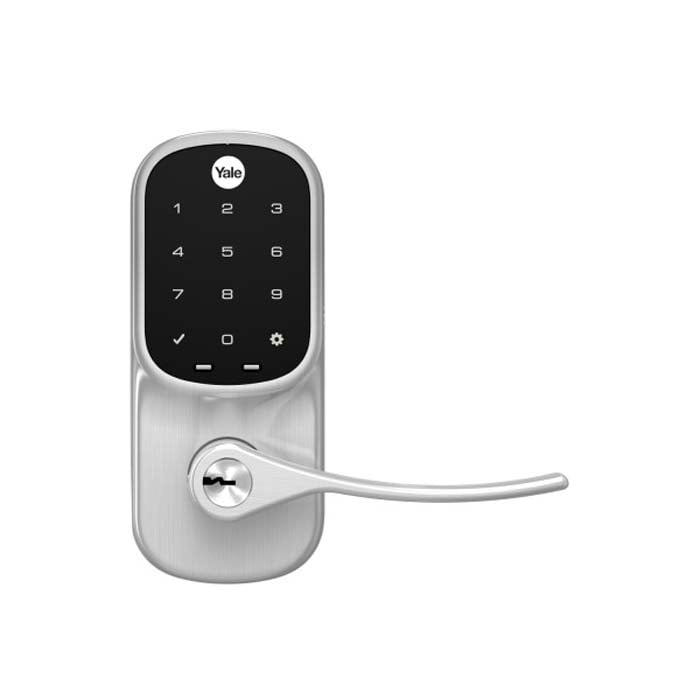

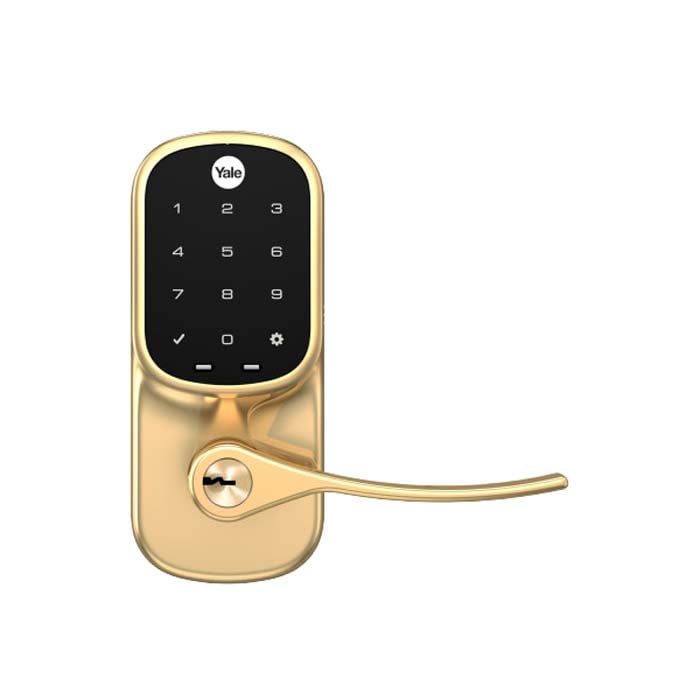

    No keys, no problems! The Yale YRL226 electronic touchscreen keypad lever lock provides keyless freedom by using your smartphone. Create and share digital codes for friends and family from anywhere. Program lighting scenarios upon opening your door by connecting to your Z-Wave network.


    In Stock



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Call For Price

    Yale Assure Lock

    • Touchscreen keypad with backlit numbers that won’t wear off – Pushbutton model available
    • 9V battery backup terminal
    • Manage up to 250* unique codes to share with friends and family
    • Weather Protection Gasket
    • One-touch locking and keypad wake-up
    • Tamper Resistant Battery Cover
    • Tamper Alert – audible alarm sounds if there is an attempt to forcibly remove the lock
    • Automatically relocks after 30 seconds
    • Key Override – Yale KW-1 5-pin brass cylinder supplied, 2 keys provided
    • Simple to install on standard doors and replaces your existing lever or knob lock in minutes with just a screwdriver
    • Certified ANSI/BHMA A156.36, Grade 2
    • Lifetime limited warranty for finish and mechanical, one year electronics

    *When connected to a Z-Wave controller, 25 user codes when standalone

    Smart Home Ready

    • Z-Wave Plus module installed
    • Enroll into a Z-Wave controller and alarm systems for remote management
    • Receive notifications on your smartphone when someone unlocks your door right on your smartphone*
    • Compatible with Ring, Samsung SmartThings, Wink, Iris, Ezlo Plus, BeHome247 and more

    *Assure Lock must be paired to compatible Z-Wave controller or alarm panel

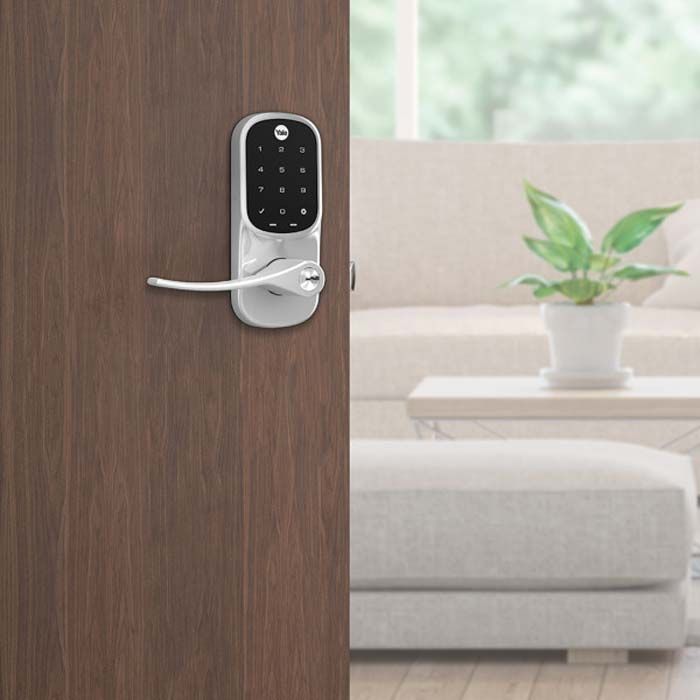

    Built for doors that don’t need a deadbolt, the Yale Assure Lever Lock is well suited for side entryways, home to garage doors, basements and most interior doors. The Assure Lever can be used as a standalone keypad lock, or integrated into your smart home network with the included Z-Wave Network Module installed in the lock and connecting to a Z-Wave controller. Compatible with Ring, Vera, BeHome247, Iris, Samsung SmartThings, Wink and more! This will enable remote management of your smart home or lock, and for you to receive alerts on your smartphone from anywhere. If there is an attempt to forcibly remove the lock, an audible alarm will sound. Equipped with a touchscreen keypad featuring backlit numbers that won’t wear off, you will always be able to enter your code correctly each time. You can create up to 250 codes when connected to a Z-Wave controller(25 when standalone) to share with anyone who needs to gain entry to your door. The lock is set to automatically relock in 30 seconds upon closing. Press the lock button to wake up your keypad or lock your door. Locked out with no power? Using a 9V battery, you can power the backup terminal on the underside of the lock to give it enough juice to enter your code and your door or use the keyed override with two keys included.


    Manufacturer Yale
    ANSI Rating A156.36, Grade 2 (Better)
    Battery Type AA
    BHMA Rating Grade 2 (Better)
    Keyway Kwikset KW1
    Lock Features Old Remote Control, Z-Wave Plus
    Solution Electronic
    Warranty 1 Year Electronic, Limited Lifetime Mechanical and Finish
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits

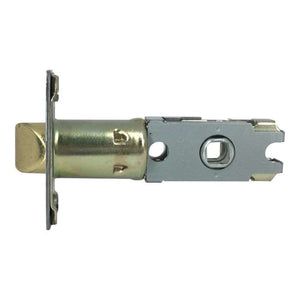

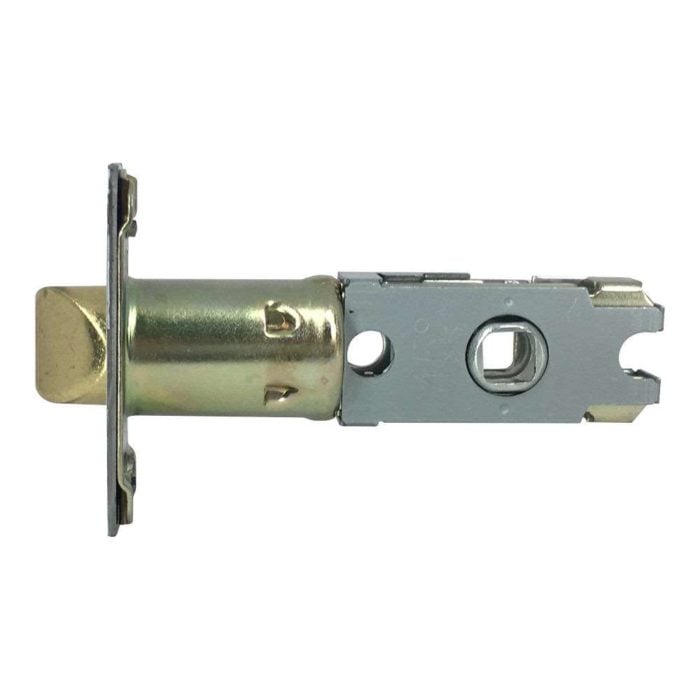

    Locking Device Cylindrical Latch
    Brand Yale Home

    Door requirements

    Door Handing Universal
    Battery Life 1 Year
    Battery Temperature Range 14°F to 131°F
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.


    Code Length 4 to 8 Digits
    Code Capacity 250
    Wireless Protocol Z-Wave Plus
    Wireless Range 100 ft.


    Exterior Dimensions 6 1/16 (H) x 2 3/4 (W) x 1 3/8 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset Adjustable
    Door Stile Width Minimum 3 1/2 in.
    Exterior Dimensions 6 1/16 (H) x 2 3/4 (W) x 1 3/8 (D) in.
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight 5 lbs
