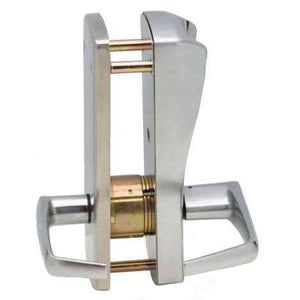

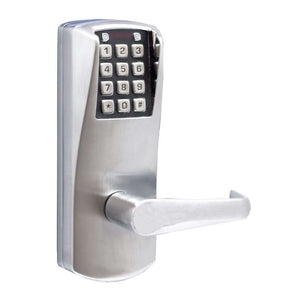

Kaba PowerPlex P2031LL626
By harnessing power created from the simple pump of the handle, PowerPlex reduces battery waste and drives down access control maintenance costs to virtually zero. It’s hard to imagine, but even without any activity at the lock, PowerPlex holds a full charge for up to 10 weeks. With a sealed unit and durable finish the lock withstands a broad range of climates and is perfect for outdoor and remote locations.
Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!
- Self-Powering with PowerStar Technology: No batteries to end up in a landfill!
- How It Works: Enter your 4-8 digit PIN sequence, and turn lever to open door
- 100 Users Supported: Millions of possible code choices
- RoHS (Restriction of Hazardous Substances) Compliant: Manufactured free of toxic metals
- Bump and Pick Proof: May be ordered with key override here
- Satin Chrome Finish: Satin brass available upon request
- 3 Operation Modes: PIN access, lockout, & passage
- Lockout Mode: De-activates all regular user and manager codes, excluding Master code
- Passage Mode: Toggle on/off, or pre-program to re-lock after a certain number of hours
- Full-size ADA Lever: Field reversible for left and right swing doors
- Perfect for Wood and Metal Doors: Installation screws for both included
- Program Via the Lock’s Keypad
- Rugged Clutch Mechanism: Ensures long life & durability
- Four Authority Levels: Master, Manager, User and Service (Service users allowed only ‘one-time’ access, or access for 1-24 hours)
- Auto-Locking: Program into passage mode at any time by following command-sequence
- Free Exiting at All Times with Inside Lever
- Patented LectroBolt: Ease of Installation
- Retrofits Cylindrical Latch Locksets
- Backset: 2 3/4″ included (2 3/8″ available at checkout) How do I measure?
- Pick & Bump Proof. See standard keyed and I/C prep
- 3-Year Manufacturer Warranty; Built-in warranty counter in lock memory
8 15/16 (H) x 3 5/16 (W) x 3 3/16 (D)
8 7/8 (H) x 3 1/4 (W) x 2 1/4 (D) in.
|Door Thickness Minimum|
1 3/8 in.
|Door Thickness Maximum|
2 1/2 in.
4 to 8 Digits
Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
|Door Stile Width|
Minimum 5 in.
Indoor/Outdoor, Windstorm approved/certified
|Outside Operating Temperature Range|
-31° to 151°F (-35° to 66°C)
Solid cast exterior housing, Solid cast, ADA-compliant levers
2 3/4 in.
Keypad – Digits
Lever Handle Door Locks
A156.25, Grade 1 (Best)
Grade 1 (Best)
3 Year Manufacturer
Share your thoughts!
Let us know what you think...
What others are saying
Continue as a Guest
Customer Questions & Answers
- Q Does this work with an inside panic bar and if so, what brands and models? answer nowAsked by March 22, 2017 2:02 PMonANo, you will need the P201U version of this lock for panic bars. All models are listed in the specs of the lock. However, this is a special order item so you would need to speak with our sales staff which can be reached at 937-247-9327 opt. 1.
- Q Am I able to see a log of who entered and at what time? answer nowAsked by January 20, 2017 3:24 PMonA
Yes, as long as you purchase an M-Unit kit and download the free Kaba 300 Software you can program and audit the lock. If all you want to do is audit the lock you can purchase the EP-LL-Auditor Kit.
- Q Can this lock be used on outdoor meter gates? Do you have weld in boxes for it? answer nowAsked by November 26, 2016 11:45 AMonA
Yes this will work for a gate as the exterior and interior are weatherproof. You will want the Keedex K-BXE2000.
- Q Is this easy to install? How many users/codes? answer nowAsked by October 17, 2016 11:07 PMonAThe lock provides 100 user codes. As for the install it is not overly difficult if you have some mechanical know how and are comfortable with a screwdriver and drill. So if you follow the directions and use the provided template to install it should go well.
James Levendahl –
Installed several of these for a large chain company at their warehouse. Easy to install, and set up. They love them.
