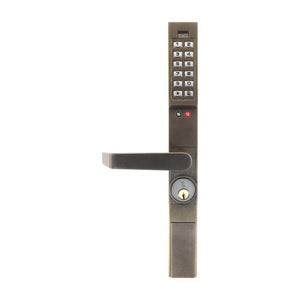

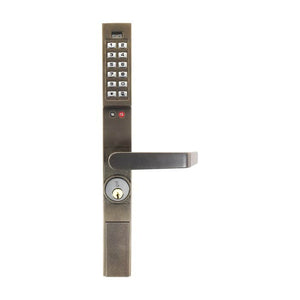

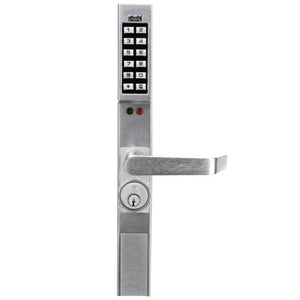

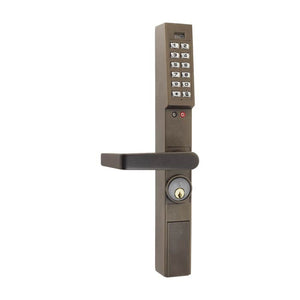

Trilogy DL1300

Narrow Stile Access Control Lock


Advanced stand-alone keypad security for aluminum frame glass office and storefront doors.

SKU: DL1300
Your Current Selections:
Your Current Selections:

Fitness Centers/Gyms, Storefronts, Managed Properties, Showrooms, Retail, Airports, Restaurants, Campuses, Movie Theaters, Schools, Offices, Pharmacies

  • Wire-free, standalone lock
  • Retrofits traditional keyed-in aluminum store doors with Adams Rite 4510, 4900 Series, 1850, 1950, 4710, and 4730 locks
  • Outside trim only.  Inside paddle hardware and deadlatch (also available in DL1325 and DL1350 deadbolt models) are available at checkout
  • Field proven familiar Trilogy name
  • 2000 user capacity
  • Program at lock, or using Windows PC based software
    • Must purchase the PC interface cables at checkout in order transfer your user data to the lock and download and review your audit trail.  (software CD included with purchase of cables, or can be downloaded from Alarm Lock website)
  • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
  • Multilevel user setup:  Master, Manager, Supervisor and Basic Users
  • Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
  • WeatherPROOF performance
  • 3-15 seconds allowable entry time, user definable; how long user has once they enter pin before door re-locks behind them
  • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
  • Audit Trail with Time/Date Stamp for a printable record of all electronic activity – use the DTM hand held or a laptop computer to download audit trail data from lock (PC and DTM interface cables required – available at checkout)
  • Real-time clock allows logging of events to within 1 second of accuracy
  • Simple do-it-yourself installation; instructions included
  • Long battery life; uses 2 standard off the shelf lithium 3V batteries, included
  • Visual and audible low battery alerts
  • Key override; includes a 1 3/8″ long  mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders.
  • 2-year manufacturer warranty

GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Schedule access times and combat lost keys and lockouts with the DL1300.  It features timed lock/unlock, audit trail, and the ability to use a convenient DTM data transfer module to upload your user schedules from your desktop or laptop computer.  This electronic access lock is a cost-friendly key management solution for your narrow stile, aluminum glass doors.  A one-time financial commitment gets you a powerful, 2000 user capacity, easy to maintain keyless entry system that will pay for itself each and every time you don’t have to re-key or change your locks.


14 3/8 (H) x 1 5/8 (D) x 1 3/4 (W) in.

Door Thickness

1 3/4 in.

Battery Type

3-Volt CR123A Lithium

Battery Life

80,000 Cycles

Code Length

3 to 6 Digits

Code Capacity


Timed Entry Allowance

3 to 15 sec.

Event Audit Trail


Event Scheduling

500, Automated Unlock/Lock


Vandal Resistant, Zinc Alloy



Outside Operating Temperature Range

-31° to +151°F (-35° to +66°C)

Door Handing


Door Prep

Through-Bolt Hole(s)

Door Stile Width

Minimum 2 in.


Alarm Lock



Lock Features

Audit Trail, Passage Mode, Scheduling

Handle Type

Lever Handle Door Locks

Door Opening

Narrow Stile

Locking Device

Adams Rite

Access Type

Key, Keypad – Digits


1 1/2 in., 1 1/8 in., 31/32 in.

Key Override



Schlage SC1


7 lbs


2 Year Manufacturer


Single Factor

Share your thoughts!

4.88 out of 5 stars

16 reviews

Let us know what you think...

What others are saying

  1. Great For Office Building!

    Cody Olmstead (verified owner)

    I ordered a couple of the DL1300 style locks for our office building’s “common doors”. These are great to program codes for our lessees. Having the audit trail and PC cables to manage the codes and event log is a must if you are getting multiple locks. It makes programming a breeze! Plan to order more. Would highly recommend, and the customer service is wonderful!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Great Product

    DARYL WIZINSKY (verified owner)

    Love it. Works amazing

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Holiday Cruise and Travel (verified owner)

    It has been a great experience. The tech help (Skip) has been great as we have some complicated scenarios on two different locks. We still have a couple of issues to work out but that is due to our requirements. The locks have worked great and better then expected.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Ilya from Michigan

    Great product!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. Joye from Texas

    Glad to have found this option for my storefront. Did have to professionally install but wasn’t due to lock being difficult more so the door itself.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Mike from Texas

    The locks we purchased are working great and fit our needs. If there was one thing that we should have looked into was linking all four locks together in network. But with two locations about 20 miles apart that my be difficult. Thanks and we do enjoy the locks.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. Ana from New Jersey

    The lock that we purchased from Go Keyless is perfect. It does the job just right. Our customers love it because it is so easy to use and convenient for after hours. The customer service that we received was impeccable. Jason was extremely patient and helpful with us. I definitely recommend GoKeyless.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. Jeremy from Minnesota

    The DL1300 works great for our needs and we are very happy with our purchase. We had a local locksmith install it and after all costs’ saved hundreds of dollars compared to a quote from a local vendor. More impressive was the pre-sales and post-sales support from the guys at We have two more doors well be purchasing locks for and you guys are my only choice from here on out; Thanks from a happy customer.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. Shane, Muscle-Licious Gym, Mustang, OK

    I purchased the DL1300 to turn my gym into a 24hr. facility. I installed and programmed the lock myself with no prior experience. It was not easy but manageable. Once it was up and running’ I was surprised at all of the custom settings and how versatile the program is. I am planning on adding tanning beds to the gym in the future and I will purchase another DL1300.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. Jesse from Idaho

    Overall’ my lock looks great and works great! It matches the alum. trim on my storefront well and using the DTM (now) seems pretty straightforward and simple. I’m happy with it!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Will this lock work on a Neuma Triple Latch Hurricane Door? answer now
    Asked by John Harlow on August 31, 2021 10:56 AM
    Answered by the admin

    This model does not have the ability to control a 3-point locking system.

  2. Q Can you add a wireless access button? answer now
    Asked by Dylan Kingsley on February 16, 2021 5:12 PM
    Answered by the admin

    For a wireless remote release button, you will need the DL1300NW version.

  3. Answered by the admin

    Typically we would not recommend this model for gate applications as it is designed for narrow storefront doors where it can pair to a mortise lock body and an exit handle/paddle. For pool gates, we would recommend the DL2800 with the Keedex K-BXSIM gate box. This lock has the same programming capabilities as the DL1300 but has a handle on both sides of the lock and includes the latching hardware needed to secure the gate. On the DL2800, the interior handle will always retract the latch even if the keypad side is secured. If you need to secure both sides of the gate. the DL5200 would be recommended.

  4. Q Will this work on double doors where both doors have a panic bar? answer now
    Asked by Carl D on September 11, 2020 2:20 PM
    Answered by the admin

    To pair this lock with an exit bar, you will need the DL1300ET model but this can be used for double door applications.

  5. Q Does the lock have a wireless capability to use with a mobile phone? answer now
    Asked by Karen Taitano on February 24, 2019 8:18 PM
    Answered by the admin

    No, this does not have the ability to use a phone.

  6. Q Will the audit trail work with MAC OS or only PC Windows based? answer now
    Asked by Karen Taitano on February 24, 2019 8:15 PM
    Answered by the admin

    The AL-PCI2U DL-Windows software is PC based but can be run in a windows environment on a Mac.

  7. Answered by the admin

    Yes, there is a manual locking and unlocking option that will work with standard Adams Rite Swing bolts such as the MS1850 for manual locking of doors the PDL1350. Yes, you can use cards and fobs as well as codes to open the PDL1350. However, keep in mind that anytime the lock is unlocked it will stay unlocked until you choose to re-lock it by hand either from the interior or the exterior. We recommend that you speak with our sales staff to ensure you get all of the correct product for your door to function properly.

  8. Answered by the admin

    Yes, you can accomplish what you are asking with the DL1300 and the addition of the 4900 and 4591. However, if you are looking to keep the swing bolt function that you currently have and you only want to add a code to go with a key we would suggest using a DL1325 or DL1350. This way you would still have the same function with the key and deadbolt setup but you are adding a code. If you go with the DL1300 you are changing everything to an auto-locking latch rather than the deadbolt locking you have now. We would recommend speaking with our sales staff at 937-247-9327 opt. 1 to ensure you get the right lock for your needs.

  9. Q Can you get a push bar to go with this keyless lock system answer now
    Asked by ROBIN LYNN SEELY on June 15, 2018 10:57 AM
    Answered by the admin
    Not for this particular lock, however, you can purchase the DL1300ET version which is specifically designed to work with many different RIM exit narrow stile exit bars.
  10. A Based on the set up that you have, yes this could work. As you have stated of the door if then opened it would not be secure.
