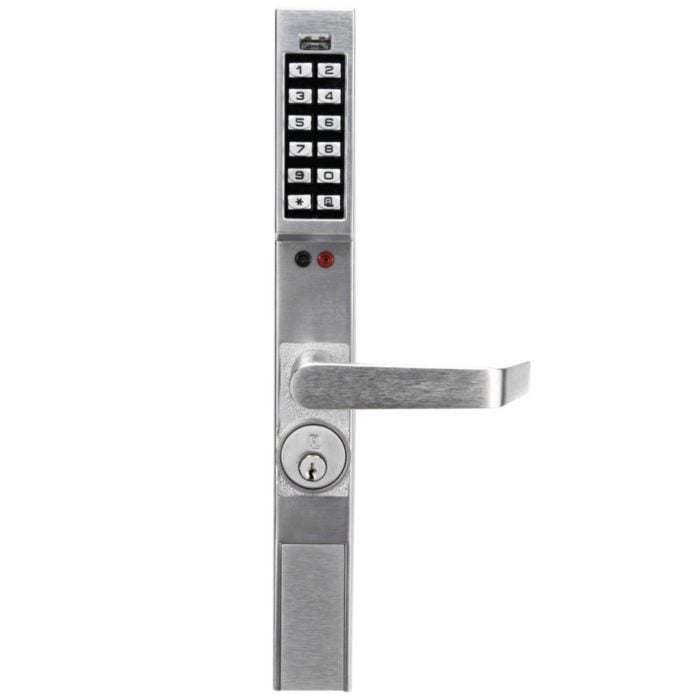

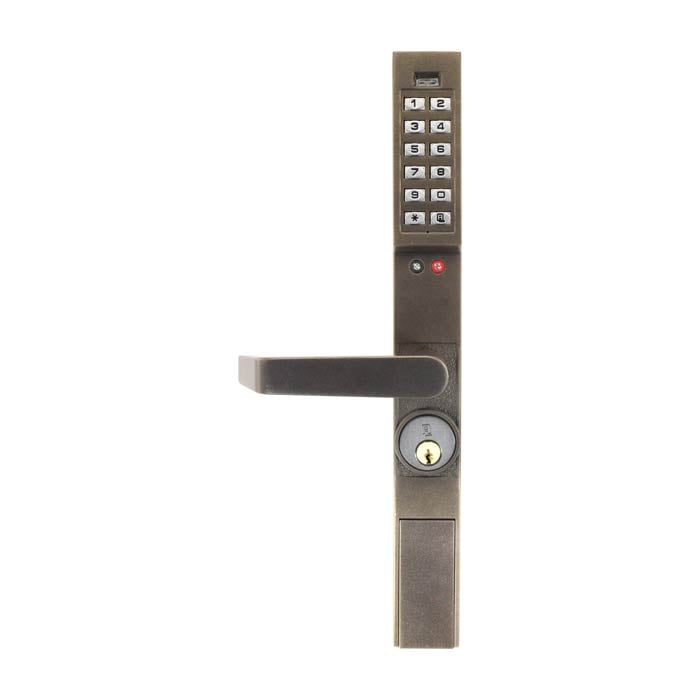

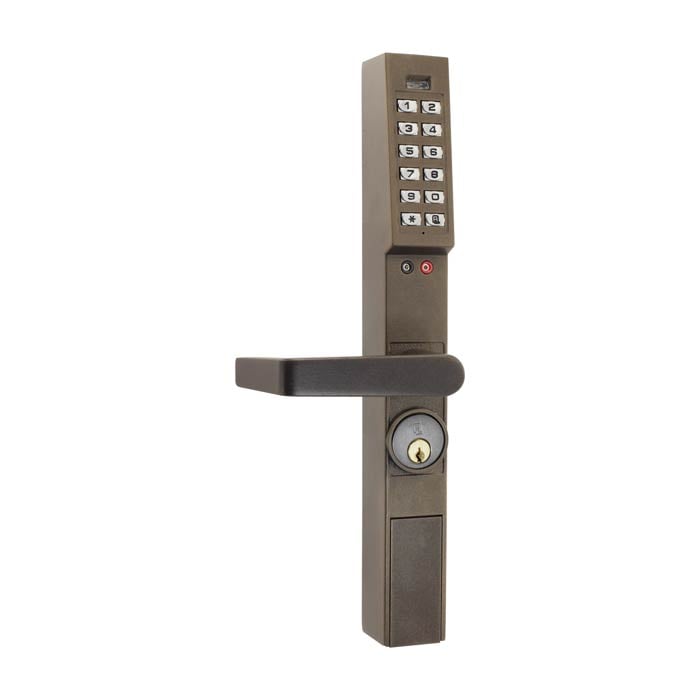

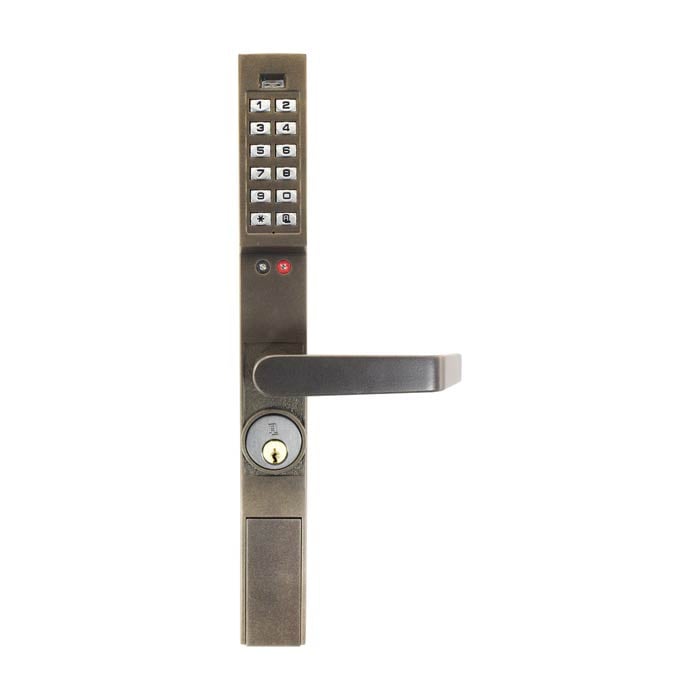

  • Trilogy DL1300

    Narrow Stile Access Control Lock

    SKU: DL1300/26D1

    Alarm Lock Trilogy

    Panic bar/exit device sold separately.



    The Trilogy DL1300 is a DIY stand-alone access control solution that can quickly be installed on your aluminum-frame glass doors. Suitable for gyms, storefronts, offices, and more. This lock supports 2000 users. Smart, user-friendly, and revolutionizes key management. Forget the days of having to re-key and change out locks.

    Finish

    Quantity left : -8

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $109.27

    Call For Price

    GK Care Technical Support Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & Programming Let us do the work for you. We get you up and running. Read More

    • Wire-free, standalone lock
    • Retrofits traditional keyed-in aluminum store doors with Adams Rite 4510, 4900 Series, 1850, 1950, 4710, and 4730 locks
    • Outside trim only.  Inside paddle hardware and deadlatch (also available in DL1325 and DL1350 deadbolt models) are available at checkout
    • Field proven familiar Trilogy name
    • 2000 user capacity
    • Program at lock, or using Windows PC based software
    • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
    • Multilevel user setup:  Master, Manager, Supervisor and Basic Users
    • Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
    • WeatherPROOF performance
    • 3-15 seconds allowable entry time, user definable; how long user has once they enter pin before door re-locks behind them
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail with Time/Date Stamp for a printable record of all electronic activity – use the DTM hand held or a laptop computer to download audit trail data from lock (PC and DTM interface cables required – available at checkout)
    • Real-time clock allows logging of events to within 1 second of accuracy
    • Simple do-it-yourself installation; instructions included
    • Long battery life; uses 2 standard off the shelf lithium 3V batteries, included
    • Visual and audible low battery alerts
    • Key override; includes a 1 3/8″ long  mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders.
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Schedule access times and combat lost keys and lockouts with the DL1300.  It features timed lock/unlock, audit trail, and the ability to use a convenient DTM data transfermodule to upload your user schedules from your desktop or laptop computer.  This electronic access lock is a cost-friendly key management solution for your narrow stile, aluminum glass doors.  A one-time financial commitment gets you a powerful, 2000 user capacity, easy to maintain keyless entry system that will pay for itself each and every time you don’t have to re-key or change your locks.

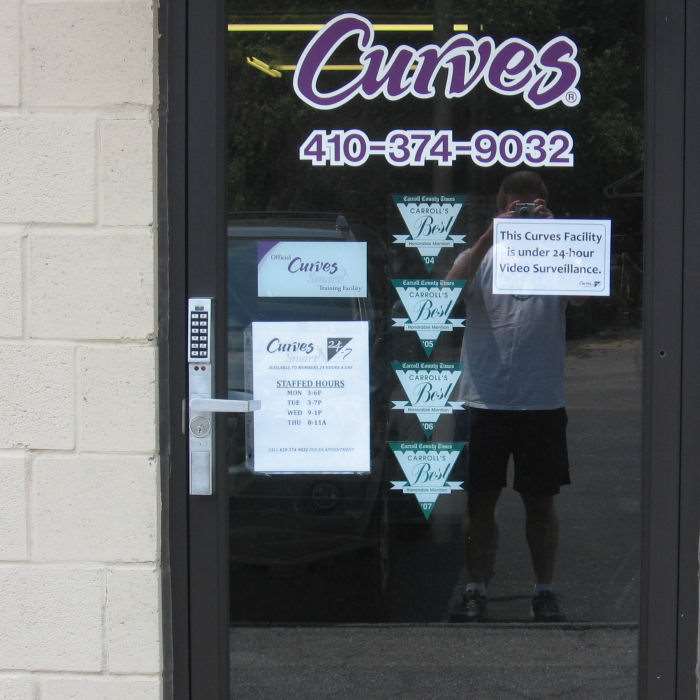

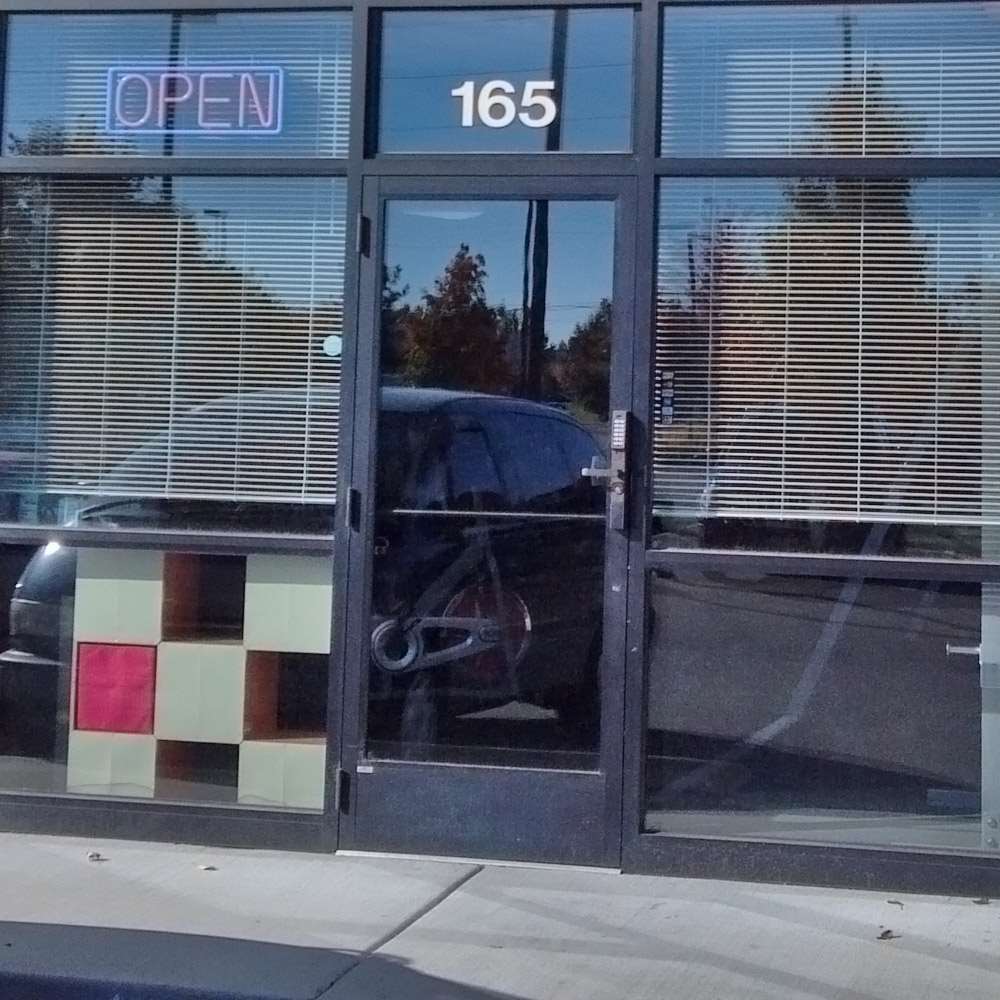

    Fitness Centers/Gyms, Storefronts, Managed Properties, Showrooms, Retail, Airports, Restaurants, Campuses, Movie Theaters, Schools, Offices, Pharmacies

    Basic

    Manufacturer Alarm Lock
    Battery Type 3-Volt CR123A Lithium
    Event Scheduling 500, Automated Unlock/Lock
    Keyway Schlage SC1
    Lock Features Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Adams Rite
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Reversible
    Battery Life 80,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Key Override Yes
    Timed Entry Allowance 3 to 15 sec.

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Backset 1 1/2 in., 1 1/8 in., 31/32 in.
    Dimensions 14 3/8 (H) x 1 5/8 (D) x 1 3/4 (W) in.
    Door Stile Width Minimum 2 in.
    Weight 7 lbs
