Yale nexTouch AU-NTT613-ZW2

Z-Wave Push Button Exit Trim

Reviews (1) | Customer Questions (3)

$838.77

The next level in convenient exit! The Yale nexTouch Z-Wave Exit Trim provides easy and secure keyless PIN code access for your exit doors. Equipped with a pushbutton keypad, lockout mode, audit trail and more. Future-proof modular technology allows for upgrades as needs and technology expands.

SKU: AU-NTT613-ZW2
Your Current Selections:
Your Current Selections:

Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

Need assistance or have questions? Call our Multi-Family Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

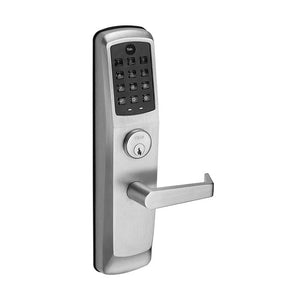

  • Pushbutton keypad model, touchscreen keypad option also available
  • Integrates seamlessly with existing Z-Wave alarm and automation systems, including VeraEdge and VeraPlus controllers

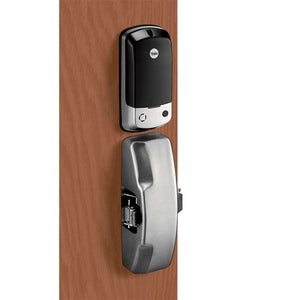

  • Exit trim only (exit device sold separately, see compatibility list below)
  • Ideal for retrofit projects and new construction multi-family properties, small business office space, retail space, hotel, airport, restroom, or mixed-use commercial building
  • Offers easy upgrade from mechanical exit trim to key-free access management
  • Augusta lever and Satin Chrome finish standard – other finishes and lever designs available via special order
  • Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked
  • Standard mortise cylinder
  • Key override unlocks the outside lever only
  • Deadlocking rim bolt
  • Manage up to 500 unique PIN codes in keypad only operation
  • Voice guided programming in 3 languages (English, Spanish and French)
  • Privacy mode
  • Lockout mode
  • Low Battery Indication
  • 9V battery power backup
  • Weather Resistant Seal

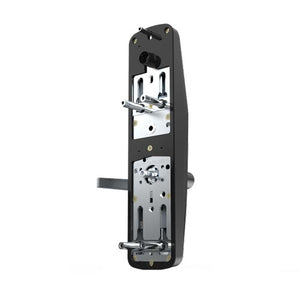

  • Patented adjustable mounting posts make the nexTouch exit trim compatible with many exit device models

Compatible Exit Rim Device Models/Series

Don’t waste time and money with lockouts, lost keys, and cumbersome key management. Skip the hassle and go keyless with the Yale nexTouch Keypad Exit Trim. This heavy-duty exit trim is equipped with a sleek modern pushbutton keypad for code entry and an ADA friendly lever. Quickly generate secure digital codes to send to staff, vendors, and guests and monitor doors with real-time notifications. The nexTouch Z-Wave series easily integrates into your existing or new Z-Wave network, providing streamlined and centralized property management without having to install extra software. The lock’s low-battery indicator alerts you when it’s time to change batteries, and the 9V battery backup on the exterior prevents a lockout should the lock lose power. In case of emergency, a manual key override unlocks the outside lever. Patented adjustable mounting posts provide compatibility with many exit device models. Ideal for new construction or retrofit projects in multi-family, small business, or mixed-use properties.

Exterior Dimensions

13 (H) x 3.125 (W) x 3.3125 (D) in.

Interior Dimensions

10.5 (H) x 3.125 (W) x 2 (D) in.

Door Thickness Minimum

1 3/4 in.

Door Thickness Maximum

1 3/4 in., 2 1/4 in.

Door Handing

Left Reverse, Right Reverse

Door Opening

Standard

Door Prep

Standard 2 1/8 in. Cross-Bore

Users

500

Code Length

4 to 8 Digits

Handle Type

Lever Handle Door Locks

Battery Type

4 AA

Battery Life

1 Year

Battery Back-up

9V, Yes

Wireless Protocol

Z-Wave Plus

Wireless Range

40 ft. (increase range with repeaters / mesh network)

Construction

Stainless Steel

Finish

Satin Chrome

Access Type

Key, Keypad – Digits

Locking Device

Panic/Exit, Exit – Rim

Lock Features

Audit Trail, Auto Relocking, Battery Backup, No Tour, Privacy, Temporary Codes, Timed Codes, Z-Wave Plus

Brand

nexTouch, Yale

Manufacturer

Assa Abloy

ANSI Rating

Grade 1 (Best)

BHMA Rating

Grade 1 (Best)

Operating Temperature

-40°F to +140°F (-40° to +60°C)

Environmental

Front body: Weather Resistant

Weight

7 lbs

Warranty

1 Year Limited Finish, 3 Year Limited Manufacturer

Authentication

Single Factor

Certifications

ADA

Share your thoughts!

4 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. Working Good.

    Taylor H

    First off, product is installed and working great. It’s in a high use area and has been paired with an Aeotec SmartThings hub. We’ve currently got about 50 active codes and I can see who is entering and at what time. We paired this with a SmartThings camera and now we can make sure the people we’ve assigned the codes to are the ones using them.This is all done for free through the SmartThings app. Wouldn’t suggest it for anyone who doesn’t consider themselves very handy. If you’ve installed doorknobs/locks or something of equivalent difficulty you’ll probably be fine. The z-wave/hub setup was pretty straight forward as well.

    I removed one star for the missing installation instructions. Everything was going good. I got the entire thing installed and the actual lock wouldn’t work. Realized there was a step not listed where you have to disassemble the whole set-up before installation and rotate a lever to engage the ability to use the actual physical lock.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×

Login

Register

Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Does this specific lock work with Alarm.com through z-wave? answer now
    Asked by Danielle on December 6, 2023 3:25 PM
    A

    Yes, Yale Z-Wave locks are compatible with Alarm.com, as long as you have a Z-Wave controller available.

  2. A

    This will entirely depend on the Z-Wave system that you have the lock connected to. Without a Z-Wave controller, the lock can only be programmed directly at the keypad and you will not have any remote access.

    If the lock is connected to a Z-Wave hub such as Vera, the software that is used to control the hub should give you the ability to add/remove codes remotely, lock/unlock the door, and set scheduled actions without having to be onsite with the lock. These hubs typically require some form of internet access so that you can communicate with the lock from anywhere.

  3. Q Can I get the YALE NEXTOUCH AU-NTT610-ZW2 in Oiled Bronze Finish? answer now
    Asked by jason jayne on February 8, 2021 5:24 PM
    A

    This model is available in Bright Brass, Satin Bronze, Satin Chrome, and Black Suede through our sales team!
