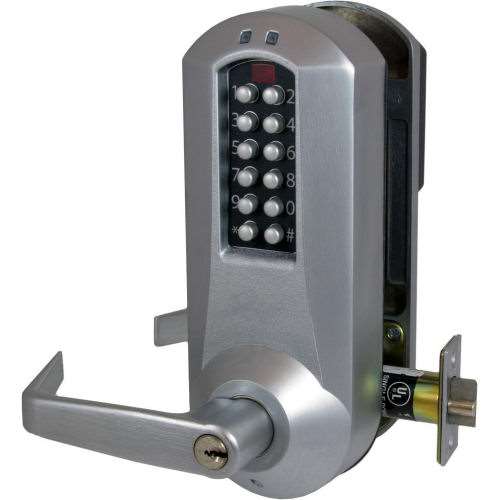

PC Programmable Electronic Pushbutton Lock
SKU: E5231XSWL62641
dormakaba E-Plex
$1,034.00 $909.54 SAVE 12%
Simple. Smart. Scalable. Upgrading your traditional key locks or mechanical push-button locks is easier than ever with the E-Plex 5200 Series. This lock combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of programmable electronic access control. You and your staff can now use secure codes for access. And since this is auto-locking, you can be assured that doors will always be locked. This adds another layer of security to protect confidential and/or private information in the spaces behind those doors. Does this lock require AC/DC current? Nope. It's fully battery powered, saving you on the overall costs of implementation and installation. You can be up and running in less than hour time. "I've never heard of Kaba, who are they?" Glad you asked! Kaba has been around since the 1800's making first-class locking technologies. They are the largest provider of access control products in the world.
Note: This lock is programmable through dormakaba E-Plex software only.
GoKeyless™ is a factory-trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year distinguished.
Manufacturer | dormakaba USA Inc. |
---|---|
ANSI Rating | Grade 1 (Best) |
Battery Type | AA |
BHMA Rating | Grade 1 (Best) |
Keyway | Schlage C |
Lock Features | Audit Trail, Passage Mode, Scheduling, Timed Codes |
Solution | Electronic |
Warranty | 3 Year Manufacturer |
Handle Type | Lever Handle Door Locks |
Access Type | Key Keypad - Digits |
Locking Device | Cylindrical Latch |
Brand | dormakaba E-Plex |
Door Handing | Universal |
---|---|
Battery Life | 180,000 Cycles |
Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
Code Length | 4 to 8 Digits |
---|---|
Code Capacity | 3,000 |
Fire Rating | 3-hour UL/ULC fire rating for A labeled doors |
Exterior Dimensions | 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in. |
---|---|
Inside Dimensions | ["8 7/8 (H) x 3 13/16 (W) x 2 1/8 (D) in."] |
Door Thickness Minimum | 1 3/8 in. |
Door Thickness Maximum | 2 1/4 in. |
Backset | 2 3/4 in. |
Door Stile Width | Minimum 5 in. |
Exterior Dimensions | 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in. |
Weight | 9.5 lbs |
