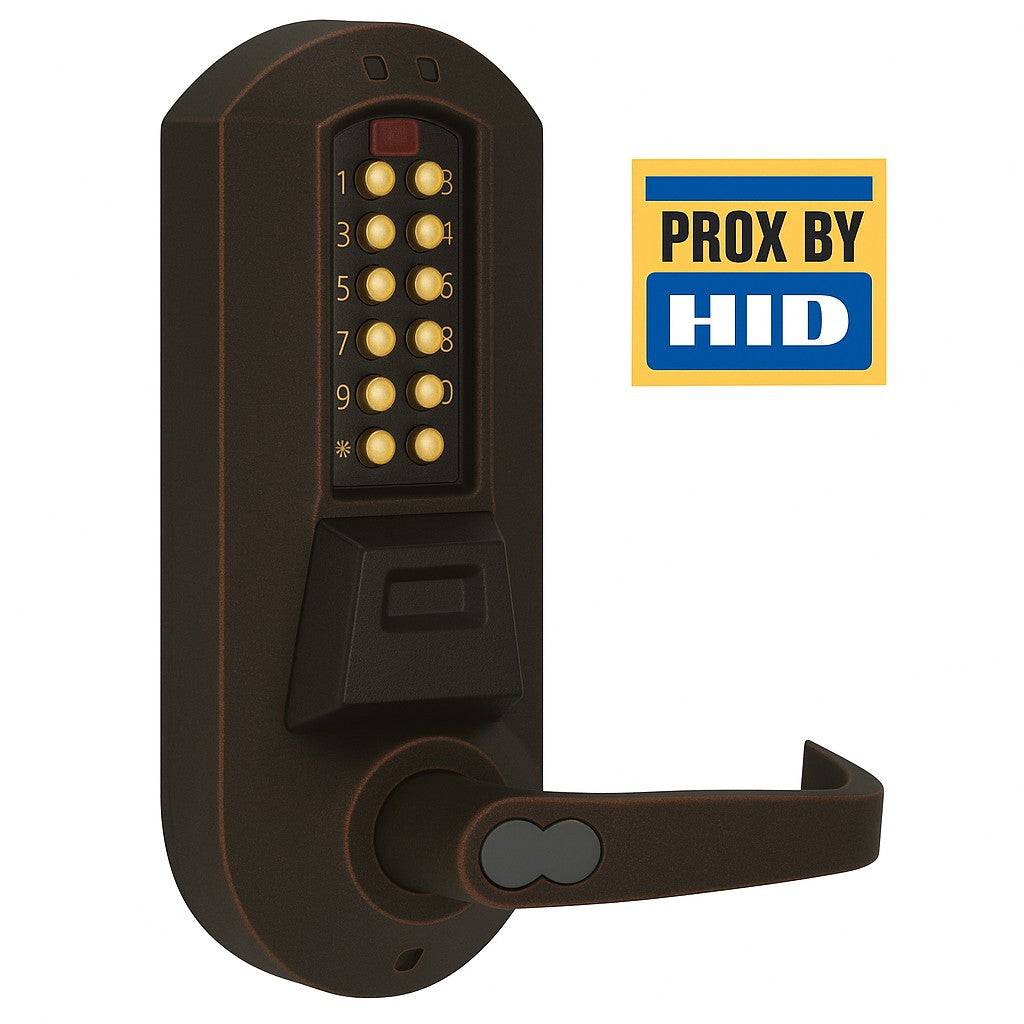

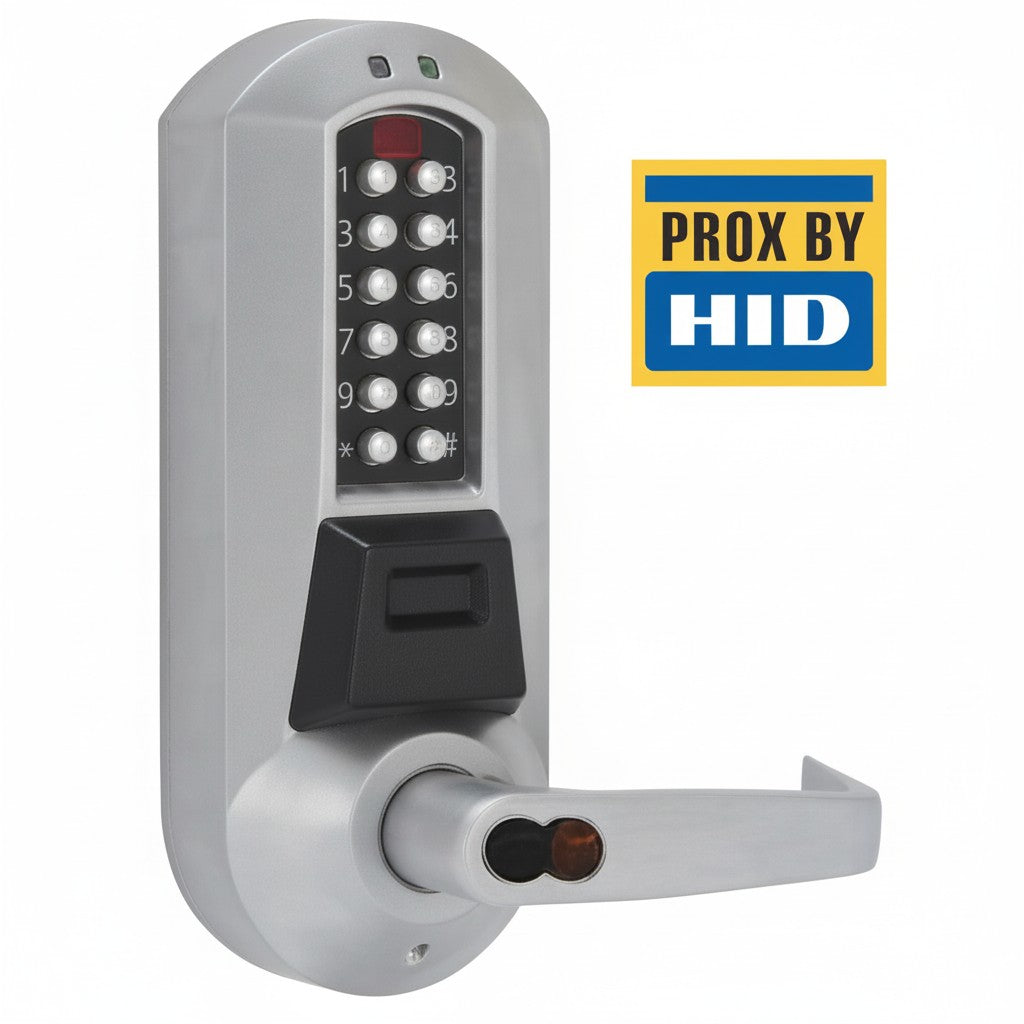

  • dormakaba E-Plex 5731IC

    Extra Heavy-Duty Grade 1 Card Access System

    SKU: E5731BWL74441


    The Kaba E-Plex E5731IC is a Extra Heavy-Duty PIN/Proximity lock featuring E-Plex's Patented LectroBolt technology. No more having to run wires at the door, eliminating the risk of damage from pinched wires. Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems. Prepped to accept small format Best and equivalents (6 or 7-pin length), and large-format interchangeable cores.

    Key Override

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Extra Heavy-Duty ANSI/BHMA Grade 1 Dual Credential PIN/Prox lock prepped for IC core / Removable core key override (E5731B, E5731C, E5731M, E5731R, E5731S models available
    • Features LearnLok programming.  New!  Pull audit trails with Auditor Kit without needing to purchase software
    • Stand-alone advanced access control at a one-fifth (1/5) the cost of primitive systems.  A new standard in institutional facility management
    • Tested extensively in outdoor and marine environments – performed flawlessly
    • Cylindrical latchbolt locking mechanism (latch includes a 1/4″ deadlocking plunger bolt to prevent jimmying)
    • Supports Up to 3000 Users:  Pass-codes can be 4-8 digits in length (high security with over 100 million possible combinations)
    • Program at keypad, card reader, or via PC
    • You determine what’s required for access; PIN only, PROX card only, or PIN + PROX card
    • Network and PC Programming (offline):  Requires laptop/netbook (mini-laptop) and E-Plex Enterprise Implementation Kit (sold separately at checkout)
    • HID, and 125 kHz, 26 to 84-bit format type prox cards are supported (HID cards available at checkout)  Have existing magstripe or ID badges you want to use?  No problem, simply add the HID adhesive prox tags at checkout
    • Audible and Visual Programming Indicators:  Visual tamper indicator
    • Three Operating Modes:  PIN/card access, passage (can be toggled on/off or pre-programmed to re-lock after certain number of hours), and lockout mode
    • Five authority levels lets you control who can do what
    • Time-Determined Access:  Using software you can program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
    • First Manager In Feature:  Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
    • Passage mode can be manually toggled at the lock
    • Track entries of who entered and when with audit trail feature (unit stores last 30,000 events)
    • Battery Operation:  180,000 cycles on 4 AA alkaline batteries, included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Vandal resistant, solid metal push-buttons
    • Patented LectroBolt ‘sandwich-fitting’ yields a 90% reduction in installation time over wired access control systems.  Instructions and two-hole drilling template supplied
    • Finish:  Choose from multiple architectural finishes including standard satin chrome (626) and premium finishes.  Premium finishes may be subject to 2-3 week lead time
    • Fits virtually all left and right swing doors
    • Prepped for key override using Best and Equivalents (6 or 7-pin length) small format IC key cores. (you may use your own IC core in the lock, or order the Falcon small format IC core from us at checkout)
    • 2 3/4″ Backset included (2 3/8″ available at checkout); How do I measure?
    • 3-year manufacturer warranty from date of install; memory has a built-in warranty counter

    Achieving remarkable results is easy with E-Plex dual PIN/Prox locks.  Industries across the board rely on the unshakable confidence of having E-Plex protecting their openings and assets from unauthorized entry or access.  Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.  Featuring E-Plex's Patented LectroBolt technology, the 5700 Series abolishes having to run wires to or through the door, while eliminating the risk of damage from pinched wires.  The outcome is even more money saved on implementation and installation.  Built on five decades of accomplished engineering success, the E-Plex prox is reassuringly sturdy and a true workhorse.  There is nothing else like it.  Want to make your workplace more secure without sacrificing any convenience?  E-Plex prox locks help you figure it out.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year


    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand E-Plex

    Door requirements

    Door Handing Universal
    Battery Life 120,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)


    Code Length 4 to 8 Digits
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Users 3,000


    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 13/16 (W) x 2 1/8 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Weight 9.5 lbs
