  • FEIG ID ISC LR WS-A

    Wiegand Switch

    SKU: ID ISC.LR.WS-A

    FEIG Electronic

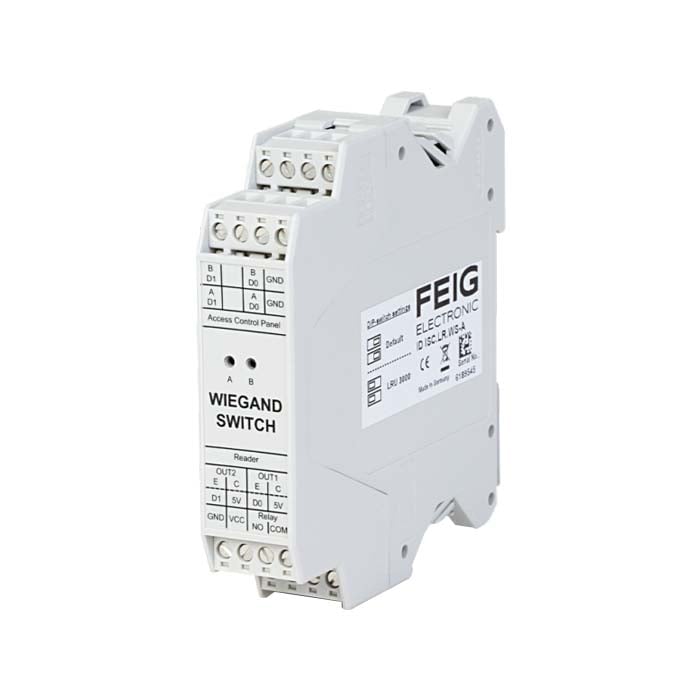

    Switch up your gate access. The FEIG ID ISC.LR.WS-A Wiegand Switch provides a smart and cost-effective solution for multi-lane vehicle access control installations. Together with a UHF reader, the Wiegand Switch allows you to control two independent access lanes at gated parking entrances.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $38.85

    • Cost-effective Wiegand solution for 2 lanes
    • Display of the active output channel
    • Compact housing
    • Easy installation
    • DIN rail mounting
    • Automatic signal improvement in case of communication problems

    Compatible with

    The FEIG ID ISC.LR.WS-A Wiegand Switch provides a smart and cost-effective solution for multi-lane vehicle access control installations. Combined with a UHF reader, the Wiegand Switch allows you to control two independent access lanes. Access is only allowed at the specific lane where the switch is currently operating. The two LED indicators provide an active output channel and simple diagnostic status. This Wiegand switch can be installed quickly and easily with its compact housing that adapts for DIN rail mounting. Several FEIG RFID readers support this switch, so it can be integrated in many different applications using Wiegand access control panels.

    Basic

    Manufacturer FEIG Electronics
    Color Gray
    Power 12/24 VDC
    Brand FEIG Electronic

    Door requirements

    Security

    Dimensions

    Dimensions 3.9 (H) x 3.54 (W) x 0.89 (D) in.
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight .20 lbs

    Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

    As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

    RFID hardware for short-range solutions (HF)
    RFID hardware for long-range solutions (UHF)
    Software myAXXESS Manager for administration of access authorizations
    Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

    EASY SYSTEM MANAGEMENT
    The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

    HIGH SECURITY LEVEL
    The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

    ADMINISTRATION AND MANAGEMENT
    User Management

    Management of users and transponders
    Assignment of users to user groups
    Import of user lists and old projects
    Export of user lists
    Access Right Management

    Managing access rights on single user and single door/barrier level or on user group and area level
    Easy managing of access rights with one general map
    Import of user lists and old projects
    Export of user lists
    Door / Barrier Management

    Management of doors / barriers and readers
    Easy reader configuration
    Assignment of doors or barriers to areas
    Event list viewer
    Time Model Management

    Creating own time models from 15 different, self-defined time periods
    Holiday Management

    List of self-defined holidays
    Special access rights for holidays
    This software is FREE with No monthly subscription.
