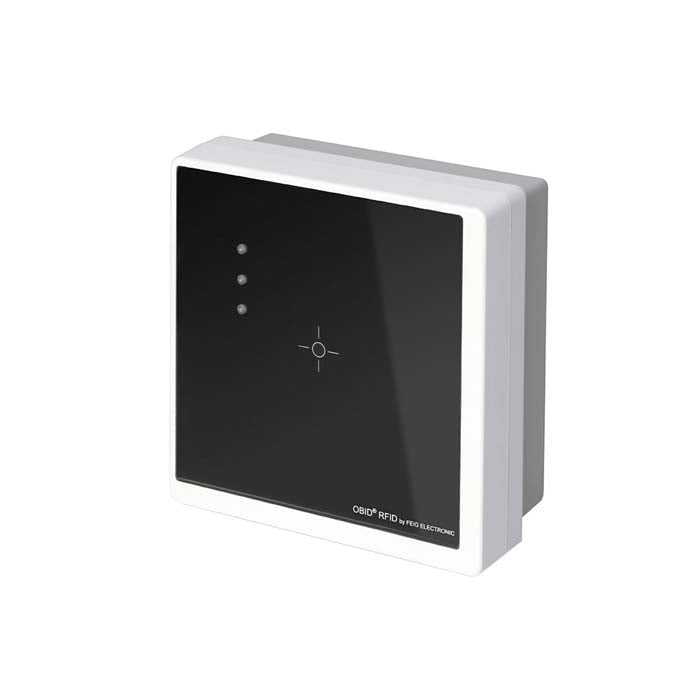

  • FEIG ID MAX50.10 HF

    Standalone Proximity RFID Reader

    SKU: ID MAX50.10-RE

    FEIG Electronic



    A vehicle to total access. The FEIG ID MAX50 10 HF provides the functions of a card reader, door and access control in one compact device. Ideal for commercial and industrial personnel and vehicle access control. Manage user data, access rights and more using myAXXESS Manager.

    Option

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $133.91

    • RFID Card Reader, Door Controller and Access Controller in one device – reader only model available
    • Use in industrial and commercial installations as a part of a complex access control system with widely distributed access points
    • Can be used for single doors in small and medium-sized installations
    • Offline management of more than 5,000 access permissions (Stand-alone operation)
    • Optional Power over Ethernet (PoE) or external power supply
    • AES-encrypted Ethernet-Data transfer
    • Integrated antenna
    • Ethernet 10BASE-T / 100BASE-TX
    • Automatic MDI/MDI-X Crossover correction, TCP/IP protocol, IPv4
    • Operates with ISO14443-A/-B and ISO15693 transponders
    • Identification via serial number or freely configurable data area
    • Real time clock and time zones
    • Configurable event memory
    • External relay optional

    myAXXESS Manager

    • Management of doors and barriers in one project
    • Easy assigning and managing of access rights
    • Secure access control based on secure transponder technologies like Mifare DESFire and UCODE DNA
    • Desktop readers for personalization of transponders available (ID ISC.MRU102, ID CPR40.30)
    • Supports programming of ID MAX50.10, ID MAX.U1002 and MAX.U500i
    • Reading of event and log data from access control readers
    • FREE software – NO monthly subscription required

    The FEIG ID MAX50 10 HF provides the functions of a card reader, door and access control in one compact device. Ideal for commercial and industrial personnel and vehicle access control. Suitable applications include parking entrances, lobbies, front gates and more. This POE proximity reader communicates with NFC-devices, integrating into existing LAN Networks. Power over Ethernet devices allow for a faster, more economical and secure installation process as there is no expensive electrical hard wiring to be done. Data transfers between the reader and host is secure and encrypted using 128 bit AES algorithm. These devices can be used for single doors up to a complex access control system with widely distributed access points. Manage user data, access rights and more using FEIG’s patented myAXXESS Manager software. After this synchronization, the reader can run offline as a stand-alone device. More than 5,000 access permissions can be managed and up to 2,000 access control events can be stored. Optionally, events can be immediately reported to a host system via notification in the operation mode “Access Mode”. The event memory can be adapted to different data protection laws, but it can be also completely disabled. Each user can be assigned to additional temporal restrictions, including holidays and vacation days.

    Basic

    Manufacturer FEIG Electronics
    Color White
    Power POE
    Radio Frequency 13.56 MHz
    Brand FEIG Electronic

    Door requirements

    Security

    Credential Format 13.56 MHz Smart Technology, MIFARE Classic, MIFARE Desfire, MIFARE Ultralite
    Credential Type Card
    Wireless Protocol Advanced Encryption Standard (AES), 128-bit, TCP/IP

    Dimensions

    Dimensions Card Reader: 3.31 (H) x 3.31 (W) x 0.87 (D) in., Wall-mounted Housing: 3.06 (H) x 3.06 (W) x 0.71 (D) in.
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight 5.3 oz.

    Access control systems on buildings and parking areas should be as uncomplicated as possible. myAXXESS is the secure, powerful and economic solution for small and medium-sized projects. Both in a stand-alone systems and integrated into existing access solutions.

    As a RFID specialist, FEIG ELECTRONIC offers systems from a single source, consisting of:

    RFID hardware for short-range solutions (HF)
    RFID hardware for long-range solutions (UHF)
    Software myAXXESS Manager for administration of access authorizations
    Transponders for granting authorizations (HF chip cards and UHF wind shield transponders)

    EASY SYSTEM MANAGEMENT
    The “myAXXESS Manager” software makes it easy to manage access authorizations of people and vehicles. The local database application can control users and groups of users, and accesses for doors and barriers can be co-managed in one project and assigned to specific areas for ease of control.

    HIGH SECURITY LEVEL
    The software supports the programming of short-range readers such as the ID MAX50.10 for the identification of persons at doors and barriers as well as the programming of long-range readers such as ID MAX.U1002 and MAX.U500i for vehicle access control. If required, secure access projects can be implemented based on secure technologies such as Mifare DESFire and UCODE DNA from NXP.

    ADMINISTRATION AND MANAGEMENT
    User Management

    Management of users and transponders
    Assignment of users to user groups
    Import of user lists and old projects
    Export of user lists
    Access Right Management

    Managing access rights on single user and single door/barrier level or on user group and area level
    Easy managing of access rights with one general map
    Import of user lists and old projects
    Export of user lists
    Door / Barrier Management

    Management of doors / barriers and readers
    Easy reader configuration
    Assignment of doors or barriers to areas
    Event list viewer
    Time Model Management

    Creating own time models from 15 different, self-defined time periods
    Holiday Management

    List of self-defined holidays
    Special access rights for holidays
    This software is FREE with No monthly subscription.
