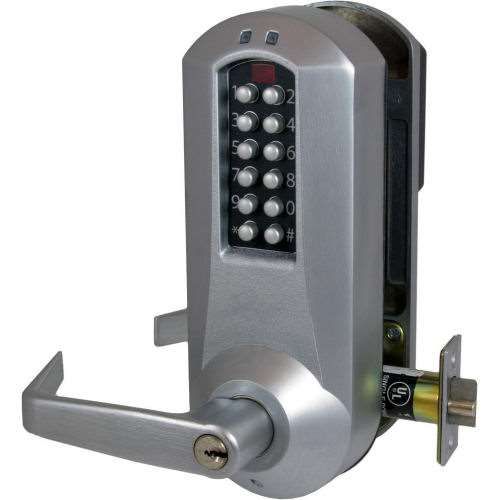

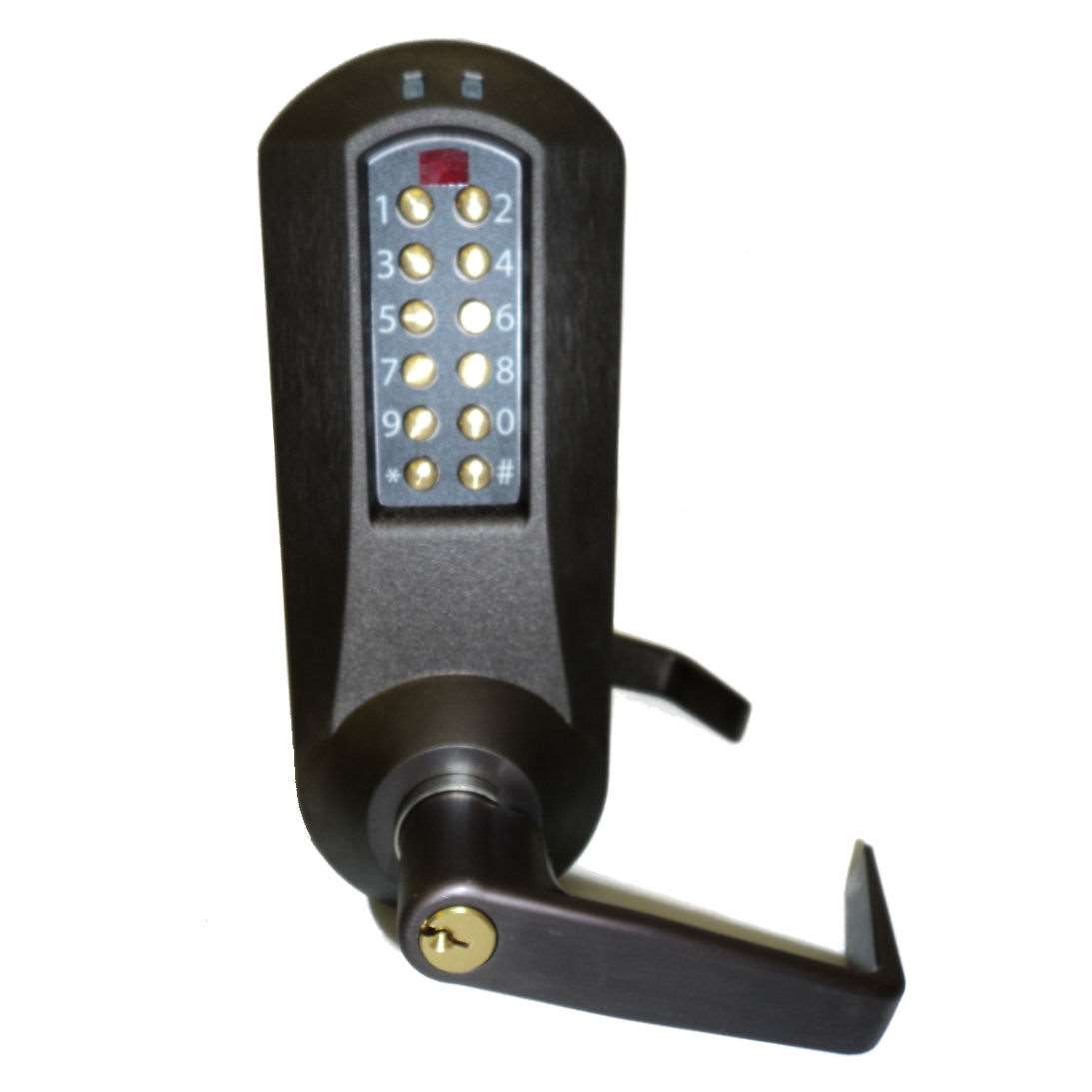

    dormakaba E-Plex E5031

    Electronic Push Button Lock

    SKU: E5031BWL62641

    E-Plex



    Lost keys and security breaches come at you fast. The solution is the E-Plex Grade 1 security stand-alone access control lock. From multiple users to audits, you'll be able to better protect assets and your workforce.

    Finish
    Key Override

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $137.97

    Call For Price
    • Heavy Duty – ANSI/BHMA Grade 1, stand-alone access control lock
    • Cylindrical latch-bolt locking mechanism (latch includes a 1/4″ deadlocking plunger bolt to prevent jimmying of door)
    • Supports 100 users; 4-8 digit user access codes (100 million possible code combinations)
    • Easy programming via keypad or PC using optional E-Plex Software Implementation Kit (available at checkout)
    • PC management simplifies administration of doors and users as facility’s number of personnel and access points grow
    • Records a time/date stamp (audit trail) of when user’s accessed your door.  Downloads into easy to use reports.  Requires E-plex® 300 Software Implementation Kit (sold separately)
    • 3 operating modes:  PIN code entry, lockout, or passage mode (you can toggle the passage mode, or program it so the door re-locks after certain number of hours [1-24])
    • 5 authority access levels let you determine who has privileges to specific lock functions
    • Battery Operation:  4 AA alkaline batteries included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Tested extensively in outdoor and marine environments – performed flawlessly
    • Choose from 6 decorative finishes – please allow for small lead time on premium finishes; bright brass, satin brass, and bright chrome
    • Quick and easy installation.  Patented electrobolt  technology provides “sandwich” fitting.  No wiring to or through door; no risk of pinched wires.  Instructions and two-hole drilling template supplied
    • Out of the box ready – programming and operating manuals provided
    • Optional remote unlock feature
    • Backset Size:  2 3/4″ backset included (2 3/8″ available at checkout)  – How do I measure?
    • Emergency key override using universal 6 pin cylinder (common for commercial applications) with Schlage C keyway.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose.  Need this same lock with IC or Removable core? Click here
    • 3-year manufacturer’s warranty; built-in warranty counter

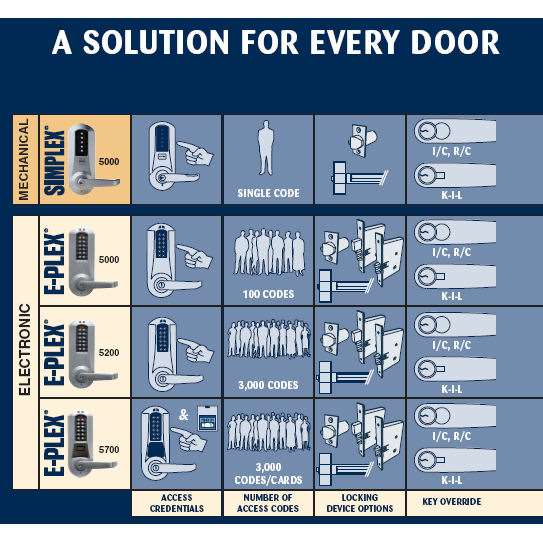

    Outclasses.  Outlasts.  Outperforms.  E-Plex 5000 Series makes upgrading your traditional keyed-in locks or mechanical push-button locks easy.  This lock combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure codes for access.  And since the E-Plex 5000 auto-locks, you gain assurance your doors always stay locked.  This adds another layer of security to protect the people, and confidential and/or private information in the spaces behind those doors.  Does this lock require AC/DC current?  Nope.  It saves you on the ownership costs of implementation and installation with its fully battery powered design.  You can get up and running in less than hour time.  "I've never heard of Kaba, who are they?"  Glad you asked!  Kaba's track record for making first-class locking technologies goes back to the 1800's.  They rank as the largest provider of access control products in the world.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Old Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand E-Plex

    Door requirements

    Door Handing Universal
    Battery Life 180,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Weight 9.5 lbs
