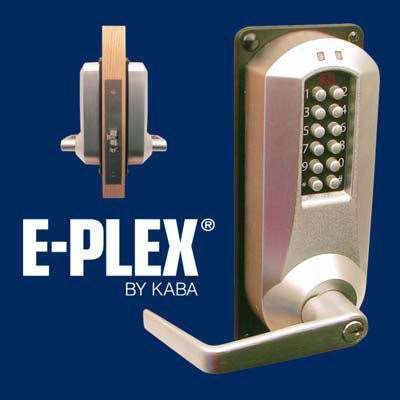

  • dormakaba E-Plex E5086

    Entry/Exit (Back-to-Back) Pushbutton Lock

    SKU: E5086BWL62641

    E-Plex



    The Kaba E-Plex E5086 combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure codes for access. Since this is auto-locking, you can be assured that doors will always be locked.

    Finish
    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $248.49

    • Heavy Duty – ANSI/BHMA Grade 1, stand-alone entry/exit access control lock
    • Mortise locking mechanism
    • Supports 100 users on both sides; 4-8 digit user access codes (100 million possible code combinations)
    • Easy programming via keypad or PC using optional E-Plex Software Implementation Kit (available at checkout)
    • PC management simplifies administration of doors and users as facility’s number of personnel and access points grow
    • Records a time/date stamp (audit trail) of when user’s accessed your door.  Downloads into easy to use reports.  Requires E-plex 300 Software Implementation Kit (sold separately)
    • 3 operating modes:  PIN code entry, lockout, or passage mode (you can toggle the passage mode, or program it so the door re-locks after certain number of hours [1-24])
    • 5 authority access levels let you determine who has privileges to specific lock functions
    • Battery Operation:  4 AA alkaline batteries included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Tested extensively in outdoor and marine environments – performed flawlessly
    • fits virtually all left and right swing doors
    • Choose from 6 architectural finishes –  premium finishes may be subject to 2-3 week lead time, including; bright brass (605), satin brass (606), bright chrome (625) and dark bronze with brass accents (744)
    • 3,000 event audit trail on both sides
    • Quick and easy installation.  Patented electrobolt  technology provides “sandwich” fitting.  No wiring to or through door; no risk of pinched wires.  Instructions and two-hole drilling template supplied
    • Out of the box ready – programming and operating manuals provided
    • Emergency key override using universal 6 pin cylinder (common for commercial applications) with Schlage C keyway.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose  Need this same lock with IC or Removable coreClick here
    • 1-year manufacturer warranty; built-in warranty counter

    Outclasses.  Outlasts.  Outperforms.  Upgrading your airport jet-way, police interrogation room, mental health facility or other locks is easy with the E-Plex 5086 double-sided.  This two-way access control system combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure codes for access.  And since this is auto-locking, you can be assured that doors will always be locked.  This adds another layer of security to protect confidential and/or private information in the spaces behind those doors.  Does this lock require AC/DC current?  Nope.  It's fully battery powered, saving you on the overall costs of implementation and installation.  You can be up and running in less than hour time.  "I've never heard of Kaba, who are they?"  Glad you asked!  Kaba has been around since the 1800's making first-class locking technologies.  They are the largest provider of access control products in the world.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Old Audit Trail, Double-Sided, Passage Mode
    Solution Electronic
    Warranty 1 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Brand E-Plex

    Door requirements

    Door Handing Non-Handed
    Battery Life 100,000 Cycles
    Door Prep Mortise, Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Weight 15.7 lbs
