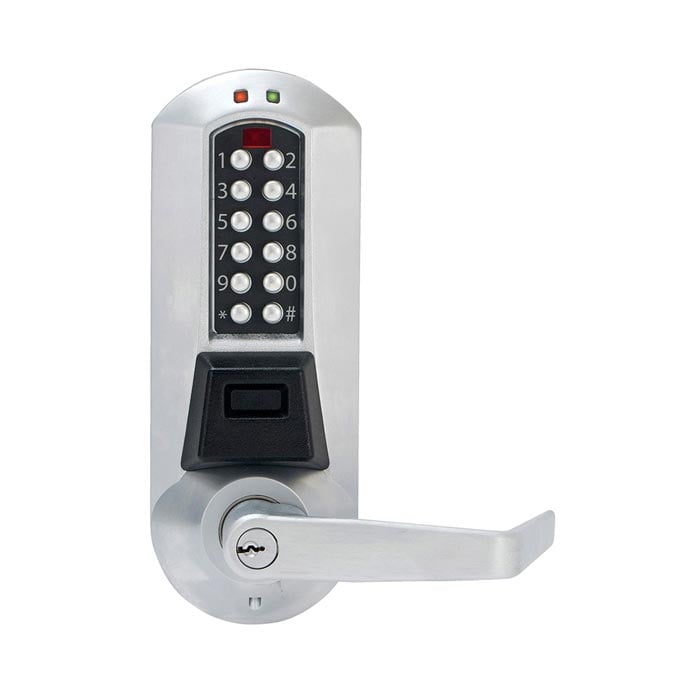

  • dormakaba E-Plex E5700

    Extra Heavy-Duty Grade 1 Electronic PIN/Prox lock

    SKU: E5731XSWL62641

    E-Plex Wireless and E-Plex

    The dormakaba E-Plex E5700 is a Extra Heavy-Duty PIN/Proximity lock featuring E-Plex’s Patented LectroBolt technology. No more having to run wires at the door, eliminating the risk of damage from pinched wires. Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.


    Quantity left : -1



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Extra Heavy-Duty ANSI/BHMA Grade 1 Dual Credential PIN/Prox lock
    • Features LearnLok™ programming.  New!  Pull audit trails with Auditor Kit without needing to purchase software
    • Stand-alone advanced access control at one-fifth (1/5) the cost of primitive systems.  A new standard in institutional facility management
    • Tested extensively in outdoor and marine environments; performed flawlessly
    • Cylindrical latchbolt locking mechanism (latch includes a 1/4″ deadlocking plunger bolt to prevent jimmying)
    • Supports Up to 3000 Users:  Pass-codes can be 4-8 digits in length (high security with over 100 million possible combinations)
    • Program at keypad, card reader, or via PC
    • You determine what’s required for access; PIN only, PROX card only, or PIN + PROX card
    • Network and PC Programming (offline):  Requires laptop/netbook (mini-laptop) and E-Plex Enterprise Implementation Kit (sold separately at checkout)
    • HID, and 125 kHz, 26 to 84-bit format type prox cards are supported (HID cards available at checkout)  Have existing magstripe or ID badges you want to use?  No problem, simply add the HID adhesive prox tags at checkout
    • Audible and Visual Programming Indicators; visual tamper indicator
    • Three Operating Modes:  PIN/card access, passage (can be toggled on/off or pre-programmed to re-lock after certain number of hours), and lockout mode
    • Five authority levels lets you control who can do what
    • Time-Determined Access:  Using software you can program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
    • First Manager In Feature:  Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
    • Passage mode can be manually toggled at the lock
    • Track entries of who entered and when with built-in audit trail (unit stores last 30,000 events)
    • Battery Operation:  180,000 cycles on 4 AA alkaline batteries, included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Optional remote unlock feature
    • Vandal resistant, solid metal push buttons
    • Patented LectroBolt ‘sandwich-fitting’ yields a 90% reduction in installation time over wired access control systems.  Instructions and two-hole drilling template supplied
    • Fits virtually all left and right swing doors
    • Finish:  Choose from multiple architectural finishes including standard satin chrome (626) and premium finishes.  Premium finishes may be subject to 2-3 week lead time
    • Emergency Key Override:  Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose.
    • 2 3/4″ Backset included (2 3/8″ available at checkout); How do I measure?
    • 3-year manufacturer warranty from date of install; memory has a built-in warranty counter

    The E-Plex 5700 HID card lock provides you a consolidated card access control system using single or multi-factor authentication to protect sensitive commercial spaces, or less susceptible areas where convenience is a priority.  Programming from the lock's keypad, a stand-alone PC, or your network simplifies access control management of doors and users.


    Achieving remarkable results is easy with E-Plex dual PIN/Prox locks.  Companies from the banking, transportation, institutional, healthcare, education, and aviation industries rely on the unshakable confidence of having E-Plex protecting their openings and assets from unauthorized entry or access.  Loss-prevention and access control challenges are met head-on at a fraction of the time and cost of primitive wired systems.


    Featuring E-Plex's Patented LectroBolt technology, the 5700 Series abolishes having to run wires to or through the door, while eliminating the risk of damage from pinched wires.  The outcome is even more money saved on implementation and installation.  Security professionals say this is one of the easiest card locks on the market to install.


    From the 145 year old principal leader in security solutions and built on five decades of accomplished engineering success, the E-Plex prox is reassuringly sturdy, functionally comprehensive, and a true workhorse.  There is nothing else like it.  Want to make your workplace more secure without sacrificing any convenience?  E-Plex prox locks help you figure it out.GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.


    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Old Audit Trail|Passage Mode|Scheduling|Timed Codes
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand E-Plex Wireless

    Door requirements

    Door Handing Universal
    Battery Life 120,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore|Edge Bore: 1 in.|Through-Bolt Hole(s)


    Code Length 4 to 8 Digits
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors
    Users 3,000


    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 13/16 (W) x 2 1/8 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Weight 9.5 lbs
