  • dormakaba E-Plex E2067LL626

    Keypad Mortise Lock with Deadbolt

    SKU: E2067LL62641

    E-Plex

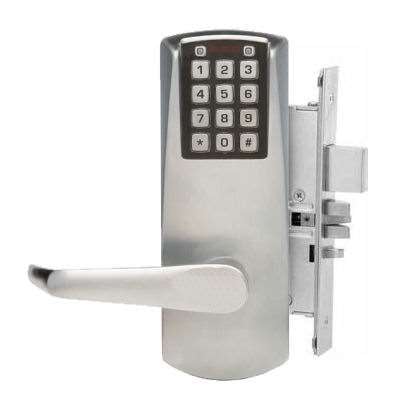

    Who needs keys anymore? The Kaba E-Plex E2067LL626 is a keyless mortise lock that retrofits traditional mortise locks. Easily secure offices, apartment units, and other applications with a simple PIN code. Tenants, building managers, and staff don't ever need to worry about losing their keys, or having them stolen. Simply change or delete codes if someone moves out or leaves.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $158.40

    Call For Price
    • 100 Users Supported: Millions of possible code choices
    • Manually-Locking Deadbolt for Increased Privacy and Protection: Deadbolt operated by thumblatch on interior side of the door. Auto-Deadbolt model available upon request
    • Bump and Pick Proof: May be ordered with key override
    • Satin Chrome Finish: Satin brass available upon request
    • 3 Operation Modes: PIN access, lockout, & passage
    • Lockout Mode: De-activates all regular user and manager codes, excluding Master code
    • Passage Mode: Toggle on/off, or pre-program to re-lock after a certain number of hours
    • Full-size ADA Lever: Field reversible for left and right swing doors
    • Perfect for Wood and Metal Doors: Installation screws for both included
    • No Electricity Necessary: No need to run wires to door, lock runs on AA batteries. Lock data/programming maintained if batteries fail
    • Program Via the Lock's Keypad
    • Rugged Clutch Mechanism: Ensures long life & durability
    • Four Authority Levels: Master, Manager, User and Service (Service users allowed only 'one-time' access, or access for 1-24 hours)
    • Auto-Locking Latch: Program into passage mode at any time by following command-sequence. Passage mode will not work with deadbolt engaged
    • Free Exiting at All Times with Inside Lever
    • Patented LectroBolt: Ease of Installation
    • Retrofits ASM (American Standard Mortise) Lock-sets
    • Pick & Bump Proof. See standard keyed
    • Keypad Buzzer Volume: Adjustable
    • 3-year Manufacturer Warranty; Built-in warranty counter in lock memory

    Metal keys no longer apply with this new electronic lock system by Kaba.  As an ideal stand-alone system for a direct retrofit of traditional mortise locks, the E-Plex E2067 makes securing military housing quarters, apartment units, dorm halls, and private residences and offices a modern endeavor.  A substantial lock, and precision milled for year-round durability even in the toughest enviroments, this keyless mortise lock streamlines the logistical maintenance of offering tenants top-level protection in their lodging facilities.  In an apartment building, on a campus, or on a military base where residents frequently change units — or relocate because of a change in their work — the time and expense of continually tracking down lost keys and re-keying becomes overburdensome.  With the E-Plex keyless mortise lock, secured PIN sequences take the place of keys.  Tenants, building managers, and staff don't ever need to worry about losing their keys, or having them stolen.  When someone leaves, you simply change/delete their PIN, bypassing the need to make any changes to your physical locks.  This ease of re-programming feature alone will validate your investment the first time you don't have to do a lock replacement because a tenant lost their key, or a master key went missing.

    Product Enhancement | Effective 3/1/12 E-Plex 2000 Series locks now available with audit trail and software management. Utilizing the M-Unit Kit (sold separate), and E-Plex Standard Software (Download FREE), you can access the last 1,000 audit events recorded in memory, including the use of the mechanical key override.

    GoKeyless™ is a factory trained and authorized dormakaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Audit Trail, Passage Mode
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Mortise w/Deadbolt
    Brand E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 100,000 Cycles
    Door Prep Mortise, Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 100

    Dimensions

    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 3/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 1/4 (W) x 2 1/4 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 15/16 (H) x 3 5/16 (W) x 2 3/16 (D) in.
    Weight 10 lbs
