    Extra Heavy Duty Keyless Lock

    SKU: 5041XSWL26D41

    dormakaba Simplex



    Keep it simple. The Simplex 5041 hits the top of the charts for security and reliability with easy keyless access. This extra heavy duty and fully mechanical keyless lock reduces the costs and problems associated with electronic maintenance, managing keys, and labor. Features key override and passage mode.

    Finish
    Key Override

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $100.43

    Call For Price
    • ADA compliant lock
    • 100% Mechanical push-button lock
    • Thousands of possible codes combinations
    • Change code with change tool (provided) from exterior side on 5021 and 5041 models, interior side on 5031 and 5051 model to meet Dept. of Defense standards
    • Auto-locking with passage mode feature (in passage mode – set from inside – lock will latch shut but not lock, allowing for code-free entry)
    • Covers existing standard ASA 161 door hole
    • Extra Heavy Duty Latchbolt with deadlocking plunger
    • Fits left and right swinging doors
    • All hardware and instructions included with order
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Includes mechanical key override for emergency access
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • 3-year manufacturer warranty

    **Lock shipped standard with Schlage brand conventional cylinder for key override in 5021, 5031, and 5041 non-IC models.

    GoKeyless™ is a factory trained and authorized Kaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

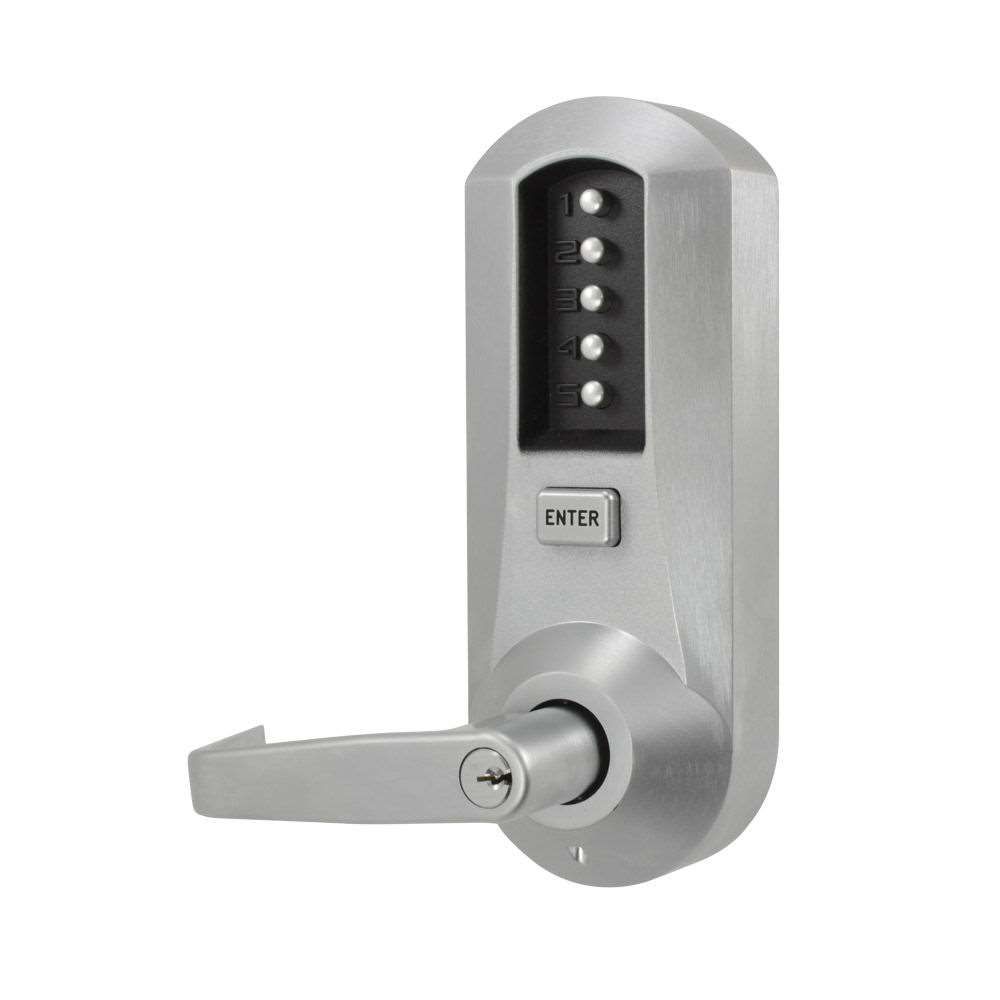

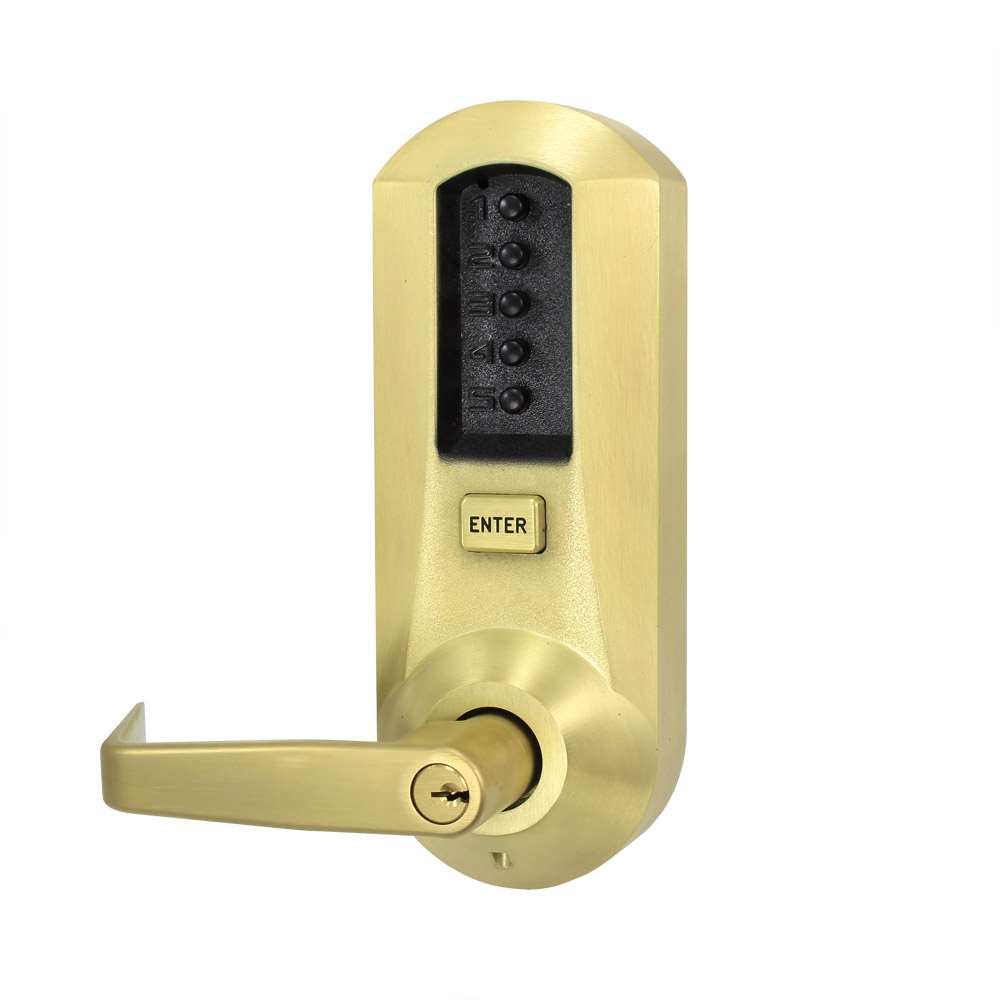

    Simplex 5041 - Combination Entry (change codes from exterior), Key Override & Passage

    Industrial strength combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  The Simplex 5000 Series is an ANSI rated Grade 1 security lock that is highly weather resistant.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resistant, the Simplex series of PIN based locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating A156.2|Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Lock Features Passage Mode
    Solution Mechanical
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand dormakaba Simplex

    Door requirements

    Door Handing Reversible
    Door Prep Standard 2 1/8 in. Cross-Bore|Edge Bore: 1 in.|Through-Bolt Hole(s)

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
    Weight 9.25 lbs
