  • Schlage CO-200-MS70

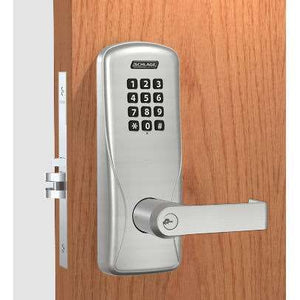

    Mortise Electronic Commercial Lock

    SKU: CO-200-MS70-KP-RHO-626-PD-C


    Panic bar/exit device sold separately.

    The Schlage CO-200 series offers offline PC programmable stand-alone access control for your door. Manage users instantly, and save money when someone moves on because you won't be forced to cut new keys or re-key your cylinders. Well-suited for higher security openings, access points with larger amounts of user traffic, and applications where you need to track who goes in and out.

    Key Override

    Quantity left : 2



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    This page is for the stocked model. We accept custom orders! To see the options, download ordering guide, then contact us for a quote.

    • Heavy-duty, ANSI/BHMA Grade 1 electronic offline lock system; Leads in independent third-party testing
    • Users:  Up to 5,000
    • Upgradeable — Lock can be upgraded to new credential reader and/or migrated to networked solution without removing lock from the door. Reader options; MSK Magnetic stripe (swipe) + keypad, magnetic stripe (swipe), MGK magnetic stripe (insert) + keypad, MG magnetic stripe (insert), MT multi-technology | proximity & smart card, and MTK multi-technology + keypad | proximity & smart card.  Note:  Multi-technology readers require Schlage SMS Select software
    • Legal entry by PIN code; codes may be 3-6 digits in length
    • Eliminates functional deficits of traditional mechanical lock systems
    • Manual & PC Programming — By fingertip at the keypad, or via your Computer*. *Computer programming requires Schlage SMS Express software, and Handheld Device (HHD) (sold separately).  User data, lock configuration files upload to lock via HHD
    • Installs with drill and screwdriver into wood/metal door prepped for cylindrical latch
    • Audit Trail:  Connect HHD to the lock to report on prior 5,000 events that allow you to track usage and events using Schlage SMS access control software
    • Report on mechanical key usage and battery status
    • Auto-locking classroom/storeroom mortise lockset; Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status
    • Set up to 8 unlock, and time zone schedules, as well as 32 holiday
    • 1st Person-in:  Restricts users from gaining access — even if door is set on timed unlock — prior to entry of an individual (typically supervisor/manager) with the 1st person-admittance rights
    • Satin Chrome with Rhodes style lever
    • Fits left and right swing doors
    • Step-by-step easy to follow installation and operating manual included
    • Mechanical key override using 6-Pin Schlage standard cylinder (compatible with multiple cylinder types).  You may select a different lever cylinder type, including less standard Schlage cylinder, or custom order with IC (Inter-changeable Core) cylinder prep

    †Auditing, scheduling, and access control features require software


    • Dimensions: Exterior – 3.44″ (W) x 9.46″ (H) x 3.67″ (D). Interior – 3.44″ (W) x 12.38″ (H) x 3.67″ (D)
    • Credential Verification Time: = 1 second
    • Visual/Audible Communications: Tri-colored LED’s & audible indicators (field configurable)
    • System Interface: Handheld Device
    • Voltage Range: 4 VDC to 26 VDC
    • Power Supply: 4AA Batteries, 8AA Batteries, or may be hardwired with 12 VDC or 24 VDC
    • Max Current Requirement: Up to 250 mA
    • Battery Life: Up to 2 yrs with 4AA
    • Operating Temperature – Exterior: -31° to 151°F (-35° to 66°C) (no battery)
    • Operating Temperature – Interior: 32° to 120°F (0° to 49°C) (battery)
    • Operating Humidity: 0 – 100% condensing
    • Certifications: ANSI/BHMA A156.25 Grade 1, UL294, UL10 C, FCC Part 15, ADA
    • Accessories: Handheld Device (HHD), Schlage SMS software

    GoKeyless is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Anyone who knows security will tell you Schlage does it as well or better than anyone.  A history dating back 90 years for developing lines of security solutions you can trust, Schlage continues this tradition with their Schlage CO-200 offline computer programmable mortise locks.  Tailor-made for openings with medium to large numbers of users, and applications where you need to track who goes in and out, Schlage CO-200 keyless mortise locks alleviate the complications caused by lost keys and turnover.  With Schlage CO 200 electronic locks you create a wall of protection around your business, substantially improve security for areas with sensitive assets or confidential information (Ideal for Healthcare environments in order to meet HIPAA regulations for instance!), and gain real-time oversight with time/date stamped records of access.  By switching to these locks you'll be able to easily add and delete users instantly, and you'll save your money when someone moves on because you won't be forced to cut new keys or re-key your cylinders.  Schlage CO200 electronic mortise locks replace the immensely popular and now legacy Schlage King Cobra and Schlage Pro Series locks.  Features you've enjoyed in these locks including the VandlGuard lever protection are built-in to the CO-200 series, along with new innovations such as integrated intelligence, and a key-in-lever design which is compatible with most brands of IC core cylinders. Schlage didn't stop there though, what we really like is they've created the CO-200 locks to fit a wider variety of door conditions and credentialing requirements, as well as made these locks backwards compatible with the Schlage legacy products.  This means if you have an installed base of these locks, you can integrate the Schlage CO-200 lock into your existing system, and manage everything with the Schlage HHD hand-held device.  Versatile, compatible, and reliable, Schlage CO locks provide you a maze of possibilities.

    Did You Know? Schlage CO and AD locks are the first electronic locks to be UL (Underwriter's Laboratory) 294 certified.  This is a tougher certification to obtain, as it tests the electronics, not just the mechanical components.  Tests for accelerated aging, corrosion resistance, destructive attack, temperature, humidity, and rain are performed.  By meeting UL 294 standards, Schlage locks give you more reliability, and preserve your investment.

    GoKeyless™ is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.


    Manufacturer Allegion
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating A156.25, Grade 1 (Best)
    Event Scheduling 8, Automated Unlock/Lock
    Finish Satin Chrome
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 1 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Brand Schlage

    Door requirements

    Door Handing Universal
    Battery Life 2 Years
    Door Prep Mortise, Through-Bolt Hole(s)
    Latch Profile 3/4 in. Throw


    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Timed Entry Allowance 1 sec.


    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Inside Dimensions ["3.44 (W) x 10.10 (H) x 2.96 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Certifications ADA, FCC Part 15, RoHS, UL 10C, UL 294, UL Canada
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 3.44 (W) x 9.46 (H) x 3.67 (D) in.
    Weight 12 lbs
