Mortise PIN/Prox Door Lock
SKU: CO-200-MS70-PRK-RHO-626-PD-C
Schlage
MSRP $1,590.00
This page is for the stocked model. We accept custom orders! To see the options, download ordering guide, then contact us for a quote.
†Auditing, scheduling, and access control features require software

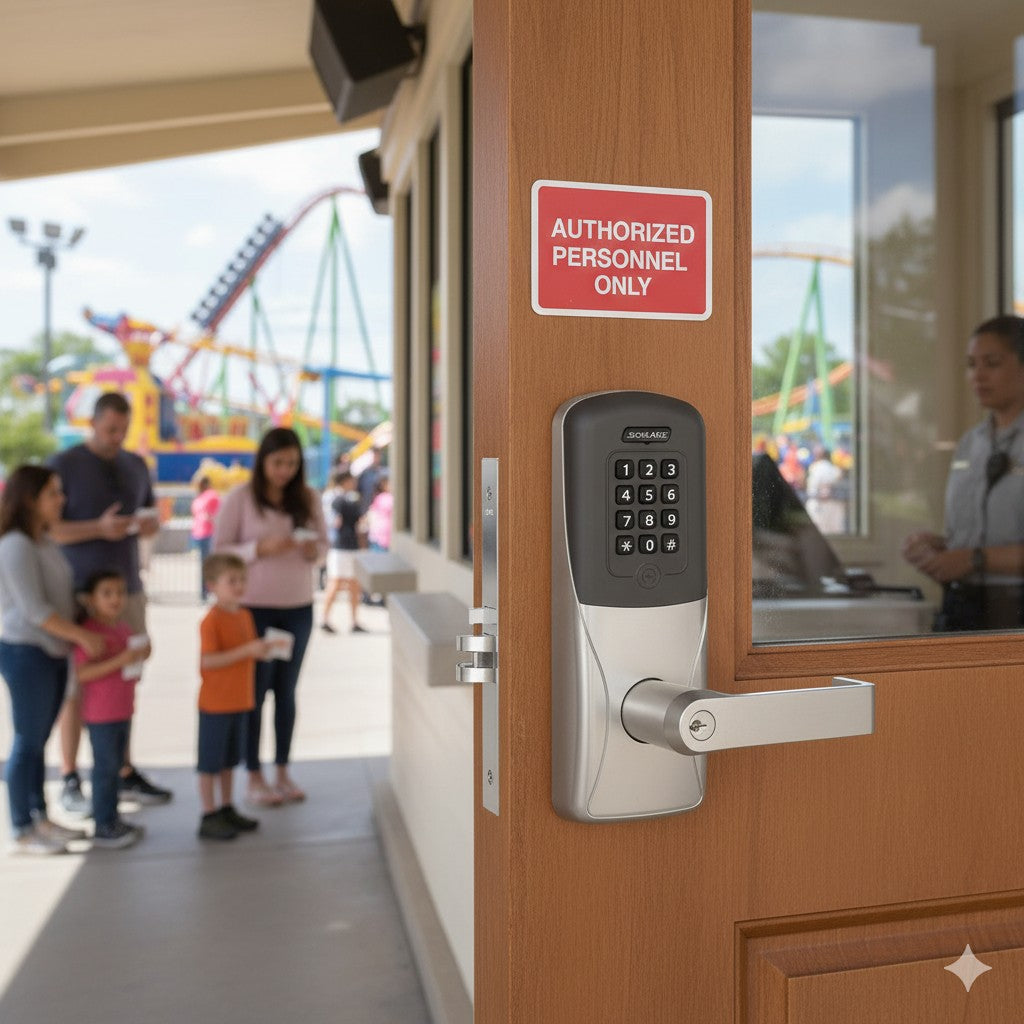

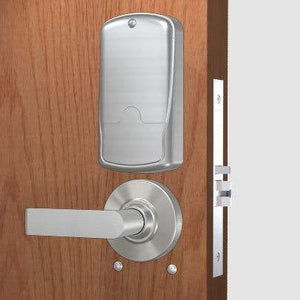

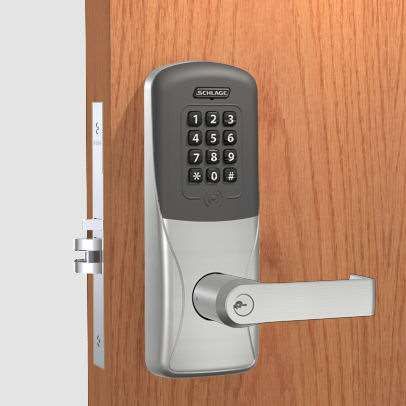

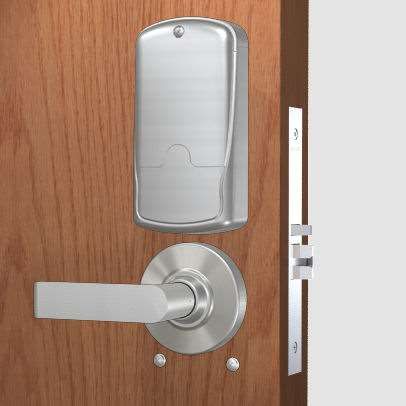

Anyone who knows security will tell you Schlage does it as well or better than anyone. A history dating back 90 years for developing lines of security solutions you can trust, Schlage continues this tradition with their Schlage CO-200 computer programmable dual security keypad/prox mortise locks. Well-suited for higher security openings, access points with larger amounts of user traffic, and applications where you need to track who goes in and out, Schlage CO-200 prox card locks alleviate the complications caused by lost keys and turnover, and offer a solution which is harder to duplicate than using a strictly PIN code system. The additional benefit of 'prox' is it's more durable than magstripe. This extends the life of your lock and credentials, and lets you use these locks for a wide array of environmental conditions. With Schlage CO 200 card locks you create a wall of protection around your business, substantially improve security for spaces containing sensitive information (Ideal for Healthcare environments in order to meet HIPAA regulations for instance!), and gain real-time oversight with time/date stamped records of access. By switching to these locks you'll be able to easily add and delete users instantly, and you'll save your money when someone moves on because you won't be forced to cut new keys or re-key your cylinders. Schlage CO200 mortise prox locks replace the immensely popular and now legacy Schlage King Cobra and Schlage Pro Series locks. Features you've enjoyed in these locks including the VandlGuard lever protection are built-in to the CO-200 series, along with new innovations such as integrated intelligence, and a key-in-lever design which is compatible with most brands of IC core cylinders. Schlage didn't stop there though, what we really like is they've created the CO-200 locks to fit a wider variety of door conditions and credentialing requirements, as well as made these locks backwards compatible with the Schlage legacy products. This means if you have an installed base of iButton locks, you can integrate the Schlage CO-200 prox lock into your existing system, and manage everything with the Schlage HHD hand-held device. New combo Prox/iButton fobs are now available which replace the traditional iButton fobs and let you manage both Proximity and iButton technology within the same facility. Versatile, compatible, and reliable, Schlage CO mortise locks provide you a maze of possibilities. Did You Know? Schlage CO and AD locks are the first electronic locks to be UL (Underwriter's Laboratory) 294 certified. This is a tougher certification to obtain, as it tests the electronics, not just the mechanical components. Tests for accelerated aging, corrosion resistance, destructive attack, temperature, humidity, and rain are performed. By meeting UL 294 standards, Schlage locks give you more reliability, and preserve your investment.
GoKeyless™ is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.
Manufacturer | Allegion |
---|---|
ANSI Rating | Grade 1 (Best) |
Battery Type | AA |
BHMA Rating | A156.25, Grade 1 (Best) |
Event Scheduling | 8, Automated Unlock/Lock |
Finish | Satin Chrome |
Lock Features | Audit Trail, Passage Mode, Scheduling, Timed Codes |
Radio Frequency | 125 kHz |
Solution | Electronic |
Warranty | 2 Year Manufacturer |
Handle Type | Lever Handle Door Locks |
Reader Type | Prox Card/Fob RFID |
Access Type | Key Keypad - Digits Proximity Card/Fob |
Locking Device | Mortise |
Brand | Schlage |
Door Handing | Universal |
---|---|
Battery Life | 2 Years |
Door Prep | Mortise, Through-Bolt Hole(s) |
Latch Profile | 3/4 in. Throw |
Code Length | 3 to 6 Digits |
---|---|
Timed Entry Allowance | 1 sec. |
Users | 2,000 |
Exterior Dimensions | 3.44 (W) x 9.46 (H) x 3.67 (D) in. |
---|---|
Inside Dimensions | ["3.44 (W) x 10.10 (H) x 2.96 (D) in."] |
Door Thickness Minimum | 1 3/4 in. |
Certifications | ADA, FCC Part 15, RoHS, UL 10C, UL 294, UL Canada |
Door Stile Width | Minimum 5 in. |
Exterior Dimensions | 3.44 (W) x 9.46 (H) x 3.67 (D) in. |
Weight | 12 lbs |
