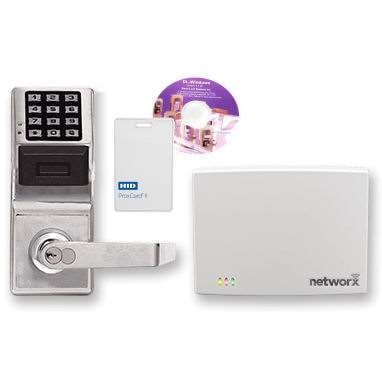

  • Trilogy Networx NETWXSTARTER

    Wireless Access System-in-a-Box


    Alarm Lock Trilogy and Trilogy Networx

    Please note: Wireless hub pictured is not included. It is available for purchase separately.

    The Trilogy Networx NETWXSTARTER allows you to install your very first door with this bundled starter pack from Trilogy. Get up and running quickly as all necessary components for a wireless one door access control system are included in the box. Expandable to 2,000 doors. Less than half the price of a wired system!

    Quantity left : 7



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    GK Care Technical SupportHourly rate for GoKeyless clients only (reg. rate is $115/hour) Read MoreCustom Setup & ProgrammingLet us do the work for you. We get you up and running. Read More



    • PDL6100
    • AL-IME2
    • 30 – HID Prox Cards
    • DL-Windows Software CD
    • QR Code to Free Online Training Webinar
    • Heavy-duty ANSI Grade 1 wireless security
    • Cylindrical deadlatch locking mechanism
    • Supports up to 5000 users via 3-6 digit PINs, or HID prox cards
    • Compatible with any HID 125kHZ prox cards 26-48bit
    • Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx lock, or the network’s PC
    • Operates on (4) C size batteries, included
    • Unsurpassed 5-year+ battery life; no supplementary power supplies needed
    • Manage up to 63 locks per AL-IME2 gateway, and 2000 locks system wide using gateways and wireless expanders
    • On demand user, and user group scheduling (500 timed schedule capacity)
    • On demand audit trail reporting with time/date stamp (Prior 35,000 events)
    • Offline programming may be done at the PDL6100’s 12-button keypad, or prox card reader
    • T2, and T3 Trilogy customers who maintain user and door information can continue to use their existing DL-Windows database to seamlessly manage Networx.  Add one new Networx lock, or 2000 to existing system
    • Uninterrupted Door Access Usage:  Lock retains all programming and data even in the event of power outage or server offline occurrence
    • Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
    • Remote System Management:  Accomplished with VPN/remote capability
    • 1 Button remote release available (sold separately)
    • Weatherproof for installation in harsh settings
    • Architectural finish
    • Key Override:  Includes standard 6-Pin cylinder with Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
    • 2-year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy Networx dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Install your very first door with this bundled starter pack from Trilogy. Realize over $300 in savings (if purchased separately) and get up and running quickly as all necessary components for a wireless one door access control system are included in the box. Expandable to 2,000 doors (a lot but we hope you get there!), Networx secures your facility with identification cards and empowers you to act globally, eliminate door-to-door labor, and schedule updates to download automatically to the lock. Less than half the price of a wired system, now in a cost-effective packaged kit from the makers of Trilogy, the #1 access lock in its class.


    Manufacturer Alarm Lock
    ANSI Rating Grade 1 (Best)
    Battery Type C cell
    Finish Satin Chrome
    Lock Features Old Audit Trail, Lockdown, Passage Mode, Remote Control, Scheduling
    Radio Frequency 900MHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy
    Trilogy Networx

    Door requirements

    Door Handing Non-Handed
    Battery Life 5 Years
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)


    Code Length 3 to 6 Digits
    Fire Rating UL 3 hr. Latch
    Users 5,000


    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Dimensions Lock: 8 (H) x 3 1/4 (W) x 1 11/16 (D) in.
    Door Stile Width Minimum 5 in.
    Weight 12 lbs
