  • dormakaba ED50LE

    Swing Door Operator

    SKU: 7266003

    dormakaba



    Open new doors. The Dorma ED50LE Swing Door Operator provides barrier free access to your doors. Field-adjustable at the flip of a switch and packed with adjustable features, this door closer meets opening requirements with ease. Simple and easy to install.

    Arm
    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $315.00

    • Integrated hardware power supply and relay, allowing for seamless control of security hardware
    • Built-in door position status, indicating door open or door closed
    • Close and latch in case of power loss (adjustable closing speed on loss of power)
    • Hardware pre-load functionality for reliable operation
    • Built-in interface for connection to any access control system
    • Ultra quiet operation
    • Smoke evacuation system (Blow-Open)

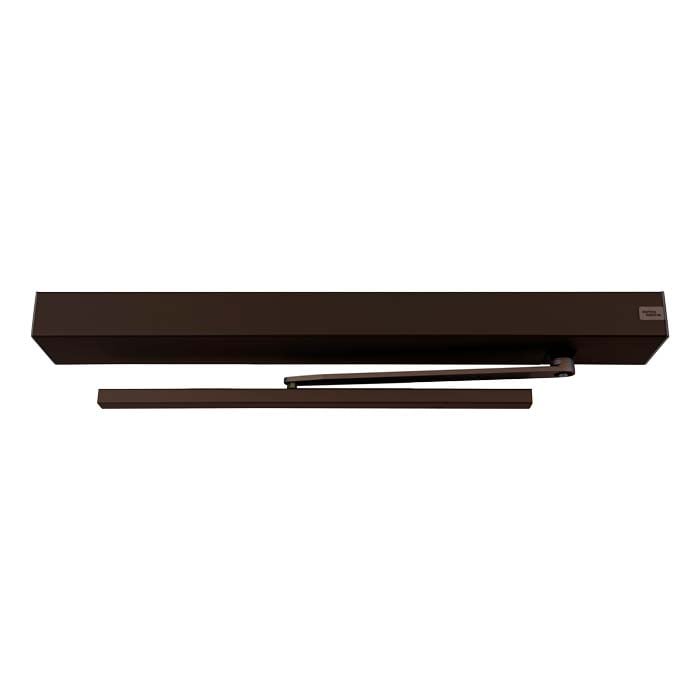

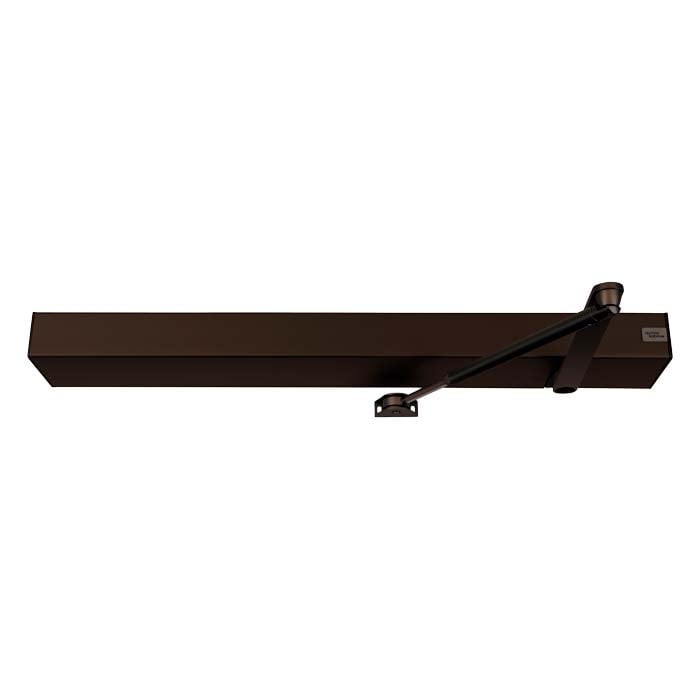

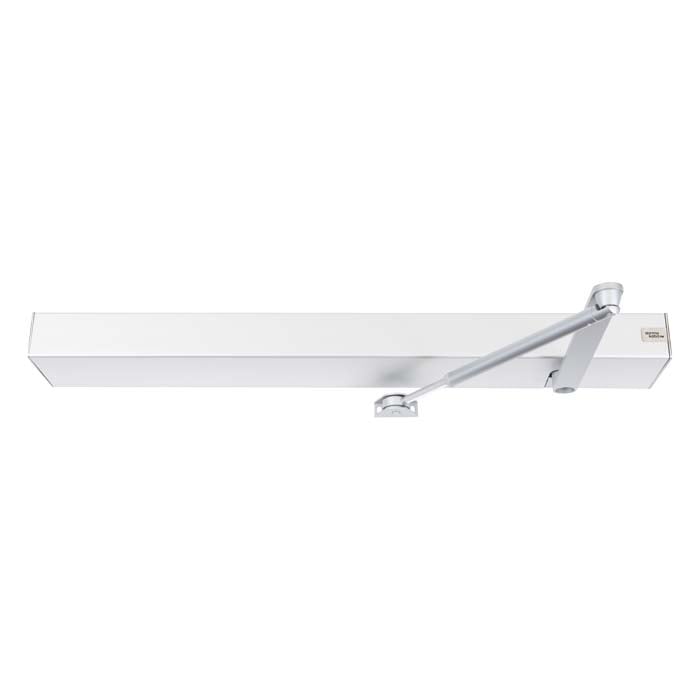

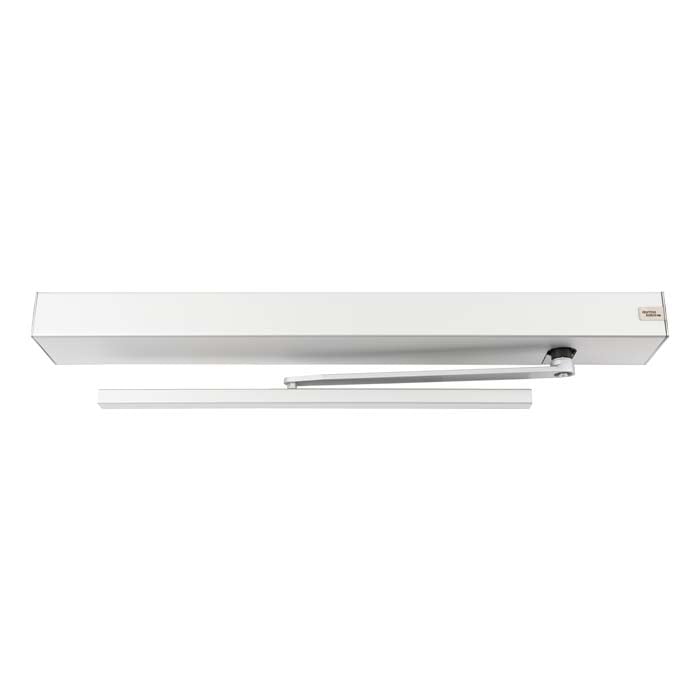

    • The operators can be installed as push versions with standard arms or pull versions with a slide channel
    • Mounting plate installation provides a simple one-person install process with easy electrical hookup and without heavy lifting
    • External power supply available
    • Touchless kit available
    • Compatible touchless switch available
    • Additional finishes, covers and variations are available to fit nearly any application
    The Dorma ED50LE Swing Door Operator provides barrier free access to your doors. Suitable for hospital, retail, and commercial doors that see heavy foot traffic daily. Operation is whisper quiet with a stylish ultra slim profile. Field-adjustable at the flip of a switch and packed with adjustable features, this door closer meets opening requirements with ease. Performs and responds with intelligent controls in high wind conditions. With a built-in connection interface, the ED50 integrates into any existing or new access control system. ADA compliant operation can be achieved using various wall switches, sensors, and remote control and further can be incorporated into building security entry requirements. Barrier-free operation with the ED50LE provides unhindered automated access for people with disabilities.

    Basic

    Manufacturer dormakaba USA Inc.
    Finish Clear Anodized, Dark Bronze Anodized
    Holding Weight 220.46 lbs. (100kg)
    Power 240 V AC 50 Hz +/– 10 %
    Brand dormakaba

    Door requirements

    Security

    Dimensions

    Certifications AS1905.1, AS5007
    Dimensions 26.97 x 2.76 x 5.12 in. (685 x 70 x 130 mm)
    Weight 26.46 lbs. (12 kg)
