  • dormakaba E-Plex E5210

    Electronic Exit Lock

    SKU: E5210XSWL62641

    E-Plex Wireless and E-Plex

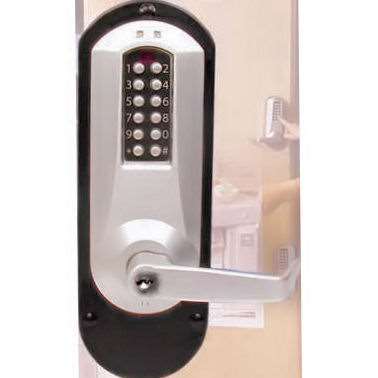

    The Kaba E-Plex E5210 makes upgrading your traditional key locks or mechanical push-button locks easier than ever. This lock combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control. You and your staff can now use secure codes for access.

    Finish

    Quantity left : 4

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $194.22

    • Extra heavy-duty exit trim lock.  ANSI/BHMA Grade 1 Certification.  Includes battery pack – mounts above push-bar device on interior side of door
    • Interfaces with today’s leading panic bars.  Compatibility:  Arrow S1250, Arrow S3800, Corbin Russwin 5200 / 5200A, Detex 10 / F10, Dorma 9300 / 9300F, Monarch 18R / F-18R (requires special K hub adapter), Precision 21 / FL 21, Sargent 2828, Sargent 3828, Sargent 8800, Sargent 8888, Von Duprin 22 / 22F, Von Duprin 98 / 98F, Von Duprin 99 / 99F, Yale 7100
    • Supports 3000 users per door; 4-8 digit user access codes (100 million possible code combinations)
    • Network and PC Programming (offline):  Requires laptop or netbook and E-Plex Enterprise Implementation Kit (sold separately at checkout)
    • Time-Determined Access:  Via software, program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
    • First Manager In Feature:  Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
    • Passage mode can be manually toggled at the lock
    • 6 different authority access levels let you determine who has privileges to specific lock functions
    • Battery Operation:  Up to 180,000 cycles on 4 AA alkaline batteries, included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Tested extensively in outdoor and marine environments – performed flawlessly
    • Fits virtually all left and right swing doors
    • Track Entries:  Who entered and when with audit trail feature (reader unit stores last 30,000 events)
    • Quick and Easy Installation:  Patented electrobolt  technology provides “sandwich” fitting.  No wiring to or through door; no risk of pinched wires  Instructions and two-hole drilling template supplied
    • Out of the Box Ready:  Programming and operating manuals provided
    • Optional remote unlock feature
    • Multiple architectural finishes including standard satin chrome (626) and premium finishes.  Premium finishes may be subject to 2-3 week lead time
    • Emergency Key Override:  Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose
    • 3-year manufacturer warranty; built-in warranty counter

    Upgrading your panic bar doors to electronic push-button keyless access is easier than ever with the E-Plex 5200 Exit Series.  This lock combines the strength, simplicity, and reliablity of the distinguished Kaba Simplex Exit with the enhanced security and convenience of stand-alone advanced access control.  You and your staff can use secure codes for access.  And since this is auto-locking, you can be assured that your perimeter exit doors will always be locked.  Can this lock tell me who and when has entered the building?  Absolutely.  The lock stores this information, and with a compatible PDA device you can quickly download it.  What about AC/DC current, do I need to run wires to the door?  No wiring is needed.  It's fully battery powered, saving you on the overall costs of implementation and installation.  You can be up and running in less than hour time.  "I've never heard of Kaba, who are they?"  Glad you asked!  Kaba has been around since the 1800's making first-class locking technologies.  They are the largest provider of access control products in the world.

    GoKeyless™ is a factory-trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year. Simple. Smart. Scalable

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Panic/Exit
    Exit - Rim
    Brand E-Plex Wireless
    E-Plex

    Door requirements

    Door Handing Non-Handed
    Battery Life 180,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 3,000
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 12 5/16 (H) x 4 1/4 (W) x 4 1/16 (D) in.
    Inside Dimensions ["3 7/8 (H) x 3 3/16 (W) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 12 5/16 (H) x 4 1/4 (W) x 4 1/16 (D) in.
    Weight 9.5 lbs
