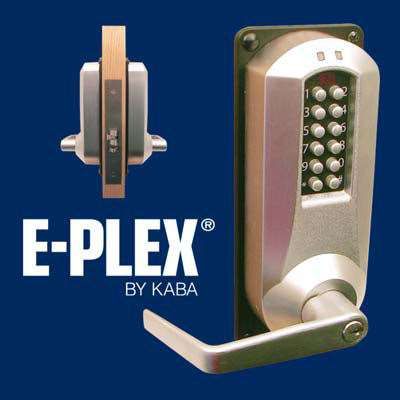

  • dormakaba E-Plex E5286

    Entry/Exit (Back-to-Back) Access Control

    SKU: E5286BWL62641

    E-Plex Wireless and E-Plex



    The Kaba E-Plex E5286 combines the strength, simplicity, and reliability of the distinguished Kaba Simplex, with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure codes for access. Since this is auto-locking, you can be assured that doors will always be locked.

    Finish
    Key Override

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $336.12

    Call For Price
    • Heavy Duty – ANSI/BHMA Grade 1, stand-alone, double-sided, access control lock
    • Mortise locking mechanism
    • Supports 3000 users per door on both sides of the lock; 4-8 digit user access codes (100 million possible code combinations)
    • Network and PC Programming (offline):  Requires laptop and E-Plex Enterprise Implementation Kit (sold separately at checkout)
    • Time-Determined Access:  Via software, program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
    • First Manager In Feature:  Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
    • Passage mode can be manually toggled at the lock
    • 6 different authority access levels let you determine who has privileges to specific lock functions
    • Battery Operation:  Up to 100,000 cycles on 4 AA alkaline batteries, included.  Batteries located in interior housing cover.  Low battery indicator.  Non-volatile memory; lock’s data preserved if batteries fail
    • Tested extensively in outdoor and marine environments; performed flawlessly
    • Fits virtually all left and right swing doors
    • Track Entries and Exits:  Who entered and when with audit trail feature (reader unit stores last 30,000 events)
    • Quick and Easy Installation:  Patented electrobolt  technology provides “sandwich” fitting.  No wiring to or through door; no risk of pinched wires.  Instructions and two-hole drilling template supplied
    • Out of the Box Ready:  Programming and operating manuals provided
    • Multiple architectural finishes including standard satin chrome (626) and premium finishes.  Premium finishes may be subject to 2-3 week lead time
    • Emergency Key Override:  Universal 6 pin cylinder (common for commercial applications) with Schlage C keyway provided.  Two nickel silver keys, and 4 additional tailpieces (part that connects outside lock to inside lock) included.  These tailpieces allow you to use other name brand cylinders in the lock should you choose.  Need this same lock with IC or Removable core
    • 1-year manufacturer warranty; built-in warranty counter



    Simple.  Smart.  Scalable.  Upgrading your airport jet way, police interrogation room, mental health facility, or other locks is fast and simple with the E-Plex 5286.  This back-to-back lock combines the strength, simplicity, and reliability of the distinguished Kaba Simplex with the enhanced security and convenience of stand-alone electronic access control.  You and your staff can now use secure codes for access.  And since this is auto-locking, you can be assured that doors will always be locked. This adds another layer of security to protect you and your staff.  Does this lock require AC/DC current?  Nope.  It's fully battery powered, saving you on the overall costs of implementation and installation.  You can be up and running in less than hour time.  "I've never heard of Kaba, who are they?"  Glad you asked!  Kaba has been around since the 1800's making first-class locking technologies.  They are the largest provider of access control products in the world.

    GoKeyless™ is a factory trained and authorized dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Audit Trail, Double-Sided, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 1 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Mortise
    Brand E-Plex Wireless
    E-Plex

    Door requirements

    Door Handing Non-Handed
    Battery Life 100,000 Cycles
    Door Prep Mortise, Through-Bolt Hole(s)

    Security

    Code Length 4 to 8 Digits
    Code Capacity 3,000
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Inside Dimensions ["8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in."]
    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 8 7/8 (H) x 3 3/8 (W) x 3 13/16 (D) in.
    Weight 15.7 lbs
