  • Trilogy T3 DL3200

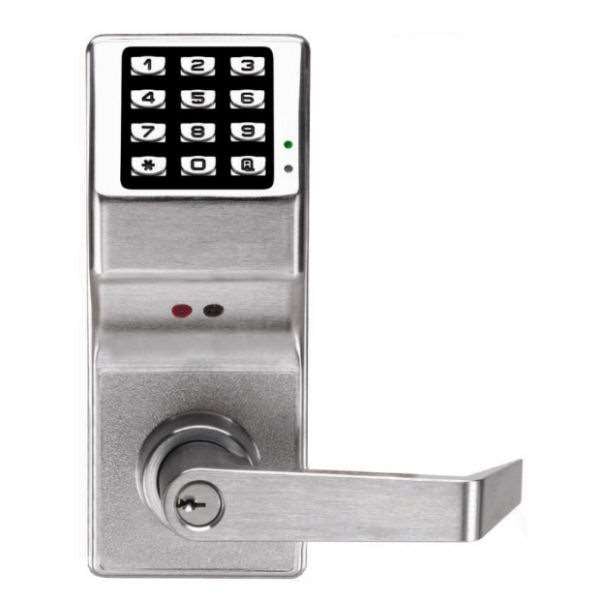

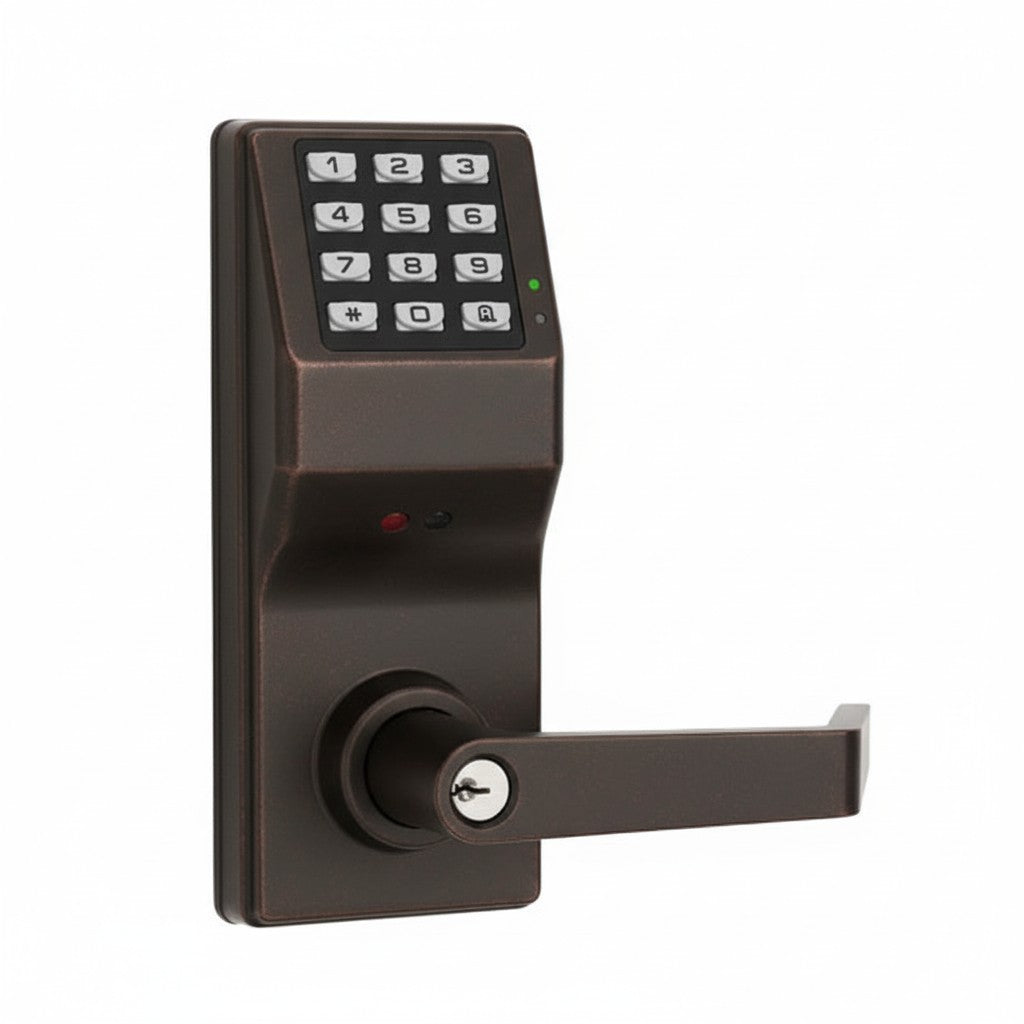

    Industrial Grade High Capacity Digital Lock

    SKU: DL3200/26D

    Alarm Lock Trilogy



    Take control of your security like a pro. The Trilogy T3 DL3200 keeps doors locked and you never locked out. Manage this clever lock at the keypad or through software on your trusty laptop or desktop PC. Benefit from advanced features such as timed access, entry tracking, and efficient user management, empowering your organization to operate at its peak performance.

    Direct replacement for discontinued Trilogy DL2800

    Finish

    Quantity left : -3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $130.77

    GK Care Technical Support

    Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & Programming

    Let us do the work for you. We get you up and running. Read More

    • Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
    • Weather rated to endure the elements
    • Supports up to 2000 users with 3-6 digit PIN codes, including:  Master, Manager, Supervisor and Basic Users
    • Vandal-resistant construction with an all metal keypad.  Rugged clutch mechanism insures long life & durability
    • For the EASIEST setup of your lock, and to have access to the more advanced programming features we recommend using your laptop or desktop computer.  You will need the PC interface cables for using a laptop.  When using a desktop PC be sure to get the DTM-III module (requires PC interface cables) to transfer your user data to the lock (cables and DTM available at checkout)
    • Battery Powered; 5 AA included, low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
    • 500 Timed Schedule capacity, including 4 “quick schedules” for programming the 4 most common time schedules in one step
    • First manager in scheduling – solves the snow day issue for schools (“First Person In” stops unauthorized persons from gaining access to doors set on timed auto-unlock)
    • Weatherproof performance
    • Choose from 3 architectural finishes; satin chrome (US26D) ships same day before 3pm EST.  Premium finishes may be subject to lead time
    • Times entry allowance from 5-15 seconds
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail with Time/Date Stamp for a printable record of all electronic activity
    • Real-time clock allows logging of events to within 1 second of accuracy
    • Relay may be programmed to energize when one or more selected events occur
    • 4 Time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
    • 40,000 Event audit trail record storage
    • New!  Remote Release Kit for ‘Buzz-In’
    • Easy to install.  Retrofits most cylindrical locksets and digital locks
    • Key override; includes standard cylinder with a 6-Pin, solid brass, Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • Keypad:  All metal, 12 button.  All functions programmable through keypad/software
    • Warranty:  2-year manufacturer

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The Trilogy DL3200 shifts your access control into high gear with keyless, always locked, never locked out security, rich functionality like timed lock/unlock, entry tracking, and the ability to quickly add and delete users.  Managing the lock is done by fingertip at the lock’s keypad, or by using software on your laptop or desktop PC.  When using your laptop you need the computer connecting cables. (sold separately at checkout)  A copy of the software CD is included with purchase of cables.  When you want to use your desktop PC, be sure to order the DTM-III hand held programming module.  (DTM-III requires computer connecting cables)  The software is where you establish your access schedules, and review who entered and when.  Need to establish access privileges?  Done.  Simply use the built-in multi-level programming functions to create your group or individual user codes, master and management codes, passage codes, and emergency or service codes.  Your T3 electronic lock will play a vital role in keeping your organization operating at peak performance.  “What about installing it, is it easy?”  Glad you asked!  It is, you can put it in yourself in the same amount of time it takes you to get through your morning email.

    Hospitals, Schools, Restaurants, Movie Theaters, Airports, Retail, Offices, Pharmacies, Gates

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome, Duronodic, Polished Brass
    Keyway Schlage SC1
    Lock Features Old Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 100,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Fire Rating UL 3 hr. Latch

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 10 lbs

    TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
    *Basic email support only. Additional support time available for a fee.

    You are not comparing apples to apples when shopping for Trilogy locks online.

    GoKeyless is a full service company and backs up its sales support with product and technical support.

    What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

    In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

    Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

    Technical Support Hours: M-F 9am-5pm EST
