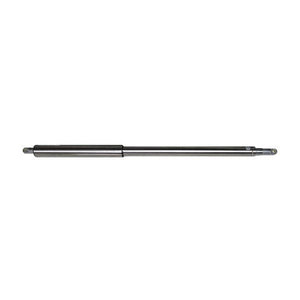

Lockey TB600
Extra Heavy-Duty Commercial Gate Closer (250lb Max)
$320.66 – $526.22
Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!
Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

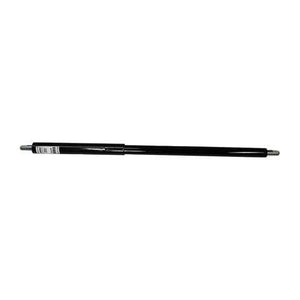

- Turtle Back Hydraulic Gate Closer
- Compatible to Kant Slam gate closers and with updated componentry for better results
- Easy, Gentle, Smooth Self-Closing of Gates
- Simple, DIY Fitting
- Does Not Slam Gates, Unlike Normal Closing Springs
- Use On Timber, Metal, Vinyl, Any Material Small or Large Gates Under 250lbs. and 72″ or Less In Width
- Not compatible with gates less than 30 inches wide
- TB600 can be mounted on chain link gates with the TB-LINX, sold separately
- Hydraulically Controlled Regulated Closing
- No Risk of Mal-adjustment or Tampering with Closing Speed Adjustment After Gate Closer Is Fitted
- Fits Left and Right Swing Gates
- Installs at Top, Bottom, Side, or Middle for Unmatched Mounting Versatility
- 100° Degree Maximum Opening Angle; As with Most Gate Closers, a Mechanical Stop Is Recommended to Restrict the Gate Opening Angle
- Ample Force Supplied at Latching Point
- Mounting Brackets, Fitting Bar, and Instructions All Included
- Post Bracket — You can mount to post with as little as 1-1/4″ of flat surface. You can even mount the post bracket to a round post by using something similar to a muffler clamp
- Weather Rated: Gate Closer Won’t Fade, Rust, or Discolor
- 1 Year manufacturer warranty: To retain product warranty & restrict gate opening angle, a gate stop must be installed
Gate Closer | 36″ Gate | 48″ Gate | 60″ Gate | Constant Closing Pressure | Approximate Width | Approximate Weight |
Added Opening Force | ||||||
No Closer | 3/4 lb. | 1/2 lb. | 1/4 lb. | 0 lbs. | ||
TB-200 | 6 lbs. | 4 lbs. | 3 lbs. | 45 lbs. | 36-52 Inches | 50-125 lbs. |
TB-400 | 10 lbs. | 8 lbs. | 6 lbs. | 90 lbs. | 40-64 Inches | 75-175 lbs. |
TB-600 | 13 lbs. | 10 lbs. | 8 lbs. | 135 lbs. | 44-72 Inches | 150-250 lbs. |
Added Force at 45° Open | Also available: TB-200 Stainless Steel | |||||
TB-200 | 7 lbs. | 5 lbs. | 4.5 lbs. | |||
TB-400 | 13 lbs. | 9.5 lbs. | 8 lbs. | |||
TB-600 | 18.5 lbs. | 13.5 lbs. | 12 lbs. |
Dimensions | 1 1/2 (D) x 1 1/2 (H) x 31 (L) in. |
---|---|
Max. Gate Weight | 250 lb. |
Max. Gate Width | 72 in. |
Opening Pressure | Appx. 8 – 18 lbs |
Hinge Arrangement | In-line, Offset |
Gate Material | Chain Link, Steel, Vinyl, Wood |
Construction | Steel |
Outside Operating Temperature Range | 15F to +122F |
Color | Black |
Manufacturer | Lockey |
Brand | Lockey |
Finish | Stainless Steel, Black Painted |
Weight | 6 lbs |
Warranty | 1 Year Manufacturer |
Share your thoughts!
Let us know what you think...
What others are saying
Customer Questions & Answers
- A
Unfortunately, there are too many variables associated with these gate closers including opening pressure that will not meet the ADA compliance. Please contact our gate specialist to have them assist you in choosing the best products for your gate needs. You can reach them at 937-247-9327 opt. 1.
Brophy College Preparatory (verified owner) –
It works well and was easy to install.
(0) (0) Watch Unwatch
Bill Baker –
It works well and was easy to install.
(0) (0) Watch Unwatch
Bill Cartwright (verified owner) –
I think it’s going to be a very good product that I ordered the wrong one and I’m having issues sending the one I ordered back in ordering a new one please contact me.
(0) (0) Watch Unwatch
David, St. Petersburg, FL –
I have a board on board PT’ 6′ high x 5′ wide heavy duty gate at my cafe. I needed a closer that wood stop the gate from blowing open or slamming closed. I bought the 250lb closer & it is almost to strong. The gate opens & closes like a nice and slow. My 5 year old has a hard time pushing it if that gives you an idea on how firm this closer is. I love it. Well worth the money. I could have used the next size down.
(0) (0) Watch Unwatch
Mark, Masamori Parks Project Lead City of Sunnyvale –
Seems to be working good. Very easy to install. Probably could have used the lighter model. We’ll see how it holds up….Thanks
(0) (0) Watch Unwatch
