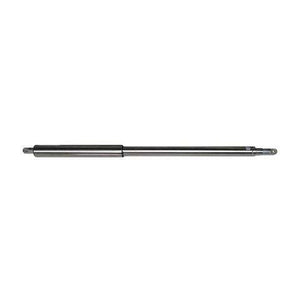

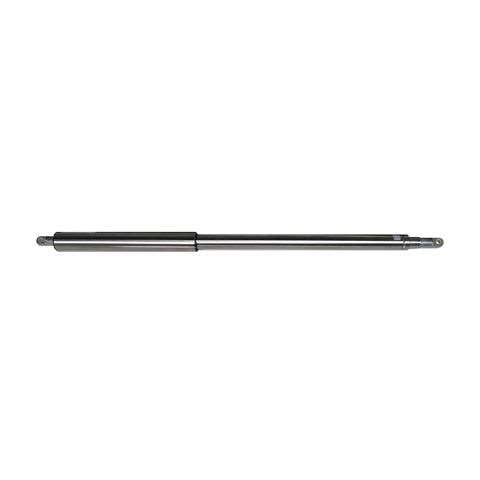

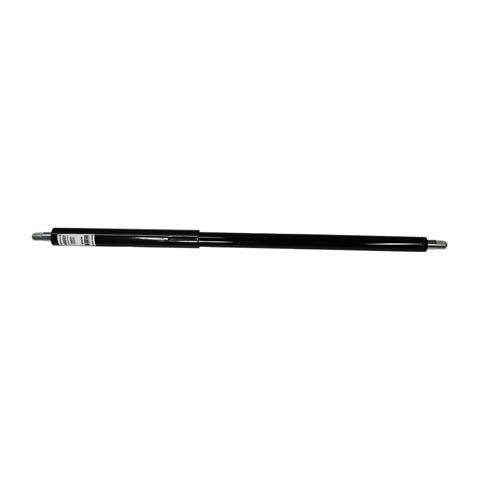

    Hydraulic Commercial Gate Closer (175lb Max)

    SKU: TB400SS

    Lockey



    Finish

    Quantity left : 1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $105.24

    • Turtle Back Hydraulic Gate Closer
    • Compatible to Kant Slam gate closers and with updated componentry for better results
    • Easy, Gentle, Smooth Self-Closing of Gates
    • Simple, DIY Fitting
    • Does Not Slam Gates, Unlike Normal Closing Springs
    • Use On Timber, Metal, Vinyl, Any Material Small or Large Gates Under 175lbs. and 64" or Less In Width (72" if gate is light-duty)
    • Not compatible with gates less than 40" wide
    • TB400 can be mounted on chain link gates with the TB-LINX, sold separately
    • Hydraulically Controlled Regulated Closing
    • No Risk of Mal-adjustment or Tampering with Closing Speed Adjustment After Gate Closer Is Fitted
    • Fits Left and Right Swing Gates
    • Installs at Top, Bottom, Side, or Middle for Unmatched Mounting Versatility
    • 100° Degree Maximum Opening Angle; As with Most Gate Closers, a Mechanical Stop Is Recommended to Restrict the Gate Opening Angle
    • Ample Force Supplied at Latching Point
    • Opening Pressure: Appx. 6-12 lbs.
    • Mounting Brackets, Fitting Bar, and Instructions All Included
    • Post Bracket — You can mount to post with as little as 1-1/4" of flat surface. You can even mount the post bracket to a round post by using something similar to a muffler clamp
    • Weather Rated: Gate Closer Won't Fade, Rust, or Discolor
    • 1 Year manufacturer warranty: To retain product warranty & restrict gate opening angle, a gate stop must be installed
    Gate Closer 36" Gate 48" Gate 60" Gate

    Constant ClosingPressure

    Approximate Width Approximate Weight
    Added Opening Force
    No Closer 3/4 lb. 1/2 lb. 1/4 lb. 0 lbs.
    TB-200 6 lbs. 4 lbs. 3 lbs. 45 lbs. 36-52 Inches 50-125 lbs.
    TB-400 10 lbs. 8 lbs. 6 lbs. 90 lbs. 40-64 Inches 75-175 lbs.
    TB-600 13 lbs. 10 lbs. 8 lbs. 135 lbs. 44-72 Inches 150-250 lbs.
    Added Force at 45° Open Also available:

    TB-200 Stainless Steel
    TB-400 Stainless Steel
    TB-600 Stainless Steel

    TB-200 7 lbs. 5 lbs. 4.5 lbs.
    TB-400 13 lbs. 9.5 lbs. 8 lbs.
    TB-600 18.5 lbs. 13.5 lbs. 12 lbs.

    GoKeyless is a trained and authorized Lockey® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

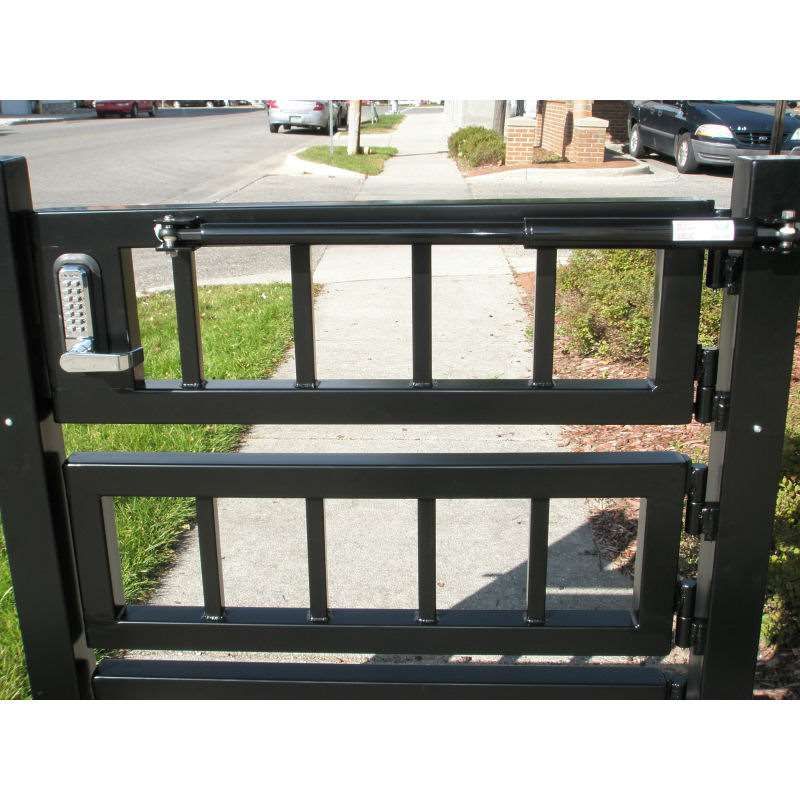

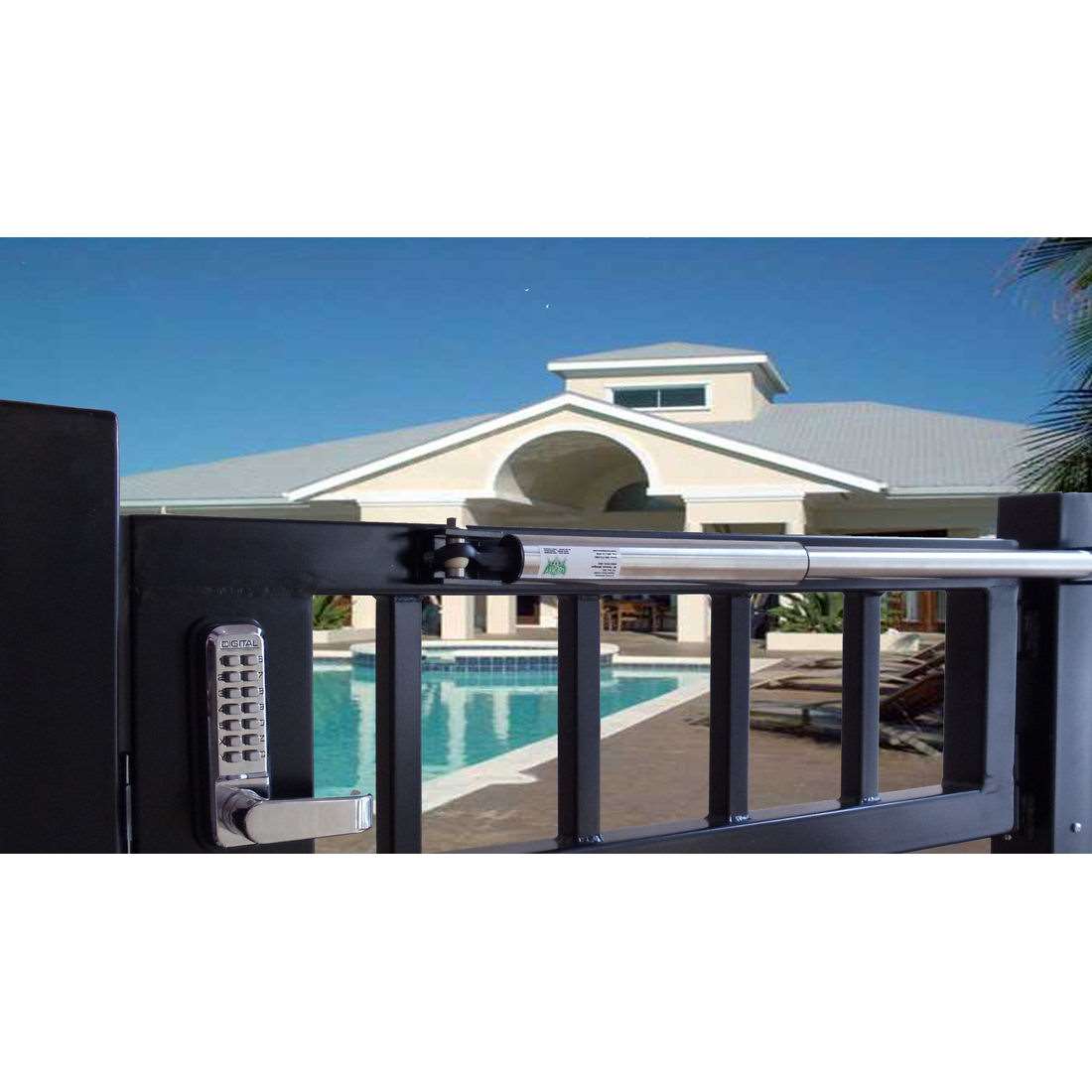

    Firm, Quiet Hydraulic Action for Easy Closing of Pedestrian Gates Marry the TB400 to your gate and you'll never see it slam shut again.  Replicating many of the design and functionality features of the Kant Slam gate closer, the Turtle Back does it one better with improved seals and a higher performing cylinder.  With a pre-set closing speed delivering 8 seconds of controlled close, the TB400 Turtle Back automatic gate closer has emerged onto the market as an economical and reliable device to secure pedestrian gate arrangements up to 64" in width (72" if gate is light-duty), and 175lbs.  Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates, highlight a few of the many places this gate closer can come in handy.  We also recommend the TB400 automatic gate closer for gates which lock by maglock or electric strike because of its steady and stable closing action.  Instead of having to peek around the corner, look out a window, or make a quick run to the gate to ensure it has remained closed, the TB 400 does it for you, letting you focus uninterrupted on what you were doing. Many of our clients use the TB400 in conjunction with the Lockey double sided 2835DC2210DC2830DC1150DC keyless gate locks, and Combi-Bolt CB2000. This powerful hardware combination provides secured, self-closing access control with the convenience of keyless entry.

    GoKeyless™ is a trained and authorized Lockey® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer Lockey
    Color Black
    Finish Stainless Steel, Black Painted
    Gate Material Chain Link, Steel, Vinyl, Wood
    Warranty 1 Year Manufacturer
    Brand Lockey

    Door requirements

    Security

    Dimensions

    Dimensions 1 1/2 (D) x 1 1/2 (H) x 31 (L) in.
    Max Gate Weight 175 lb.
    Max Gate Width 64 in.
    Weight 6 lbs
